Aqara H2 EU Shutter Switch Thread / Zigbee

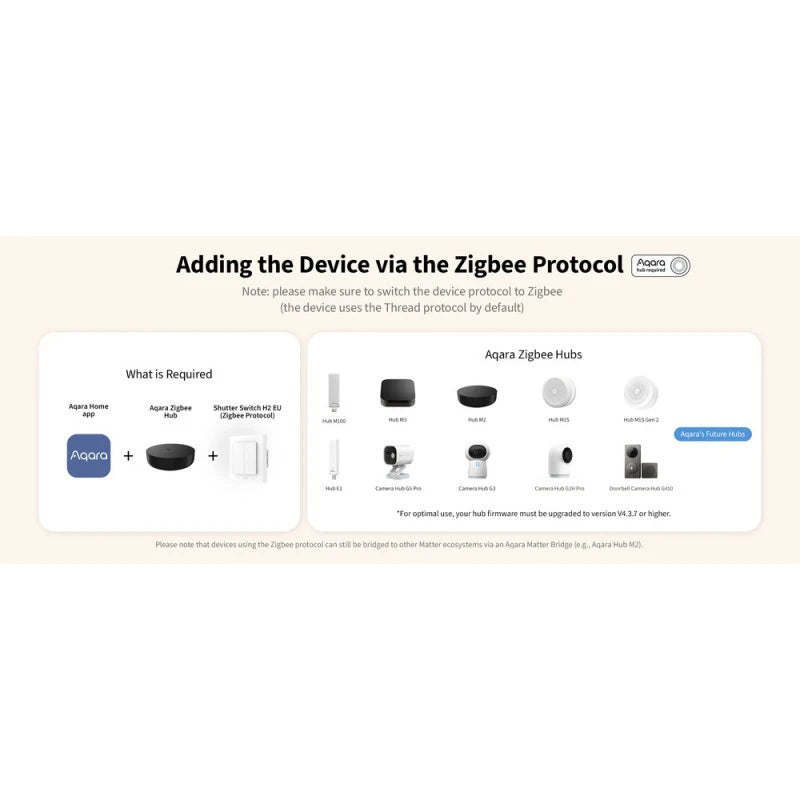

The Aqara H2 EU shutter switch enables smart and remote control of your roller shutters. Supporting both Thread and Zigbee protocols, it integrates seamlessly with Matter ecosystems via Thread while also unlocking advanced Aqara features when used in Zigbee mode.

You can fine-tune shutter positioning directly from the switch, a mobile app, voice commands, schedules, or automated scenarios. This allows precise adjustment to manage natural light, airflow, and privacy according to your needs.

Advanced Control and Calibration

The device includes multiple calibration options to ensure accurate operation: automatic one-click calibration, manual custom calibration for precise stopping points, recalibration after power interruptions, and a full reset option. Two additional programmable wireless buttons let you trigger scenes or control other connected devices.

Designed in a standard 55 × 55 mm format, it fits easily into popular frame systems such as Gira System 55 and Merten M. Its subtle LED indicator activates only during use and can be disabled automatically at night for added comfort.

Product Features

  • Control opening, closing, and pausing of roller shutters
  • Accurate position adjustment for optimal comfort
  • Thread support for Matter integration
  • Zigbee compatibility with Aqara ecosystem features
  • Automatic one-click calibration
  • Custom calibration for precise control
  • Recalibration after power outages
  • Calibration reset function
  • Two programmable wireless buttons
  • Multiple press actions: single, double, and long press
  • Integration into automation scenes and schedules
  • Discreet LED with automatic night-time deactivation
  • Standard 55 × 55 mm design
  • Compatibility

  • Matter ecosystems via compatible Thread controllers
  • Aqara Zigbee hub
  • Gira System 55 frames
  • Merten M frames
  • Aqara Switch Frame H2 EU (sold separately)
  • Technical Specifications – Aqara H2 EU Shutter Switch

  • Model: DS-K02D / DS-K02E
  • Wireless protocols: Thread, Zigbee, Bluetooth
  • Dimensions: 86 × 86 × 45 mm
  • Power supply: 100–250 VAC, 50/60 Hz
  • Maximum current: 8 A
  • Thread frequency: 2405 – 2480 MHz
  • Thread max power: ≤ 13 dBm
  • Zigbee frequency: 2405 – 2480 MHz
  • Zigbee max power: ≤ 13 dBm
  • Bluetooth frequency: 2402 – 2480 MHz
  • Bluetooth max power: ≤ 13 dBm
  • Operating temperature: -10°C to 40°C
  • Operating humidity: 0 to 95% RH (non-condensing)
