FIBARO FGR-224 - Roller Shutter 4 Z-Wave 800 In-Wall Shutter Module

FIBARO FGR-224 - Roller Shutter 4 Z-Wave 800 In-Wall Shutter Module

€46,71 EUR
€46,71 EUR
Sale Sold out
Taxes included.
Buy on Domadoo
//

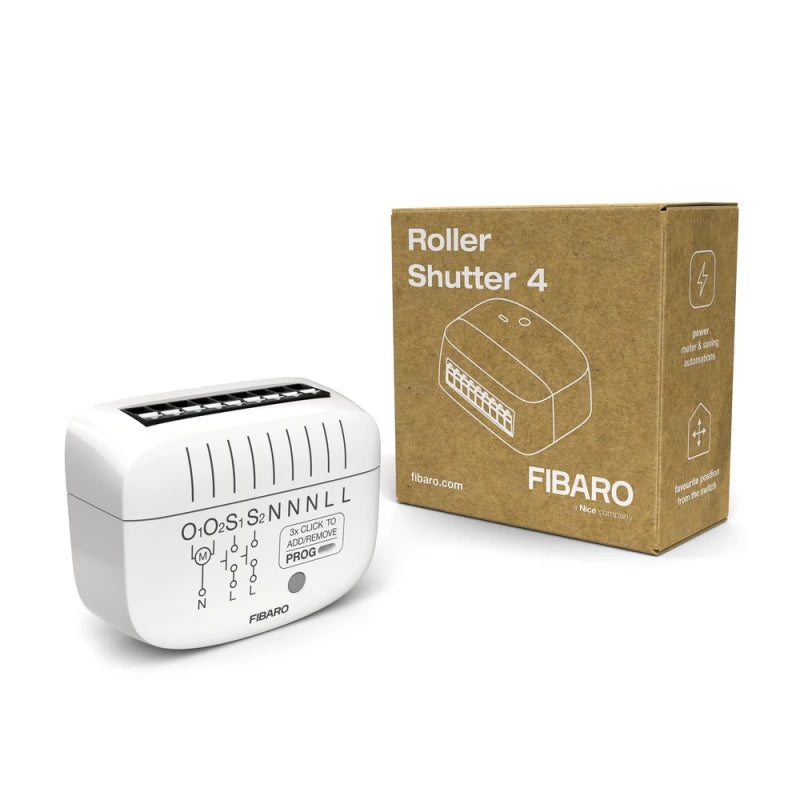

Fibaro Roller Shutter 4 (FGR-224)

The Fibaro Roller Shutter 4 is a Z-Wave 800 module designed to control motorized systems such as roller shutters, awnings, venetian blinds, curtains, and pergolas. It allows precise positioning of shutters and slats, ensuring optimal comfort and light management while also offering integrated energy monitoring.

The device can be controlled remotely via a Z-Wave network or locally using a connected wall switch. It supports various switch types, including momentary, toggle, and dedicated shutter switches, providing flexibility for different installations.

This new generation features an improved design focused on easier installation and usability. Additional inputs for live and neutral wires eliminate the need for external connectors, while plug-in terminals simplify wiring without requiring tools. The integrated bridge further reduces installation complexity and saves space inside the mounting box.

With its compact size, the module fits easily into standard flush-mounted boxes. It also includes additional connection wires, making installation faster and more convenient.

Powered by the Z-Wave 800 chip, the Roller Shutter 4 offers enhanced range, reliability, and security. It supports S0 and S2 encryption, ensuring safe communication within your smart home network. As a mains-powered device, it also acts as a signal repeater, improving overall network coverage.

Features

  • Control of shutters, blinds, awnings, curtains, and pergolas
  • Precise positioning of shutters and slats
  • Energy consumption monitoring
  • Z-Wave 800 Series chip for extended range
  • Supports S0 and S2 secure communication
  • Compatible with various switch types
  • Acts as Z-Wave signal repeater
  • Compact design for flush-mounted installation
  • Push-in connectors for quick wiring
  • Integrated bridge for simplified installation

    • Technical Specifications

  • Model: FGR-224
  • Power supply: 100–240V AC, 50/60 Hz
  • Current rating: 2A (inductive load, compensated)
  • Supported motor type: single-phase AC motors
  • Limit switches: required (electronic or mechanical)
  • Operating temperature: 0°C to 35°C
  • Installation: flush-mounted box Ø 50 mm, depth ≥ 60 mm
  • Radio protocol: Z-Wave (800 Series)
  • Frequency: 868.4 MHz
  • Range: up to 100 m outdoors, 30 m indoors
  • Dimensions: 46 x 36 x 19.9 mm
  • Certifications: RoHS 2011/65/EU, RED 2014/53/EU
