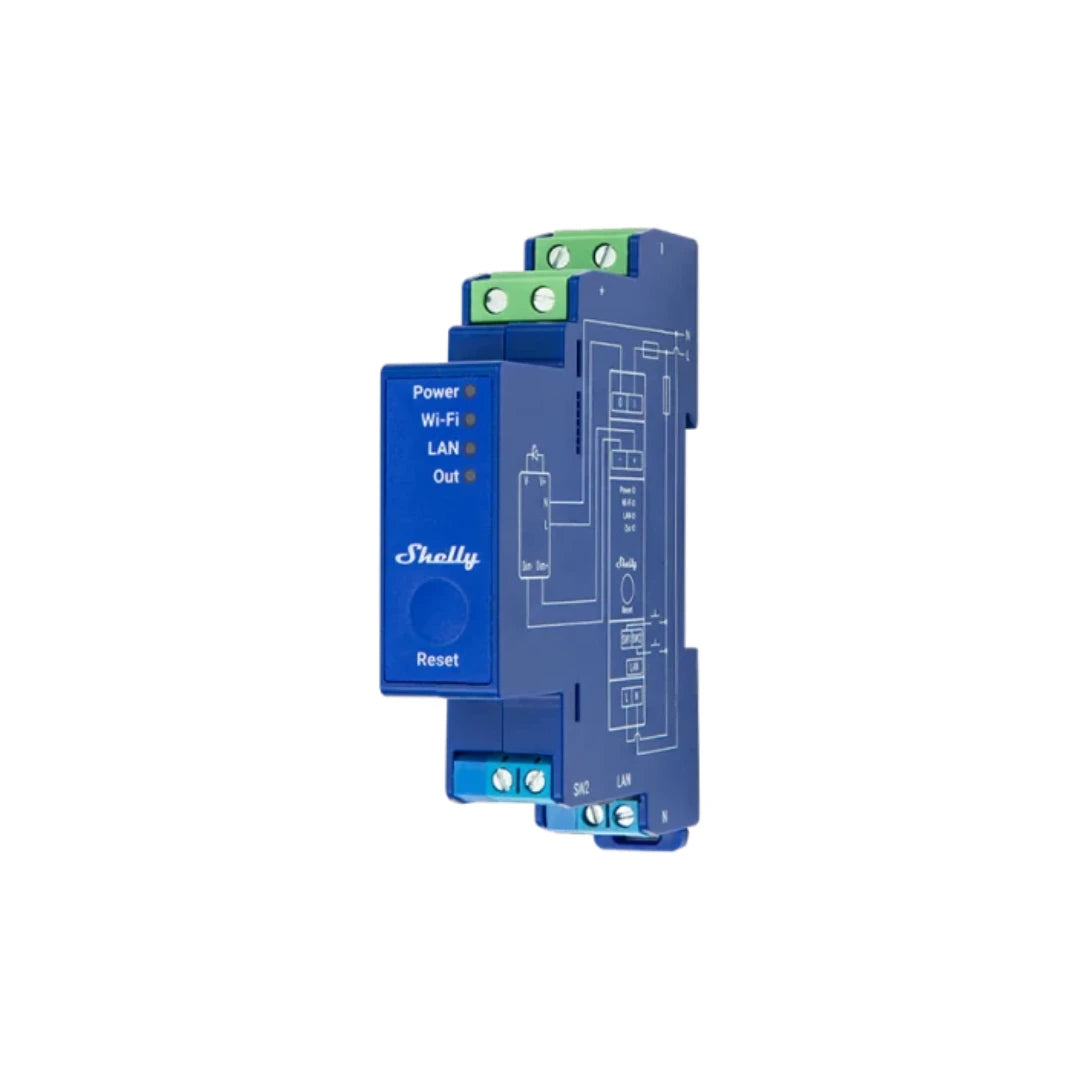

Shelly - Wi-Fi 0-10V DIN rail dimmer + power metering Shelly Pro Dimmer 0/1-10V PM

Shelly Pro Dimmer 0/1-10V PM – Smart DIN Rail Dimming Controller

The Shelly Pro Dimmer 0/1-10V PM is a professional-grade DIN rail dimming controller designed for precise remote management of lighting drivers. Compatible with 0-10V and 1-10V control systems, it enables seamless adjustment of lighting, motors, or valves through a smartphone, computer, or home automation platform. It can operate locally over Wi-Fi or LAN, or via cloud-based services for enhanced accessibility.

Reliable Multi-Connectivity

This device features LAN, Wi-Fi, and Bluetooth connectivity, ensuring stable and secure operation. Ethernet provides high reliability, while Wi-Fi offers flexibility, and both can operate simultaneously for backup purposes.

Accurate Dimming and Control

With its current sourcing design, the Shelly Pro Dimmer allows precise brightness adjustment of connected devices. It supports both single and dual-button switches, offering flexible manual control in addition to remote management.

Advanced Energy Monitoring

The integrated power measurement system delivers detailed insights into energy usage, including voltage, current, power consumption, and power factor. This enables better optimization and monitoring of your electrical installations.

Smart Automation Features

Create personalized schedules based on your daily routine or automate lighting according to sunrise and sunset. The device also supports smart scenes, allowing it to interact with other Shelly devices for advanced automation scenarios.

Professional Features and Flexibility

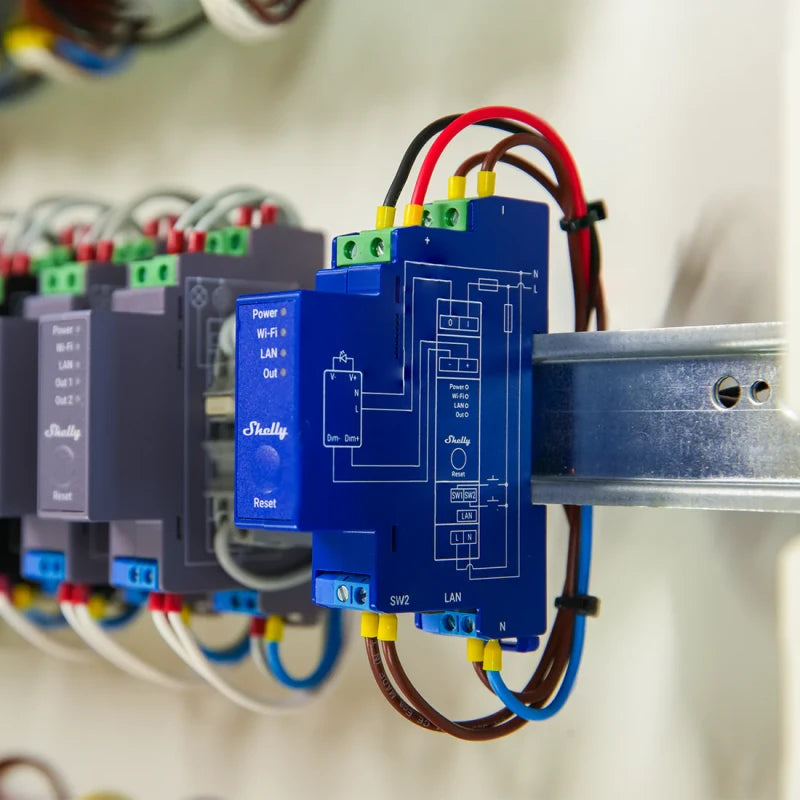

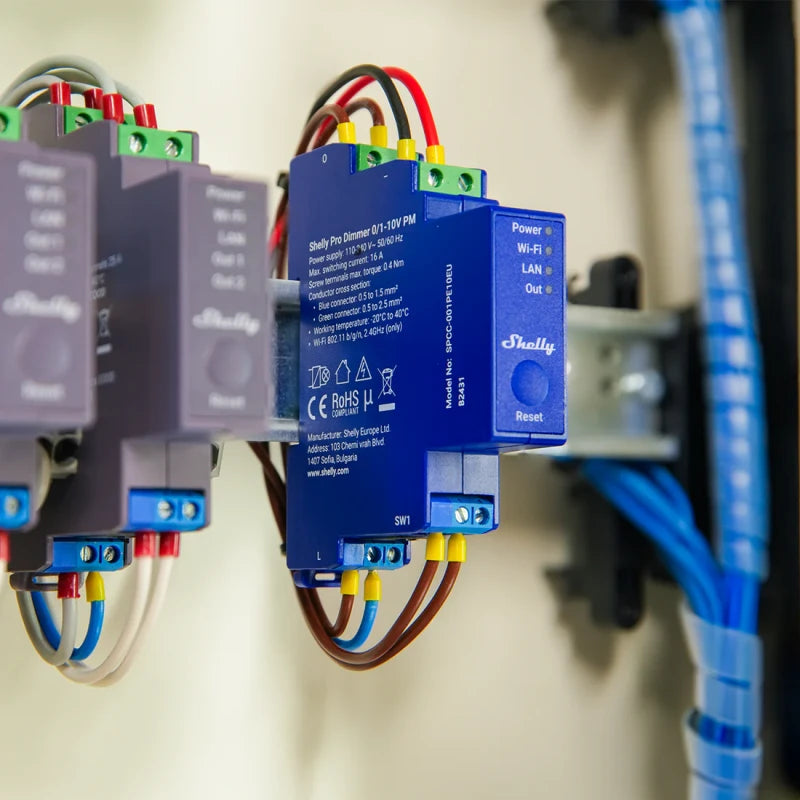

• DIN rail mounting for electrical panels
• Supports 0-10V and 1-10V drivers (lighting, motors, valves)
• Night mode for predefined brightness levels
• Auto on/off timers and advanced scheduling
• Custom scripting for automation logic
• Virtual components for extended functionality
• Wi-Fi range extender and BLE gateway capabilities
• KNXnet/IP communication support

Safety and Protection

The Shelly Pro Dimmer includes protection against overcurrent, overvoltage, and overpower conditions. An internal temperature sensor ensures safe operation under varying conditions.

Main Features

• Remote dimming control via app or automation system
• LAN, Wi-Fi, and Bluetooth connectivity
• Precise energy monitoring and reporting
• Compatible with physical switches (single or dual button)
• No hub required for operation
• Integration with Alexa, Home Assistant, and other platforms

Technical Specifications – Shelly Pro Dimmer 0/1-10V PM

• Dimensions: 94 × 19 × 69 mm (±0.5 mm)
• Weight: 70 g
• Mounting: DIN rail
• Power supply: 110–240 V~
• Power consumption: < 3 W
• Max switching voltage: 240 V~
• Max switching current: 16 A
• Control type: 0-10V / 1-10V (current sourcing)
• Operating temperature: -20°C to 40°C
• Humidity: 30% to 70% RH

Measurement Capabilities

• Voltage, current, and power monitoring
• Active and apparent energy measurement
• Power factor and reactive energy tracking

Connectivity

• Wi-Fi: 802.11 b/g/n (2.4 GHz), up to 30 m indoors / 50 m outdoors
• Bluetooth: 4.2, up to 10 m indoors / 30 m outdoors
• Ethernet (LAN) for stable wired connection

Hardware and Software

• CPU: ESP32-D0WDQ6
• Flash memory: 8 MB
• Supports scripting, MQTT, webhooks, and advanced scheduling
• Up to 20 schedules and 20 webhooks (5 URLs per hook)
