Shelly - Z-Wave+ 800 Long Range Micromodule Switch 8A

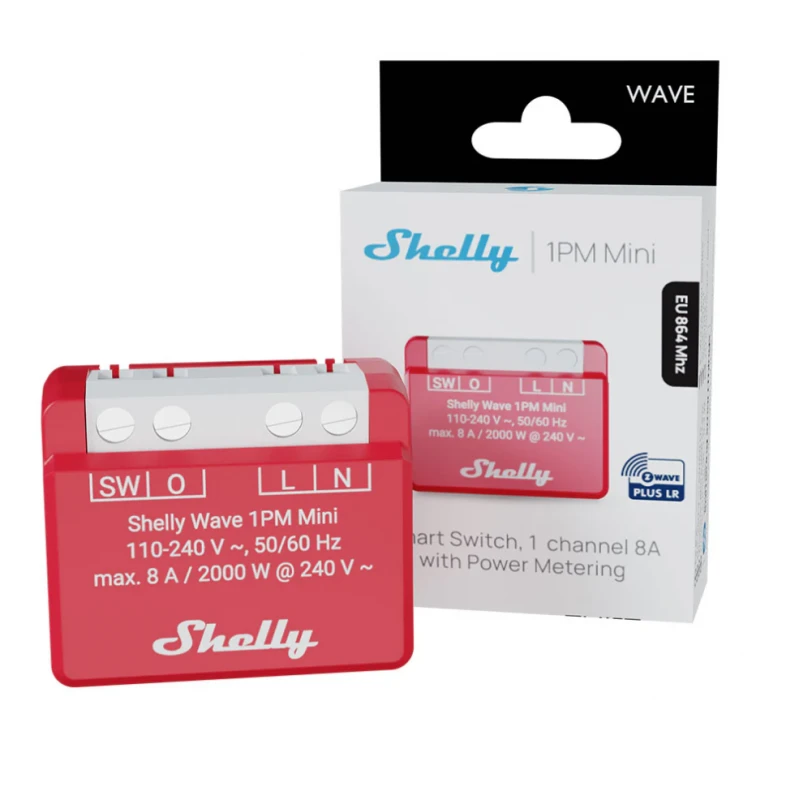

SHELLY Wave 1 PM Mini LR Z-Wave 800 Micromodule Switch

The Shelly Wave 1 PM Mini LR is an ultra-compact Z-Wave smart switch designed to control electrical devices and lighting while monitoring energy consumption. Featuring Z-Wave 800 Long Range technology, it ensures reliable connectivity and extended coverage for modern smart home installations.

Compact Design with Powerful Features

As one of the smallest Z-Wave micromodules available, it fits easily into most flush-mounted boxes. Despite its compact size, it delivers robust performance for controlling devices up to 8 A.

Smart Control and Energy Monitoring

Control your appliances remotely via your Z-Wave hub and track real-time power consumption. This helps optimise energy usage and improve efficiency across your home.

Z-Wave 800 and Long Range Connectivity

With Z-Wave 800 Series and Long Range support, the module offers communication up to 1 km in open field. It also supports standard mesh networking for reliable indoor coverage.

Flexible Installation and Use

The module can be connected to a switch or push button, allowing manual and remote control. It supports association groups for direct communication with other Z-Wave devices, enabling faster automation.

Advanced Safety and Protection

Built-in protections against overheating, overcurrent, and overvoltage ensure safe operation. The device also supports automatic state restoration after power outages.

Easy Setup and Secure Communication

SmartStart allows quick inclusion via QR code, while S2 security with 2FA authentication ensures encrypted and secure communication. OTA updates keep the device up to date.

Key Features

• ON/OFF control for devices up to 8 A (2000 W)
• Real-time energy consumption monitoring
• Z-Wave 800 Series with Long Range support
• Range up to 1 km (open field)
• Ultra-compact design for flush mounting
• Compatible with switches and push buttons
• SmartStart pairing and OTA updates
• Advanced safety protections
• Low power consumption (< 0.3 W)

Technical Specifications

• Power supply: 110–240 V AC, 50/60 Hz
• Maximum current: 8 A
• Maximum power: 2000 W
• Power consumption: < 0.3 W
• Frequencies: 864 MHz (ZWLR), 868.4 MHz (Z-Wave Plus)
• Range: up to 40 m indoors (mesh), up to 1000 m outdoors (ZWLR)
• CPU: Z-Wave S800
• Dimensions: 29 × 35 × 16 mm
• Weight: 18 g
• Operating temperature: -20°C to 40°C
