Lixee - Zigbee USB dongle ZIGATE (Jeedom, Eedomus, Domoticz)

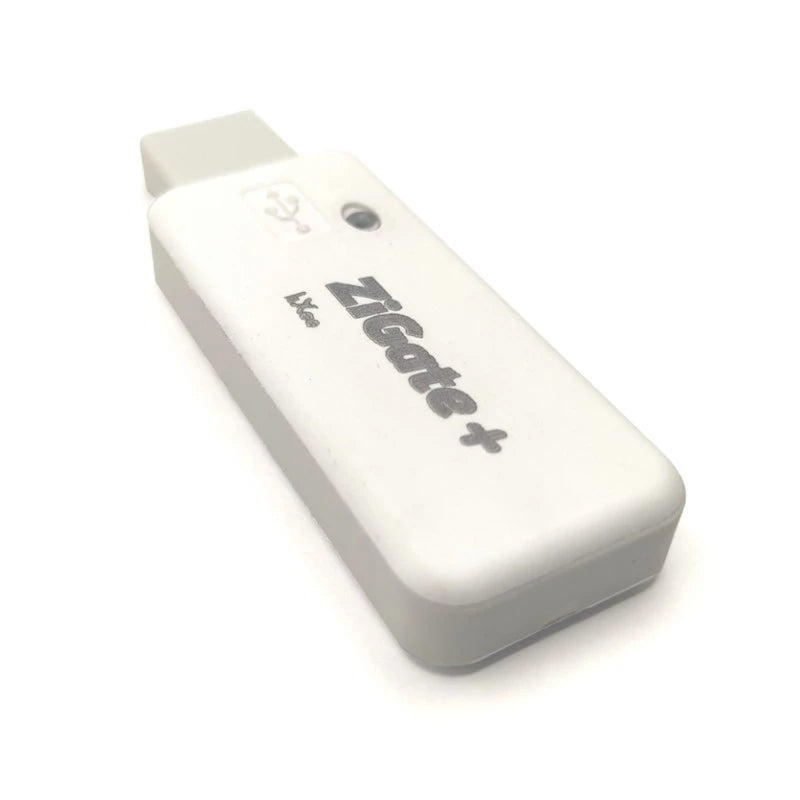

ZiGate+ V2 USB: Universal Zigbee Gateway

The ZiGate+ V2 is a next-generation universal USB Zigbee gateway designed to integrate a wide range of Zigbee radio devices into your smart home system. Modular, powerful, and open-source friendly, it offers a flexible solution that adapts to your evolving home automation needs.

With a redesigned form factor and an upgraded chipset, the ZiGate+ can manage up to 200 Zigbee devices, supporting both Zigbee HA 1.2 and Zigbee 3.0 protocols. Whether you’re starting fresh or upgrading from the original ZiGate V1, this new version maintains the same communication protocol with your smart home hub, ensuring full backward compatibility.

Main Features

• Universal Zigbee controller supporting a wide range of devices
• Compatible with Zigbee HA 1.2 and Zigbee 3.0 standards
• Up to 200 connected Zigbee devices
• Compatible with major brands: Xiaomi, Philips Hue, Legrand, Ikea, Osram, Profalux, and more
• Open-source and developer-friendly platform
• Supports popular home automation systems: Jeedom, Home Assistant, Domoticz, eedomus, etc.
• Mesh network compatible for full-home coverage including outbuildings and gardens

Technical Improvements: ZiGate V1 vs ZiGate+ V2

• Dimensions: 80x30x15 mm → 70x25x10 mm
• Receiver sensitivity: -100 dBm → -100 dBm (unchanged)
• SRAM: 32 KB → 152 KB
• Flash memory: 256 KB → 640 KB
• EEPROM: 4 KB → 128 KB
• Processor speed: 32 MHz → 48 MHz
• Low power consumption: + → +++
• WiFi coexistence: + → +++

These hardware enhancements make the ZiGate+ a future-ready solution, capable of adapting to new services and expanding Zigbee functionalities.

Technical Specifications

• Power supply: USB (5 VDC)
• Frequency: 2.4 GHz (Zigbee)
• Interface: USB
• Operating temperature: 0°C to 60°C
• Dimensions: 72 × 25 × 10 mm
• Weight: 15 g
