Shelly - Wifi, Zigbee and Matter module (dry contact) 8A Shelly 1 Mini Gen4

Shelly 1 Mini Gen4 - Smart Switch Micromodule with Dry Contact (8A)

The Shelly 1 Mini Gen4 is a compact next-generation micromodule designed to control lighting circuits and appliances up to 8A. With multi-protocol connectivity (Wi-Fi, ZigBee, Bluetooth, and Matter), it integrates effortlessly into any smart home system. Featuring dry contacts, it provides maximum flexibility for controlling contactors and other electrical equipment.

Main Functions

• Multi-protocol connectivity: Wi-Fi, ZigBee, Bluetooth, and Matter
• Controls loads up to 8A at 240 V AC or 5A at 30 V DC
• Potential-free dry contacts for flexible integration
• Supports local programming, scenes, and smart actions
• Wi-Fi and ZigBee repeater function + built-in Bluetooth gateway
• Advanced features: scripting, HTTPS, MQTT(S), WebSockets
• Direct remote control via Shelly Smart Control app, no hub required
• Compatible with major smart platforms and voice assistants

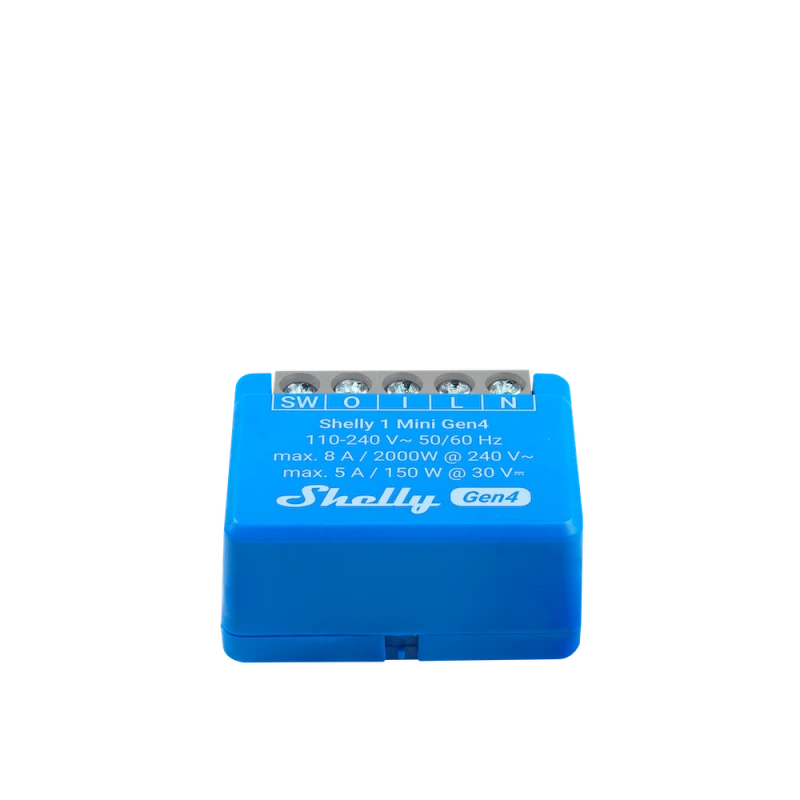

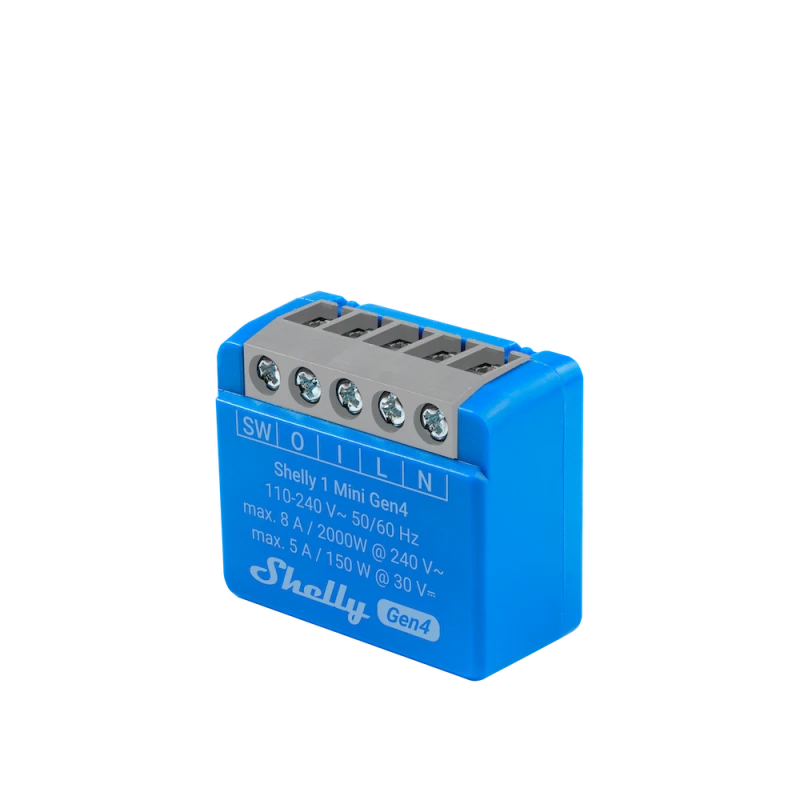

Technical Specifications - Shelly 1 Mini Gen4

• Reference: SHELLY1MINIGEN4
• Power Supply: 110–240 V~ / 30 V⎓ max
• Max Power: 2000 W (240 V~) / 150 W (30 V⎓)
• Max Current: 8A (240 V~) / 5A (30 V⎓)
• Dimensions: 29 × 34 × 16 mm
• Weight: 19 g
• Operating Temperature: -20°C to +40°C
• Connectivity: Wi-Fi (802.11 b/g/n/ax), ZigBee 3.0, Bluetooth 5.0
• Processor: ESP-Shelly-C68F with 8 MB Flash

Compatibility

• Amazon Alexa
• Google Home
• Samsung SmartThings
• Apple HomeKit
• Home Assistant
• Jeedom
• Zigbee2MQTT
• HTTP API, MQTT(S), WebHooks

Certifications

• CE
• RoHS
