Smlight - Dongle Ethernet POE Zigbee 3.0 CC2674P10 SLZB-06P10 (Zigbee2mqtt a ZHA)

SMLIGHT - SLZB-06P10 Ethernet POE Zigbee 3.0 Dongle (Zigbee2mqtt and ZHA)

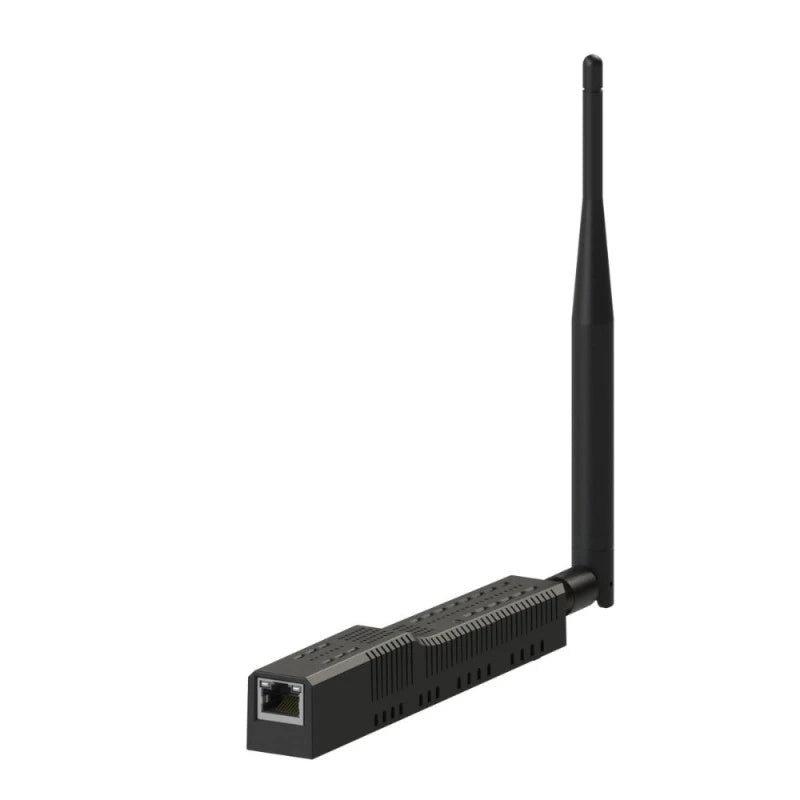

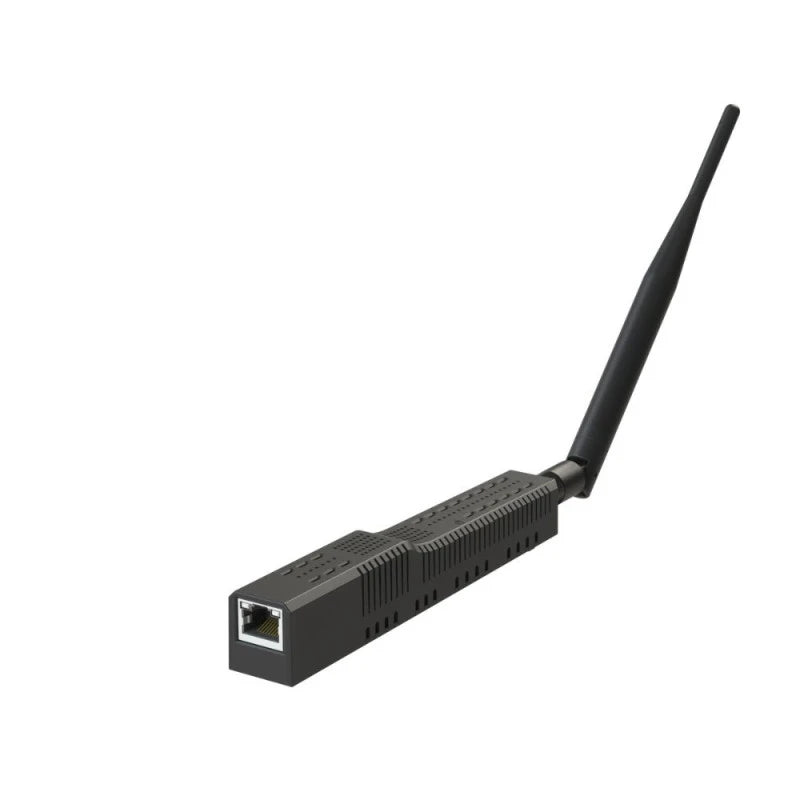

The SLZB-06P10 USB dongle ensures Zigbee compatibility through Ethernet, USB, and WiFi interfaces, while also incorporating POE functionality. Pre-configured for immediate use, it operates as a gateway for the Zigbee 3.0 protocol and is compatible with several open-source home automation platforms such as Zigbee2MQTT, Home Assistant, and ZHA.

This device can operate in LAN or USB mode, with easy configuration via internal software or a physical button. It supports multiple Zigbee coordinators on a server, simplifying coverage expansion across various zones or buildings while remaining connected to a single Home Assistant instance.

SLZB-06P10 Dongle compatible with Jeedom and Home Assistant

The device can be powered either via POE or through a USB Type-C connector. A microUSB-to-Type-C adapter is included for added convenience. Thanks to the Zigbee CC26574P10 SoC, the device offers a power boost of +20 dB and features a built-in antenna with an additional +5 dB gain.

Remote updates are possible for the CC26574P10 and ESP32 components, eliminating the need for physical access to update the device. Additionally, the ESP32 module supports direct USB flashing with an automatic flashing function, requiring only a Type-C cable to initiate the process.

Features of the SMLIGHT SLZB-06P10 Dongle

• Zigbee coordinator to pair all your Zigbee devices.
• Option to position the SMLIGHT dongle away from your home automation box, anywhere in your home via Ethernet, to optimize your Zigbee network.
• Router mode available to use this dongle as a signal repeater.

Technical Specifications of the SMLIGHT SLZB-06P10

• Main Zigbee 3.0 chip: CC26574P10 (Texas Instruments)
• Main control chip: ESP32 (Espressif)
• USB/UART converter: CP2102
• Ethernet network: LAN8720
• Output gain: +20dB
• Antenna gain: +5dB
• Ethernet support: Yes
• Wi-Fi support: Yes
• POE support: Yes
• POE standard: IFFF802.3af (15W)
• USB Type-C control: Yes
• Automatic ESP32 startup: Yes, via DTR/RST
• Pre-flashed: Yes, Zigbee and ESP
• Zigbee 3.0 coordinator mode: Yes
• Zigbee 3.0 router mode: Yes
• Zigbee to Ethernet: Yes
• Zigbee to USB: Yes
• Three modes: Zigbee to Ethernet, WiFi, or USB
• Available in 15 languages
• Supports Wireguard VPN for Home Assistant
• Live Zigbee and core updates, with scheduled automatic updates
• Secure connection with whitelist support
• Advanced settings and controls
• Adjustable interface with light/dark modes
• Built-in help for all settings
• Suitable for personal and professional use
