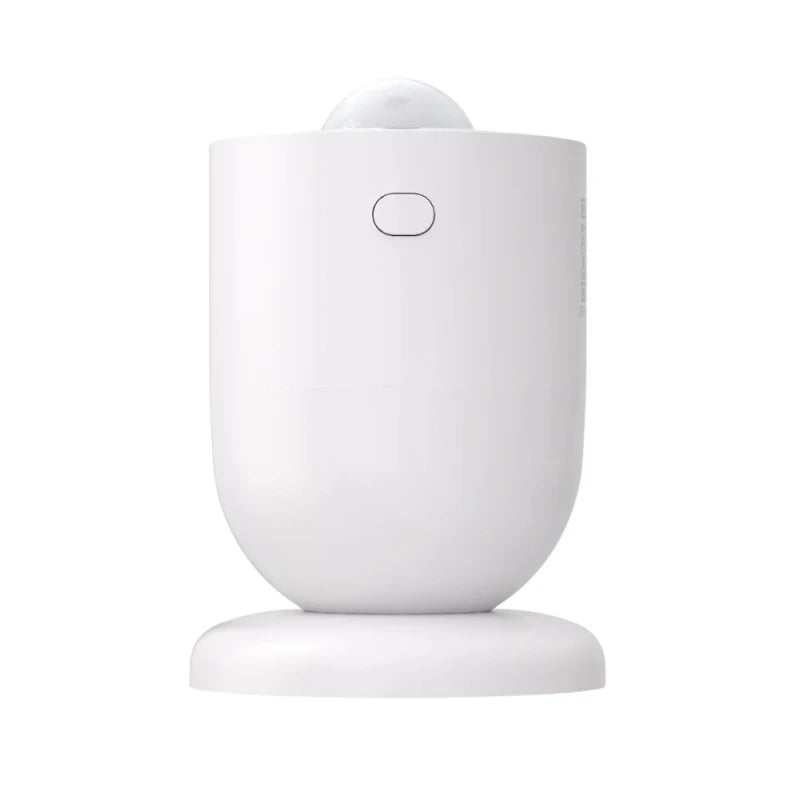

The Sonoff SenseGuard Motion Gen2 is a Zigbee PIR motion sensor designed to provide smarter and more energy-efficient home automation. It delivers instant motion detection in less than 3 seconds and features an adjustable detection duration from 5 to 60 seconds to reduce unnecessary triggers and optimize automations.

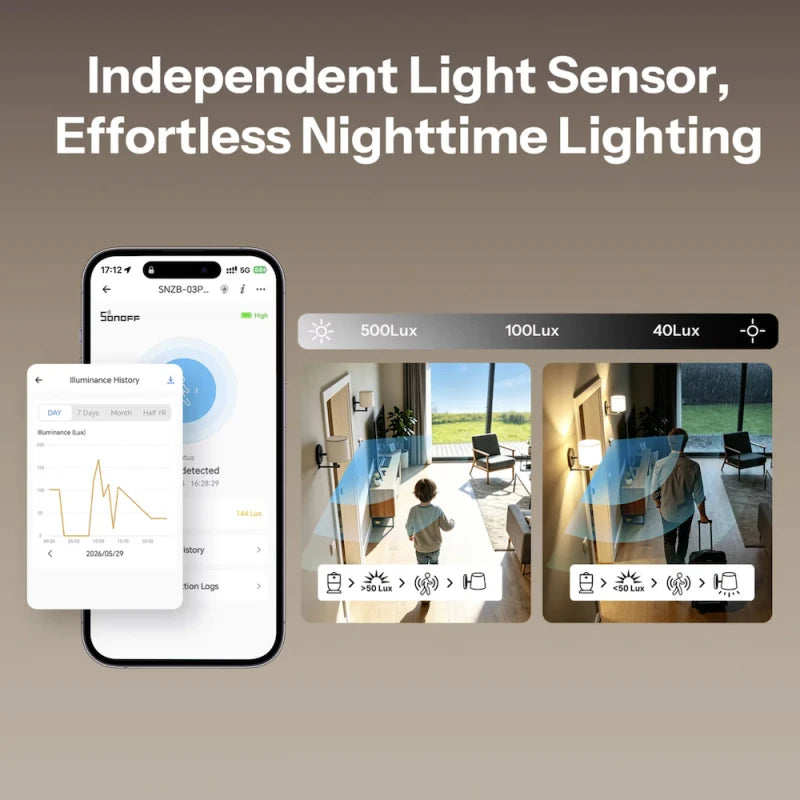

Equipped with an independent light sensor, it accurately measures ambient light levels, records up to 6 months of lighting history, and enables more precise lighting control based on environmental conditions.

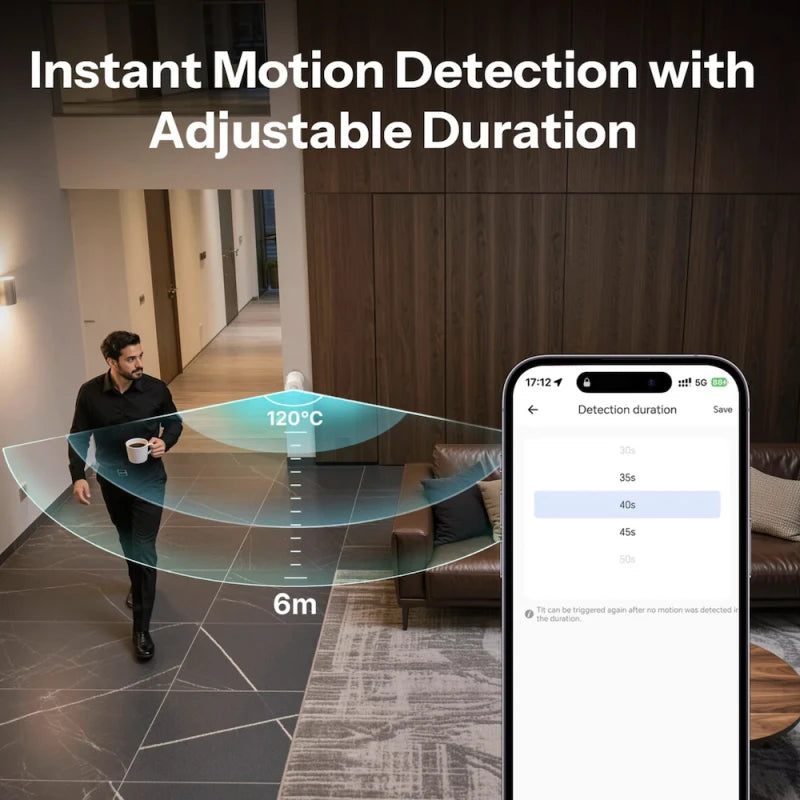

With a 120° detection angle and a range of up to 6 meters, the sensor provides reliable indoor coverage. It can also be integrated into security scenarios to trigger alarms, send notifications, or start camera recordings when motion is detected.

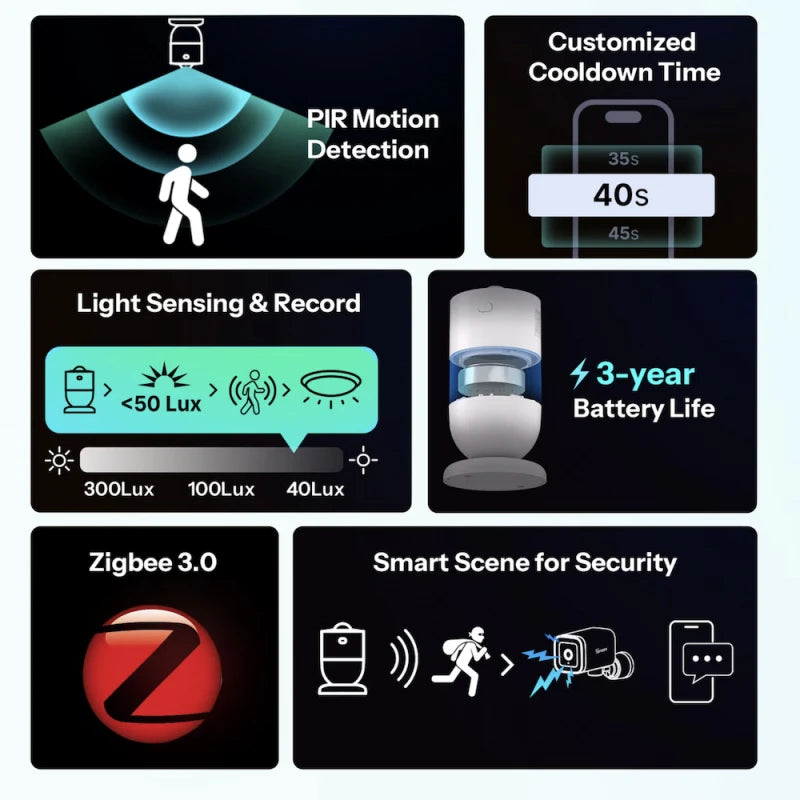

Main Features
Instant PIR motion detection in under 3 seconds.
Adjustable detection duration from 5 to 60 seconds.
Independent ambient light sensor.
Accurate light level monitoring.
Up to 6 months of lighting history recording.
Smart automations based on motion and light conditions.
Security scenario activation including alarms, notifications, and camera recording.

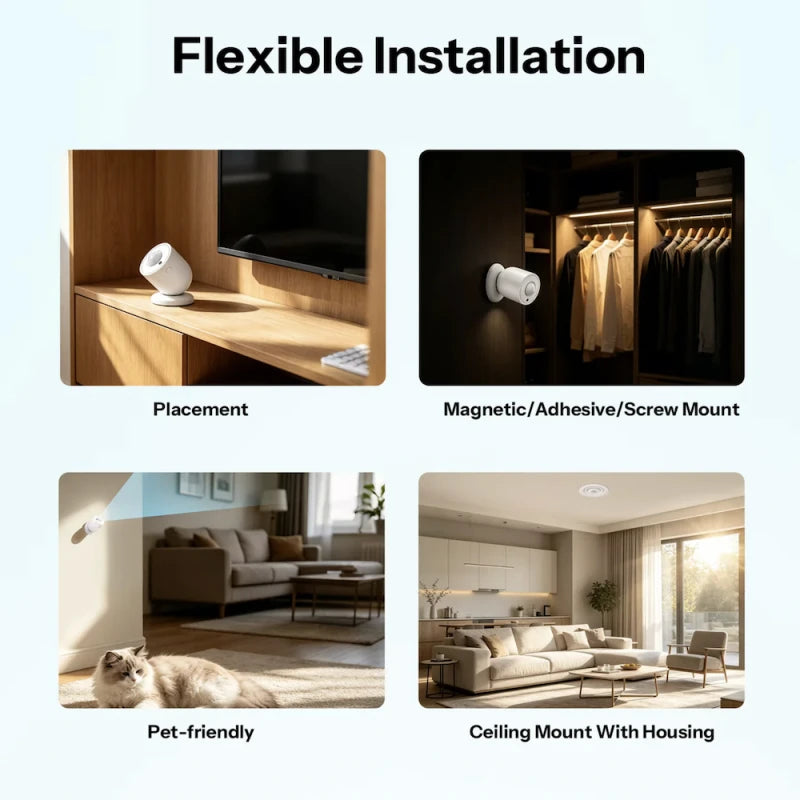

Flexible installation options: adhesive, magnetic, screw-mounted, or freestanding.
Matter compatibility via Bridge.
Zigbee 3.0 integration with third-party and open-source platforms.
Voice-assisted sensor status checking.
Pet-friendly design.

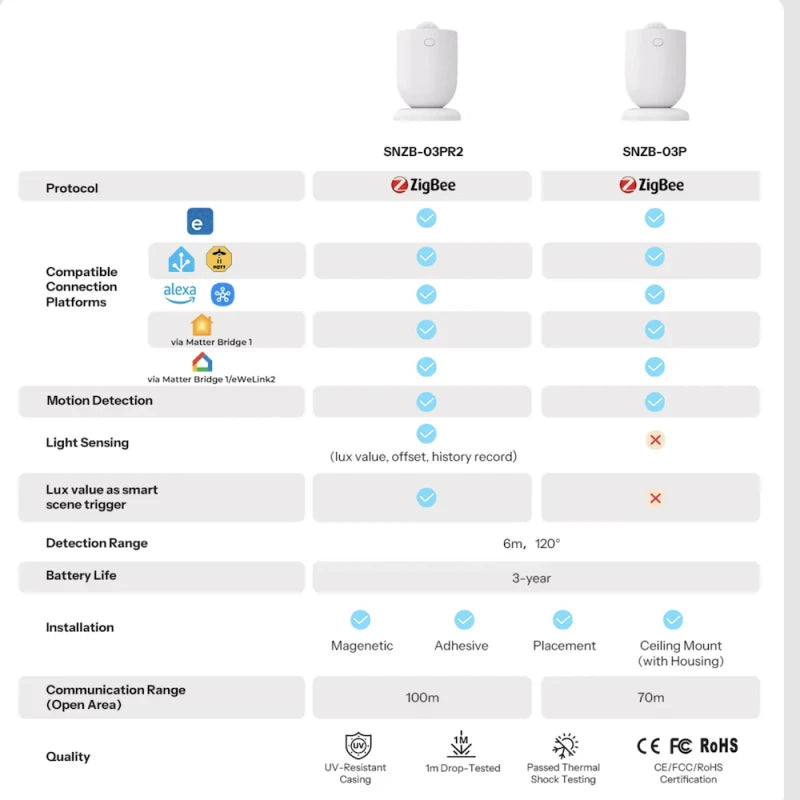

Technical Specifications
Series: SenseGuard
Model: SNZB-03PR2
MCU: TLSR8656
Input Voltage: 3V DC
Battery Type: CR2477
Battery Life: Up to 3 years
Color: White
Dimensions: 44 × 44 × 65 mm
Net Weight: 42.7 g (including battery)
Housing Material: PC
Zigbee Protocol: IEEE 802.15.4
Pairing Time: 180 seconds
Communication Range: Up to 100 m in open space
Intended Use: Indoor
Detection Angle: 120°
Detection Range: Up to 6 m
Operating Temperature: -10°C to 60°C
Operating Humidity: 5% to 95% RH (non-condensing)
Certifications: CE, FCC, RoHS

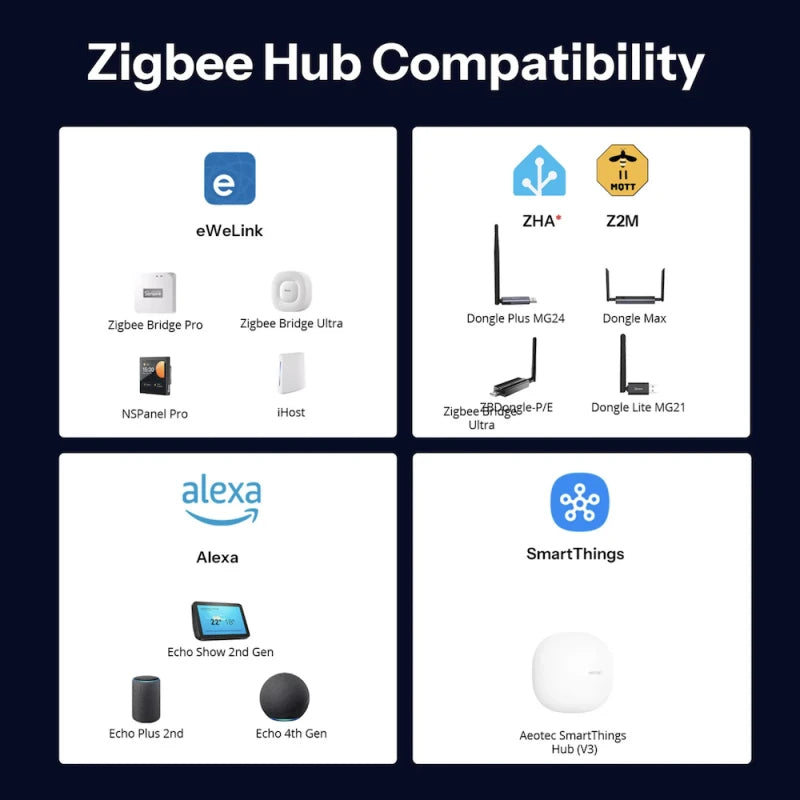

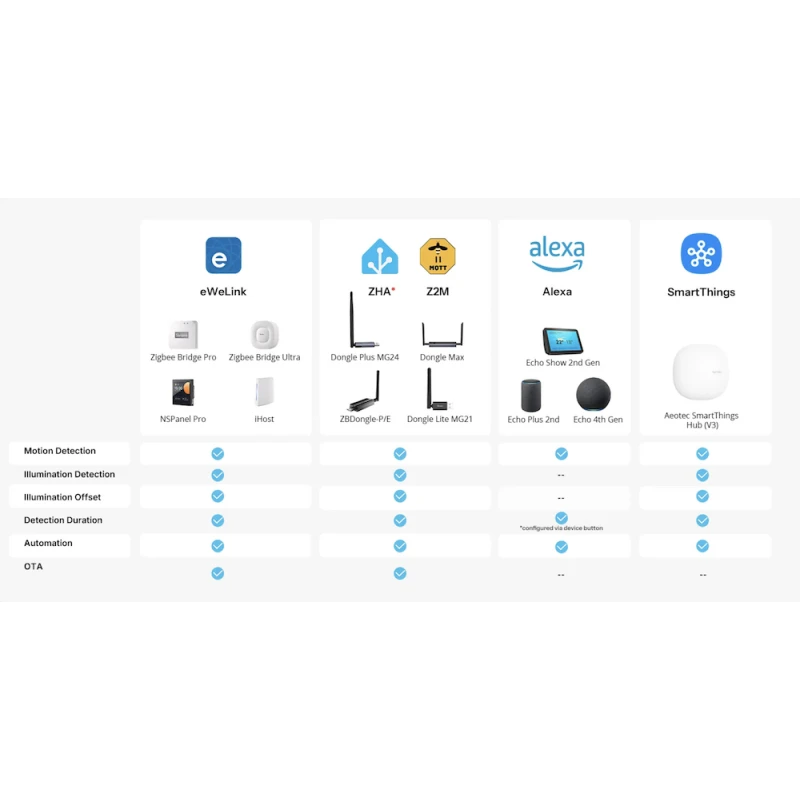

Smart Home Integration
Compatible with Zigbee 3.0 ecosystems.

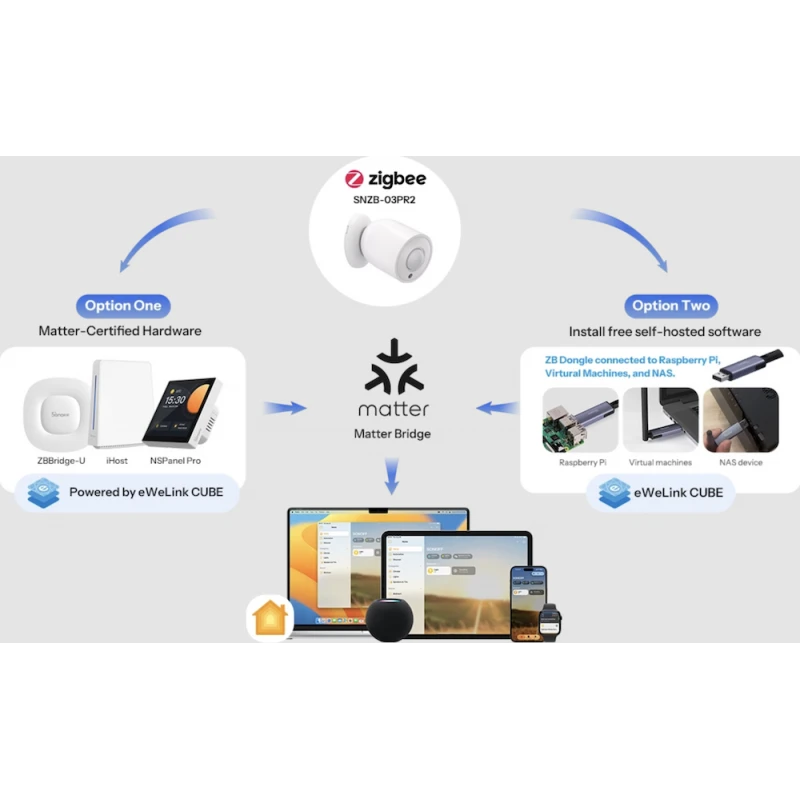

Matter support through a compatible Bridge.
Works with Apple Home via Bridge.
Supports third-party and open-source home automation platforms.
