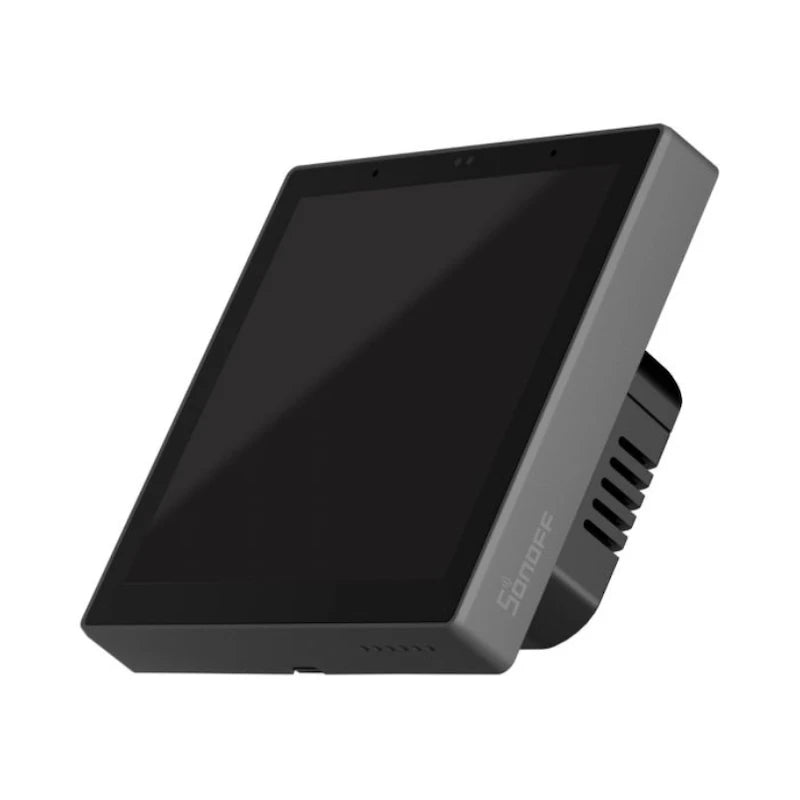

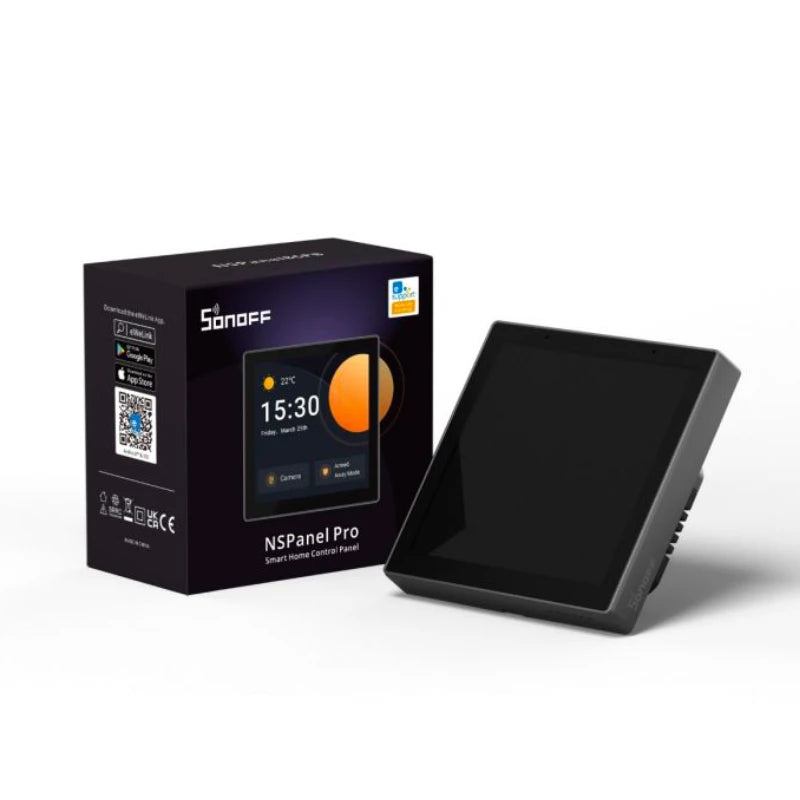

Sonoff - Zigbee 3.0 Black Smart Scene Wall Switch NSPanelPRO

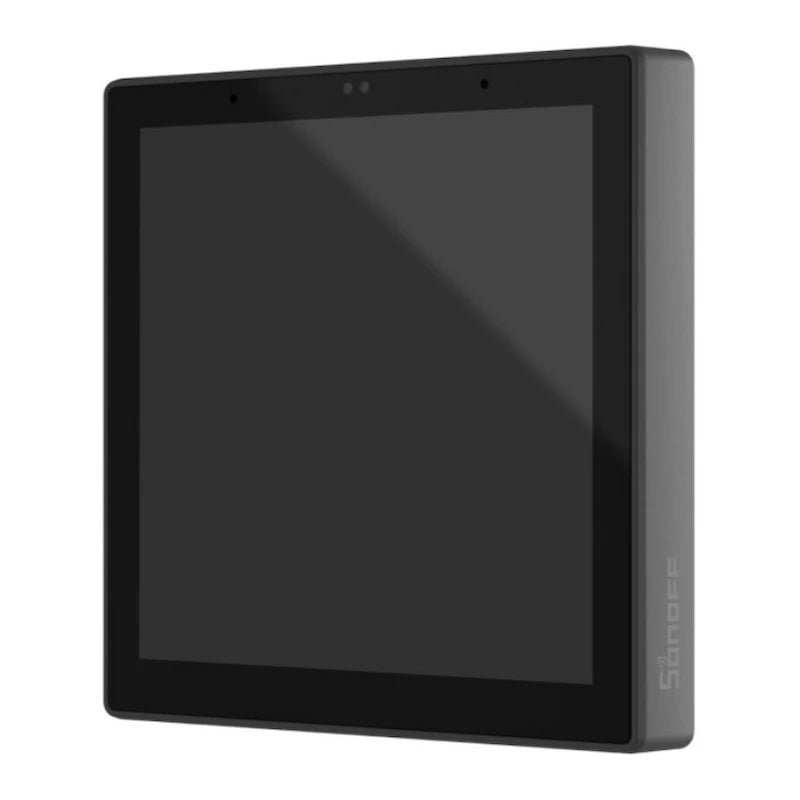

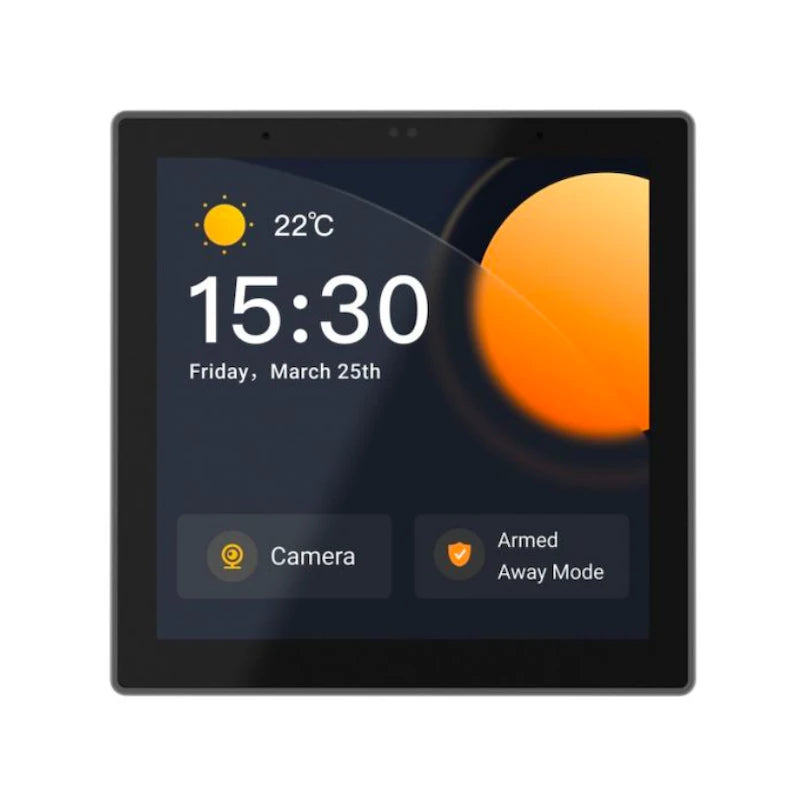

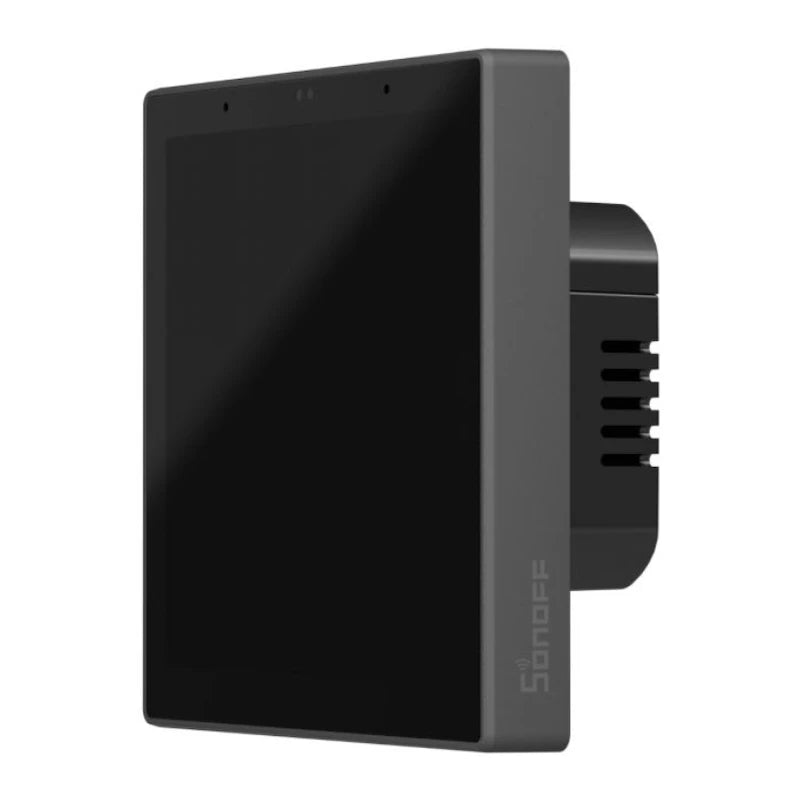

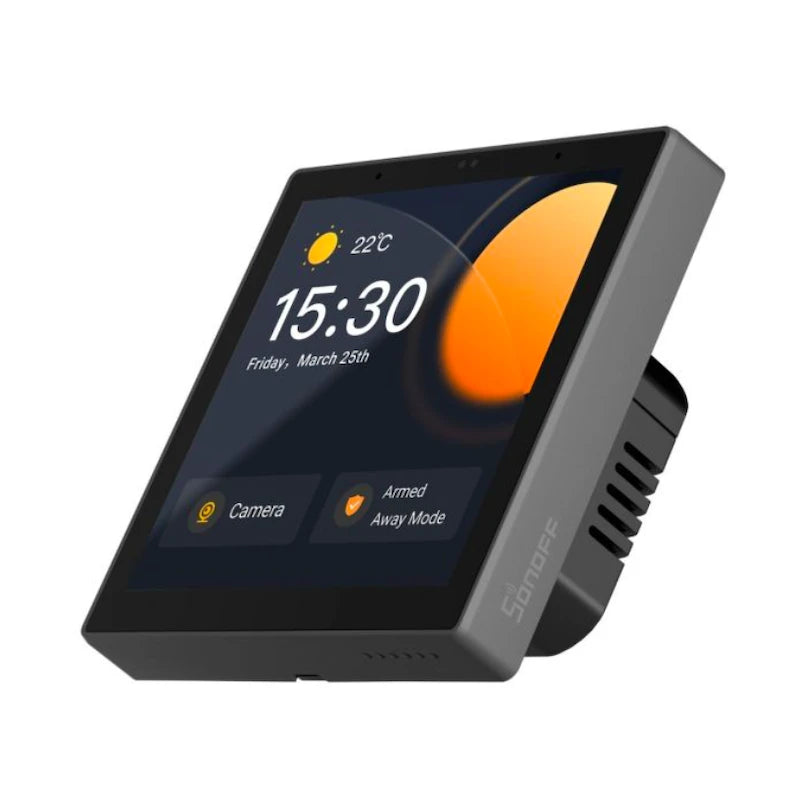

Sonoff NSPanel Pro - The Smart Wall Switch That Controls Your Entire Home

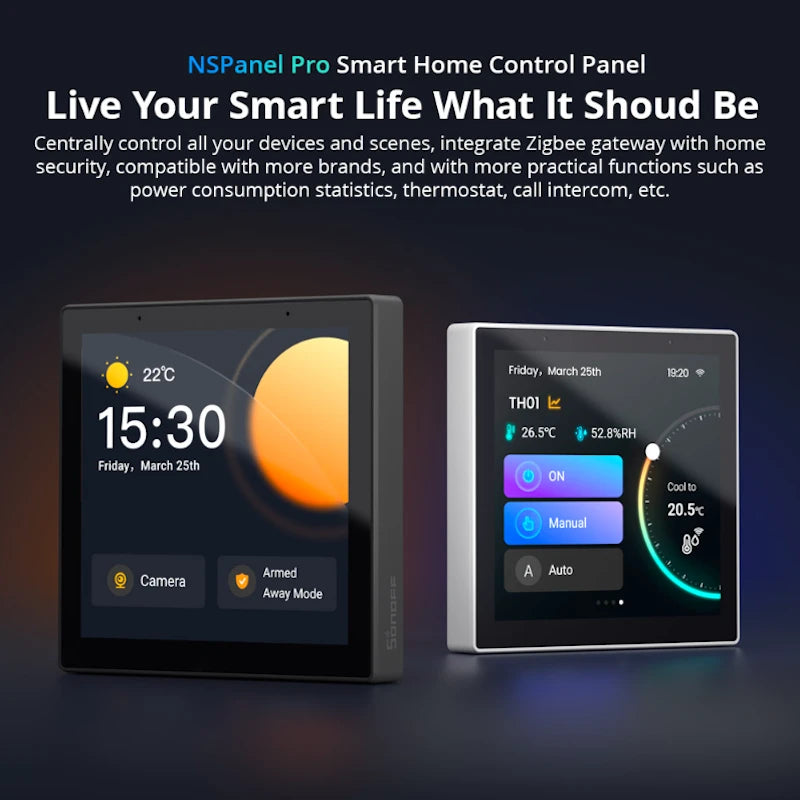

The SONOFF NSPanel Pro is an advanced smart home control panel designed to bring complete home automation management to your fingertips. It allows you to control all your connected smart devices — lights, switches, heaters, coolers, curtains, cameras, and more — through one intuitive interface. With continuous development and updates, SONOFF aims to expand the NSPanel Pro’s capabilities even further, including upcoming support for Home Assistant and Matter.

A Control Panel Without Limits

Manage an unlimited number of smart devices directly from a single panel. The NSPanel Pro centralizes all SONOFF devices and provides seamless integration with various smart home ecosystems. From lighting to security sensors, every connected product can be controlled easily and efficiently.

Multiple Compatibility and Simple Pairing

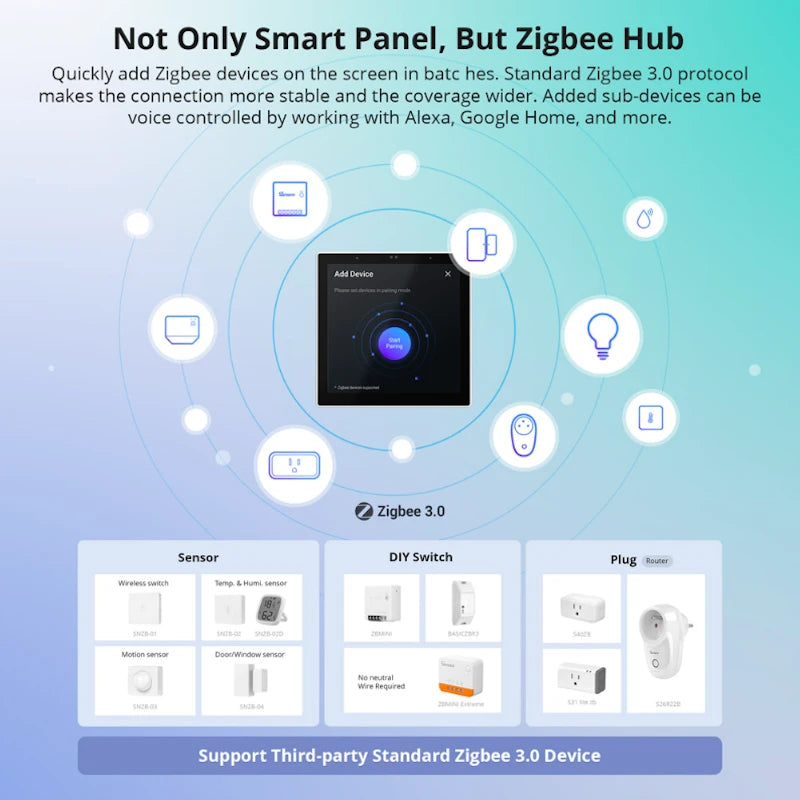

Thanks to Zigbee 3.0, the NSPanel Pro ensures wider coverage and stable connections. It allows quick batch pairing of Zigbee devices directly from the screen and supports the full range of SONOFF Zigbee products — including ZBMINI, BASICZBR3, and Zigbee sensors. Connected devices can also be voice-controlled through Amazon Alexa and Google Home.

A Multifunction Smart Control Hub

The NSPanel Pro is more than just a wall switch — it’s a multifunctional hub that combines control, monitoring, and communication. It supports live viewing from up to four cameras, allowing you to monitor your living room, garage, or bedroom in real time. The panel also features a customizable interface, energy consumption graphs, wallpaper options, and built-in intercom functionality.

Powerful Smart Features

• All-in-One Control Panel: Manage unlimited SONOFF devices — from smart lights and cameras to switches and security sensors — all in one place.
• One-Click Smart Scenes: Activate customized home scenes instantly with a single tap, such as “Away Mode” or “Movie Night.”
• Integrated Zigbee Hub: Acts as a Zigbee 3.0 gateway for stable and extensive smart device connectivity.
• Custom Security Modes: Configure three distinct arming modes. When triggered, the system sounds an alarm and sends alerts to your phone.
• Real-Time Camera Monitoring: View live video from connected cameras directly on the panel at any time.
• Two-Way Communication: Interact with visitors via smart cameras using two-way audio for enhanced security.
• Built-in Intercom: Communicate easily with other panels or mobile phones using the integrated microphone and speaker.
• Smart Temperature Control: Create a thermostat by linking sensors and heating/cooling devices to maintain optimal comfort.
• Home Assistant Compatibility: Sync devices bidirectionally between NSPanel Pro and Home Assistant for unified control.
• Custom Wallpapers & UI: Personalize your panel with custom wallpapers, including weather-based or uploaded images.
• Power Consumption Graph: View energy usage data directly on the panel to monitor and reduce consumption.

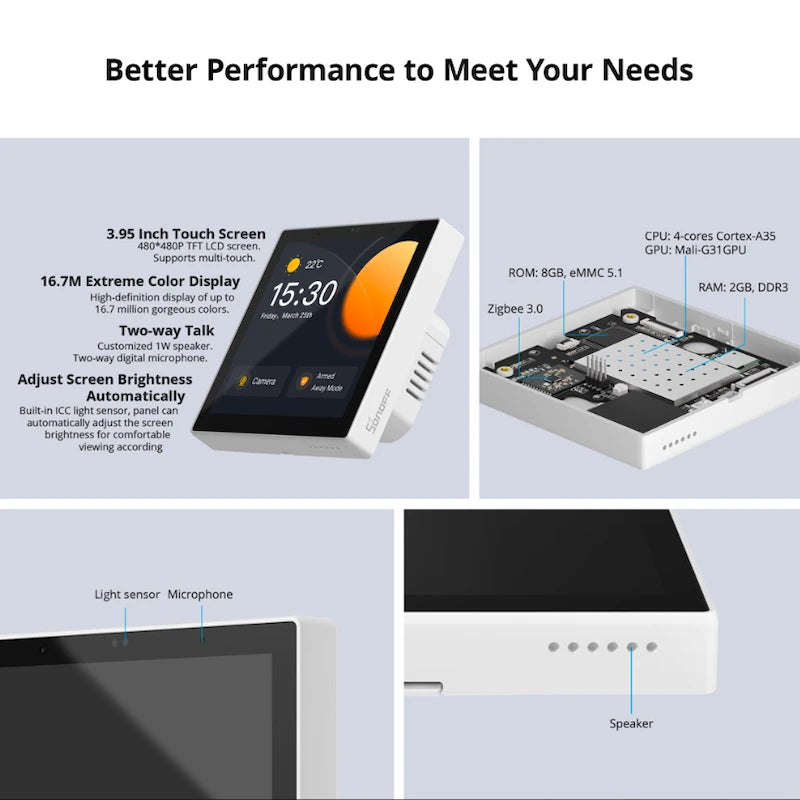

Technical Specifications

• Model: NSPANEL86PB
• Zigbee: IEEE 802.15.4 (Zigbee 3.0)
• Wi-Fi: IEEE 802.11 b 2.4GHz
• Input: 100–240V AC, 50/60Hz
• Maximum Power Consumption: 5W / 150mA
• Screen: 3.95" TFT Capacitive Touch Display
• Resolution: 480 × 480
• Processor: PX30 CPU (Quad-core Cortex-A35)
• GPU: Mali-G31
• Memory: 2GB DDR3 RAM
• Storage: 8GB eMMC 5.1
• Certifications: CE, UKCA, SRRC, RoHS
• Shell Material: PC V0 + CRS + Toughened Glass
• Dimensions: 86 × 86 × 39.5 mm

Why Choose NSPanel Pro?

The SONOFF NSPanel Pro redefines what a wall switch can do. Combining the power of a Zigbee hub, a smart display, and a home automation center, it’s built to simplify daily life while delivering complete control and personalization. With real-time monitoring, energy tracking, and full ecosystem compatibility, it’s an all-in-one hub for the modern connected home.
