Sunricher - Zigbee/Dali converter +0/1-10V + pushdim function

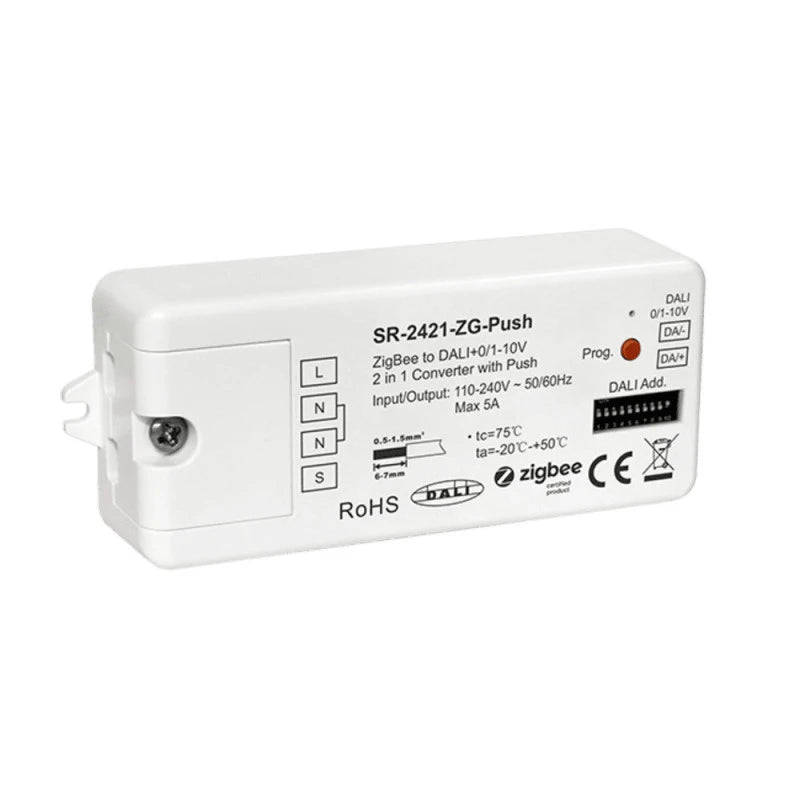

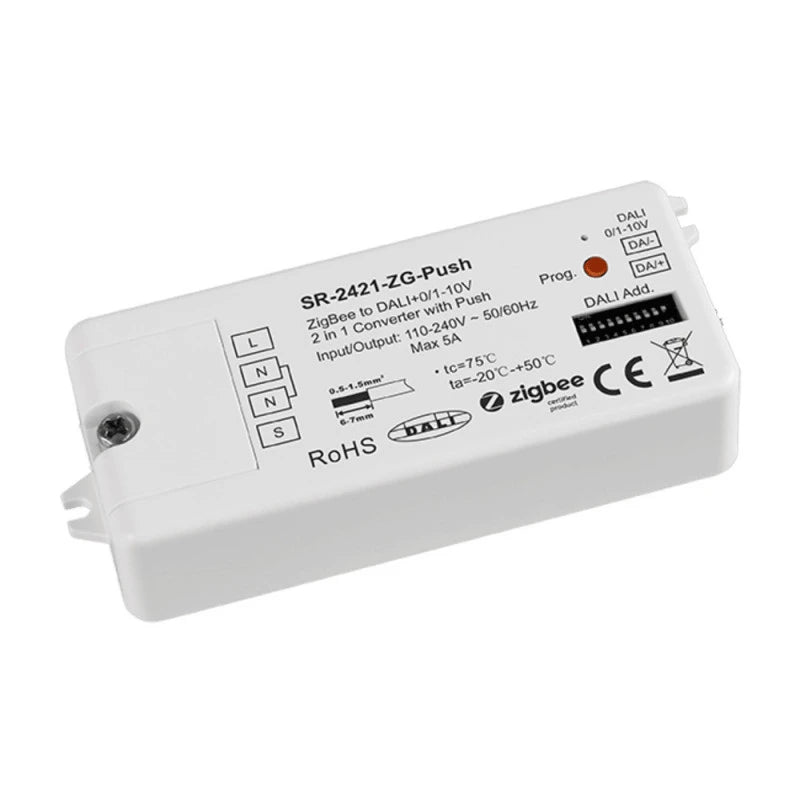

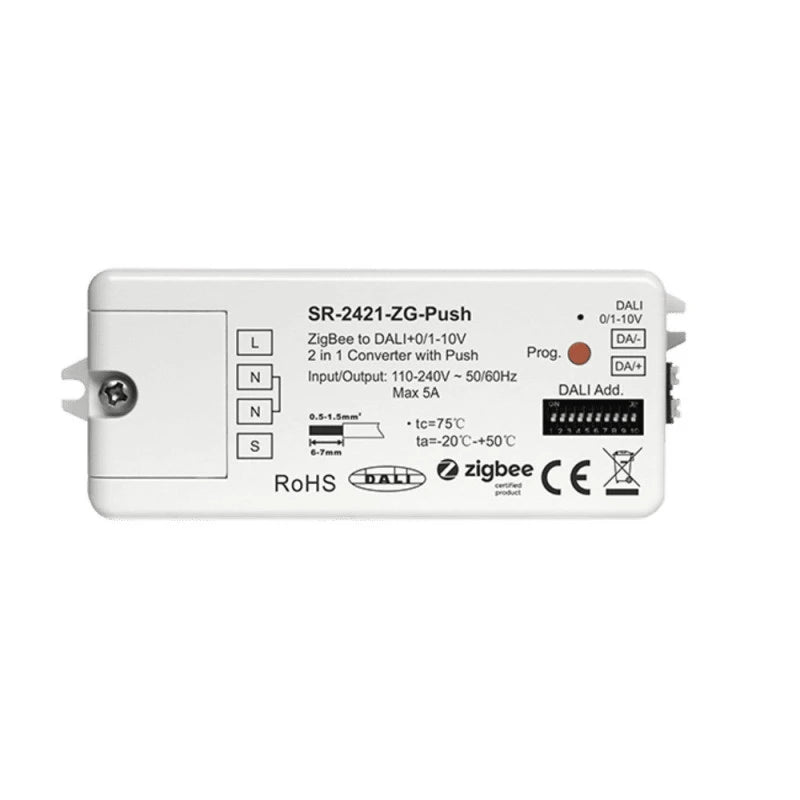

Sunricher SR-2421-ZG-PUSH Zigbee + Push to DALI + 0/1-10V Converter

The Sunricher SR-2421-ZG-PUSH is a versatile converter designed to integrate DALI or 0/1–10V lighting systems into a Zigbee 3.0 network. Powered by 110–240 VAC, it supports both Zigbee communication and input from a traditional push button switch for flexible control.

This module converts Zigbee and push button commands into either a DALI signal or a 0/1–10V output. It features a built-in DALI bus power supply, removing the need for an external power source. A DIP switch allows easy selection between output modes and DALI device types (DT6 or DT8).

Advanced Integration and Control

Compatible with universal Zigbee gateways, the device can also be paired directly with Zigbee remote controls via Touchlink. It supports automatic Zigbee network formation, Find & Bind functionality, and Zigbee Green Power technology, with the ability to connect up to 20 Green Power switches.

In DALI mode, it delivers up to 50 mA on the bus and can power up to 25 DALI devices. For DT8 configurations, it supports multiple colour control modes, including Tc, XY coordinates, and RGBW, selectable via DIP switch.

Product Features

Compatibility

Technical Specifications – Sunricher SR-2421-ZG-PUSH

Meta Description

Zigbee to DALI and 0-10V converter with push control, integrated power supply, DT6/DT8 support, and smart lighting automation compatibility.
