Sunricher - Zigbee Din Rail Relay Module, 4 channels, 16A, 100-230V AC

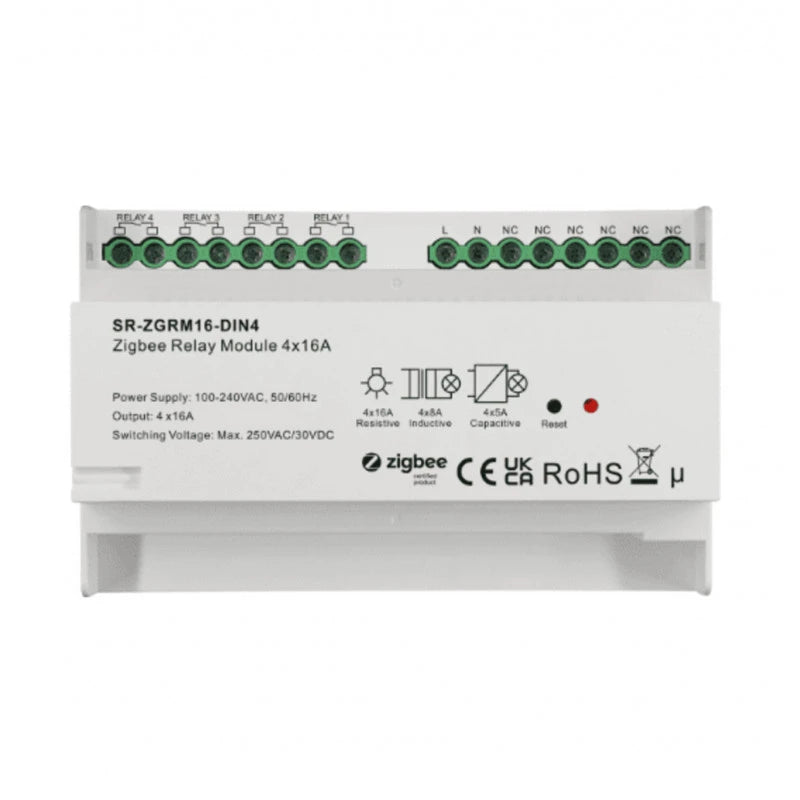

Sunricher SR-ZGRM16-DIN4 4-Channel Zigbee Relay Module DIN Rail

The Sunricher SR-ZGRM16-DIN4 is a 4-channel Zigbee relay module designed for mounting on a standard 35 mm DIN rail. Powered by 100–240 VAC, it allows independent control of up to four standard contactors, making it suitable for both residential and commercial electrical systems.

Featuring Zigbee technology with four distinct endpoints, each channel can be managed individually. The module supports Touchlink, Find & Bind, and Zigbee Green Power, while zero-crossing detection enhances relay durability and extends operational lifespan.

Flexible Integration and Control

This relay can be used with a compatible Zigbee gateway or paired directly with a Zigbee remote control via Touchlink, even without a coordinator. It also enables automatic Zigbee network creation, simplifying installation and configuration.

Key Features

Technical Specifications – Sunricher SR-ZGRM16-DIN4

Compatibility
