Sunricher - 250W Zigbee and Matter over Thread Dimmer module (with or without neutral)

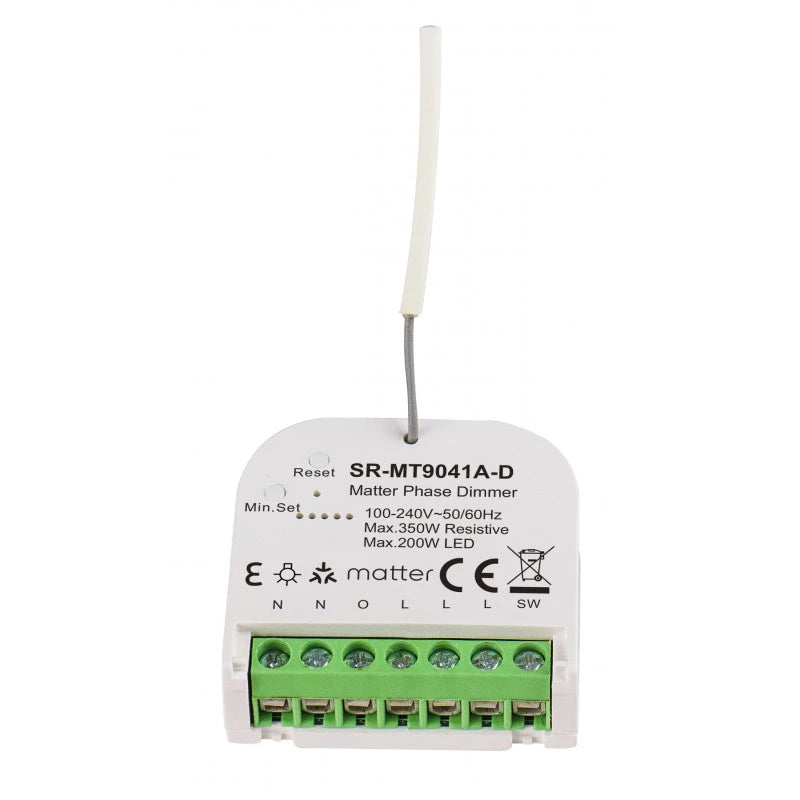

Sunricher SR-MT9041A-D - 250W Smart Zigbee & Matter Dimming Module

The Sunricher SR-MT9041A-D is a compact and intelligent dimming module supporting Zigbee 3.0 and Matter over Thread. Designed for trailing-edge AC loads up to 250W, it offers smooth dimming and advanced features for modern smart homes. With app, remote, or voice control, it integrates seamlessly into Apple Home, Google Home, Alexa, and more.

Key Features

• Trailing edge AC dimming for smooth light adjustment
• Zigbee 3.0 and Matter over Thread compatibility
• Supports capacitive, resistive, and inductive loads
• Control via app, Touchlink remote, or kinetic switch
• Works with Apple HomeKit, Google Home, Alexa
• Soft start feature to extend bulb life
• Automatic light source detection
• Power and energy consumption monitoring
• OTA firmware updates
• Supports multiple switch types (momentary, toggle)

Technical Specifications

• Input: 100–240V AC
• Output: 100–240V AC
• Output current: 0.1 – 1.1 A
• Max load: 250W

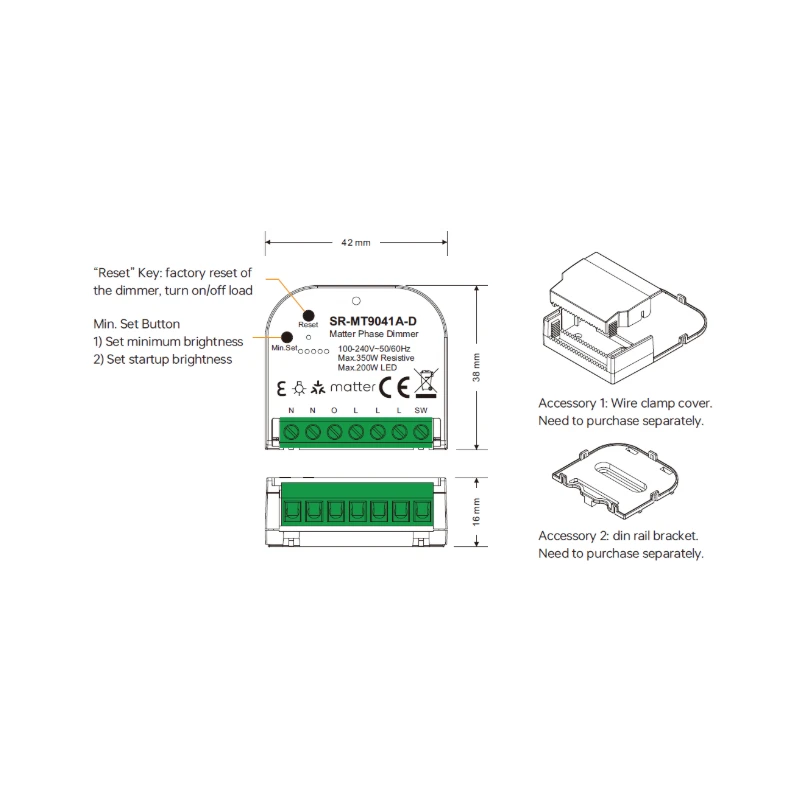

• Dimensions: 42 × 38 × 16 mm
• Protocols: Zigbee 3.0, Matter over Thread
• Protection rating: IP20

Compatibility

• Zigbee2MQTT
• Matter over Thread
• Apple Home
• Google Home
• Amazon Alexa
