Sunricher - Zigbee relay module, 1 channel, 5A 240V AC / 10A 24-30V DC SR-ZG9041A-R

Sunricher - Zigbee relay module, 1 channel, 5A 240V AC / 10A 24-30V DC SR-ZG9041A-R

€24,99 EUR
€24,99 EUR
Sleva Vyprodáno
Včetně daní.
Buy on Domadoo
//

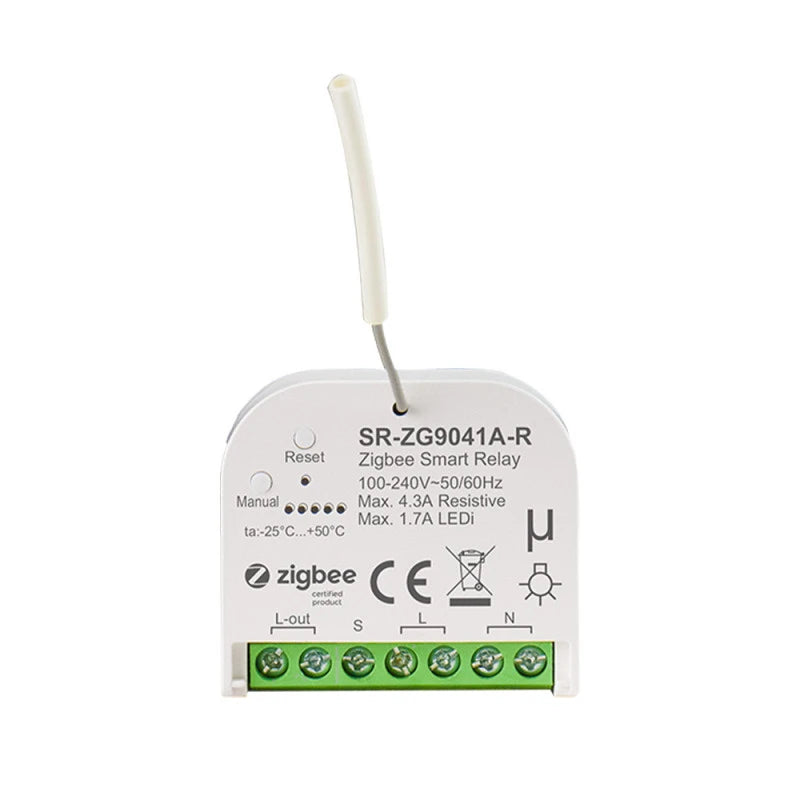

Sunricher Zigbee 1-Channel Relay Module 5A 240V AC / 10A 24–30V DC

The Sunricher 1-channel Zigbee relay module is a compact Zigbee 3.0 micro-module designed for in-wall installation. It enables reliable ON/OFF control of electrical loads, making it suitable for lighting and various electrical devices within a smart home setup.

Operating on 100–240VAC, this module can be controlled remotely through a Zigbee gateway or locally via an external push button switch. Its built-in zero-crossing detection enhances relay durability and ensures a longer operational lifespan.

Core Features

  • Zigbee 3.0 flush-mounted relay module (single channel)
  • Remote ON/OFF control via Zigbee network
  • Compatible with 100–240 VAC input
  • Local control through external push button switch
  • Zero-crossing detection for improved reliability and longevity
  • Works with universal Zigbee gateways
  • Designed for installation in standard wall boxes

    • Technical Specifications

  • Type: 1-channel Zigbee relay module
  • Protocol: Zigbee 3.0
  • Input voltage: 100–240 VAC
  • Resistive load: max. 4.3 A
  • Capacitive/inductive load: max. 1.7 A
  • Relay output: 5 A at 240 V AC
  • DC output: 10 A at 24–30 V DC
  • Local control: external push button
  • Technology: relay with zero-crossing detection
  • Installation: flush-mounted (in-wall micro module)
    • Zobrazit veškeré podrobnosti
