Zooz ZSE70: Z-Wave+ 800 Series Outdoor Motion Sensor

Zooz ZSE70 Z-Wave+ Outdoor Motion Detector

The Zooz ZSE70 is the latest generation Z-Wave outdoor motion detector, designed to enhance both security and automation around your home. Easy to install on a flat surface and connect to your Z-Wave hub, it delivers instant alerts when unexpected movement is detected, helping you protect your property effectively.

Reliable Security and Smart Automation

Receive real-time notifications of motion events and use them to trigger automated actions such as activating lights, sirens, or even sprinklers to deter intruders. The sensor also measures ambient light levels, allowing you to refine your outdoor lighting scenarios for greater efficiency and convenience.

Intelligent Outdoor Lighting

Create automated lighting systems by linking the sensor to Z-Wave switches or dimmers. Lights can automatically turn on when motion is detected near entrances, garages, or pathways, ensuring visibility and safety after dark. Thanks to SmartStart, installation is quick and simple using a QR code.

Flexible Monitoring and Customisation

The ZSE70 provides motion, temperature, and brightness data, which can be adjusted through advanced settings depending on your hub’s capabilities. Use this information to automate lighting, HVAC systems, or other connected devices based on real conditions.

Indoor and Outdoor Versatility

Although designed for outdoor use with an IP66 rating, this compact sensor can also be installed indoors. It operates on batteries or an optional 12–24 V power supply, and when powered externally, it functions as a Z-Wave repeater to strengthen your network.

Key Features

• Fast and reliable motion detection alerts

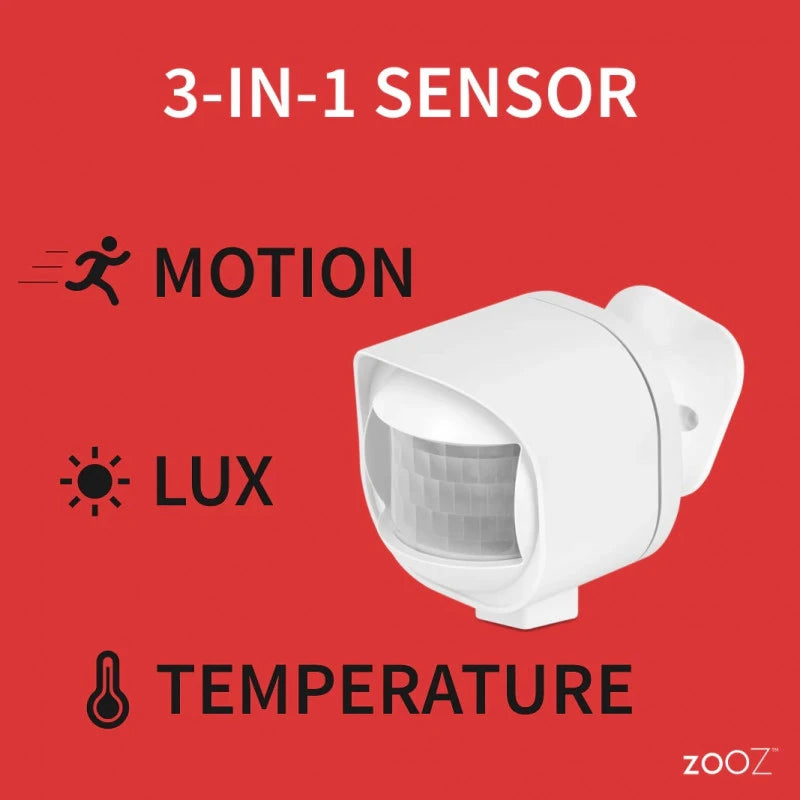

• Integrated temperature and light (lux) sensors
• Z-Wave 800 Series chip with SmartStart inclusion
• Customisable reporting and automation settings
• Battery-powered or 12–24 V AC/DC supply
• Acts as a repeater when externally powered
• Suitable for indoor and outdoor use (IP66)

Technical Specifications

• Power supply: 2 × CR123A (3V) batteries or 12–24 V AC/DC
• Frequency: 868 MHz (Europe)
• Motion detection range: up to 9 m
• Temperature range: -10°C to 50°C (±2°C accuracy)
• Light detection: 0 to 30,000 lux (±20% accuracy)
• Range: up to 40 m line of sight
• Dimensions: approximately 5.94 × 6.1 × 6.9 cm
• Installation: indoor or outdoor (IP66 rated)
