Gledopto GL-DR-001Z - DIN rail relay module with energy meter

Gledopto GL-DR-001Z Zigbee DIN-Rail Relay with Power Meter

The Gledopto GL-DR-001Z is a compact DIN-rail relay designed for smart control and monitoring of electrical circuits. Compatible with Zigbee 3.0 gateways such as Tuya, SmartLife, ConBee, and other third-party Zigbee bridges, it provides reliable switching and real-time energy monitoring for residential and commercial installations.

With support for loads up to 16A and an integrated power meter, the relay allows users to remotely control connected equipment while tracking electricity consumption directly from their home automation platform.

Its flame-retardant polycarbonate housing and DIN-rail mounting design make it suitable for installation inside electrical distribution panels, providing a discreet and professional smart automation solution.

Main Features

• DIN-rail mounted Zigbee relay.
• Control of electrical loads up to 16A.
• Integrated power consumption monitoring.
• Real-time energy measurement.
• Remote control via Zigbee 3.0.
• Compatible with Tuya and SmartLife ecosystems.
• Voice control support through compatible Zigbee gateways.
• Suitable for lighting and electrical load management.
• Compact design for electrical panels.
• Flame-retardant housing for enhanced safety.

Technical Specifications

• Brand: Gledopto
• Model: GL-DR-001Z
• Input Voltage: 100–240V AC
• Maximum Output Current: 16A
• Protocol: Zigbee 3.0
• Built-in Power Meter: Yes
• Output Circuits: 1
• Material: Flame-retardant polycarbonate
• Protection Rating: IP20
• Operating Temperature: -20°C to 45°C
• Estimated Lifespan: Approximately 50,000 hours
• Dimensions: 59 × 24 × 92 mm
• Weight: 90 g

Compatibility

• Zigbee 3.0
• Tuya Smart
• SmartLife
• ConBee
• Third-party Zigbee gateways
• Amazon Alexa (via compatible Zigbee gateway)

Functions

• Remote switching of electrical circuits.
• Energy consumption monitoring.
• Real-time power measurement.
• Automation through Zigbee platforms.
• Smart control of lighting and electrical equipment.

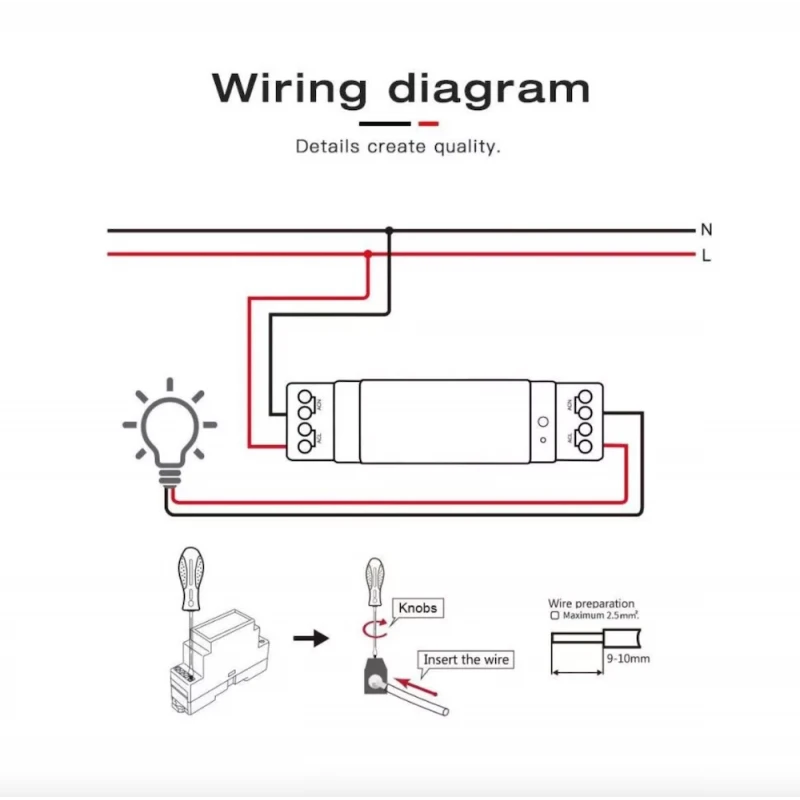

Installation

• DIN-rail mounting.
• Designed for installation inside electrical distribution panels.

Warranty & Certifications

• Warranty: 24 months
