Heiman - Flush-mounted Zigbee door/window sensor HS8DS

Heiman HS8DS - Zigbee 3.0 Flush-Mounted Door & Window Sensor

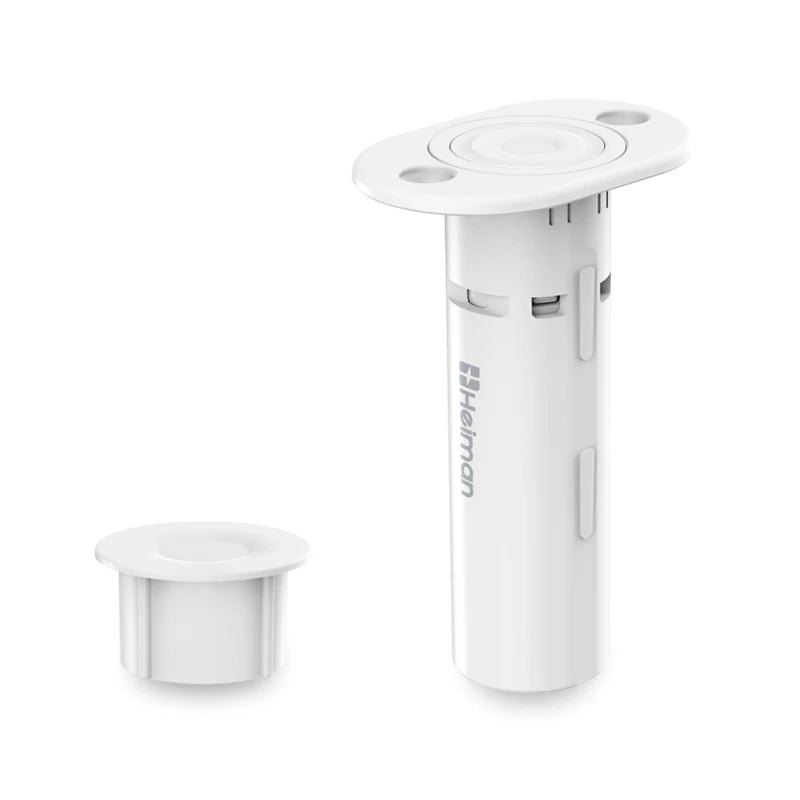

The Heiman HS8DS is a compact and discreet flush-mounted opening detector designed to monitor doors and windows while maintaining a clean, wire-free look. Compatible with ZigBee 3.0, it integrates seamlessly into modern home automation and security systems, supporting scenarios, alarms, and automations.

Applications – Heiman HS8DS

• Detects door and window openings
• Provides perimeter protection as part of a security system
• Integrates with ZigBee 3.0 home automation platforms
• Triggers alarms, routines, or automated scenes

Key Features

• Compact, modern, and discreet design
• Flush-mounted installation for a seamless finish
• High-sensitivity magnetic contact sensor (reed switch) reduces false alarms
• ZigBee 3.0 compatibility with Tuya, Smart Life, and other ecosystems
• Push-up design for easy battery replacement

Technical Specifications - Heiman HS8DS

• Model: HS8DS
• Type: Magnetic door/window opening detector
• Installation: Flush-mounted (door or window) with adhesive or screws
• Protocol: ZigBee 3.0
• Power Supply: DC 3V battery (CR123A)

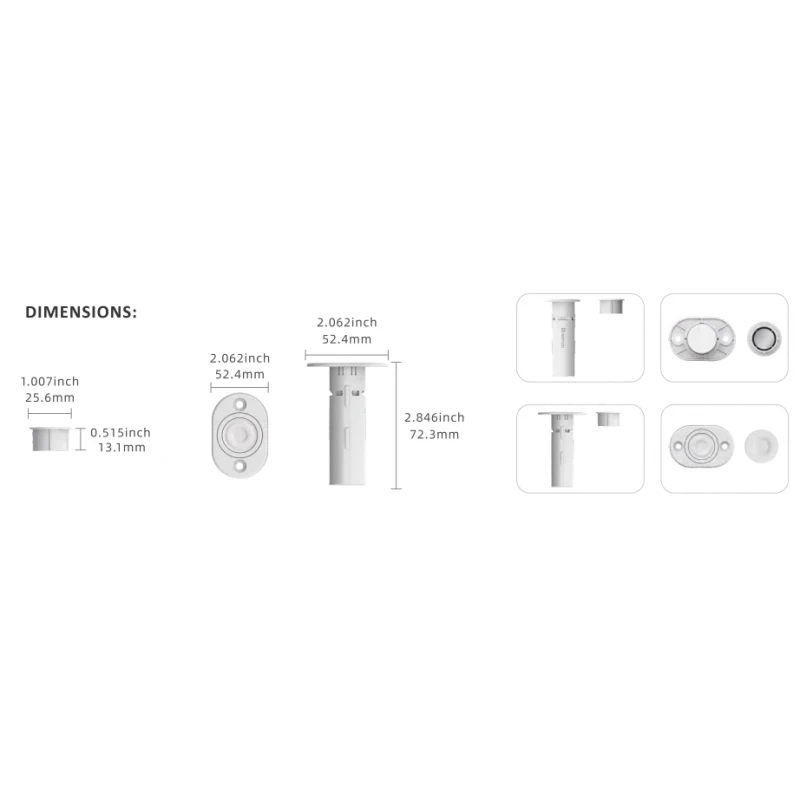

• Sensor Dimensions: 52.4 × 72.3 mm
• Magnet Dimensions: Ø25.6 × 13.1 mm
• Operating Temperature: -10°C to +50°C
• Relative Humidity: 10%–95%
• Battery Life: Up to 3 years (depending on use)
