Sonoff - Matter ON/OFF Module + ORB-MW1 Switch

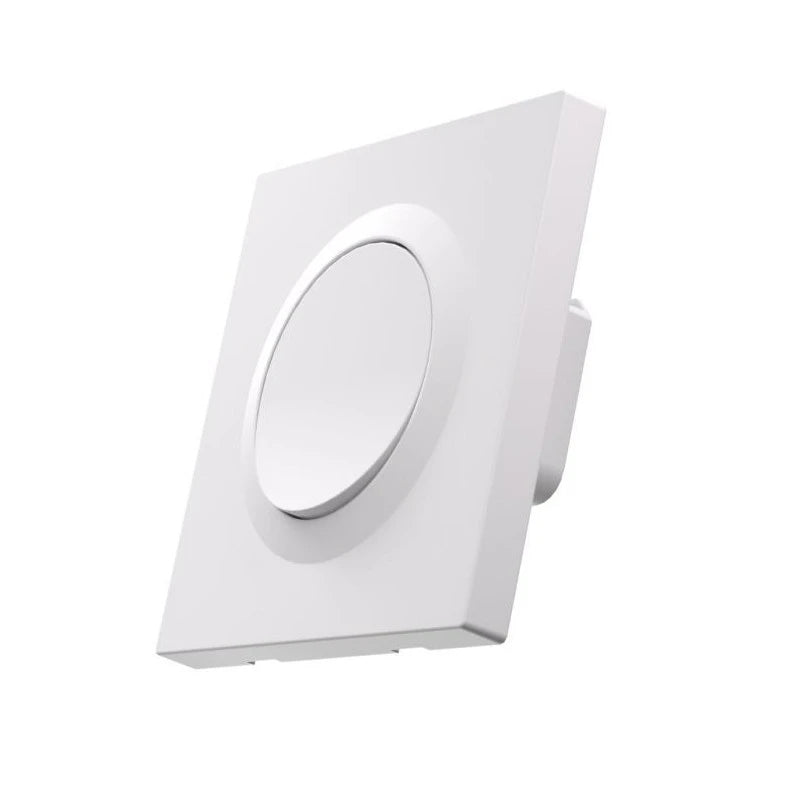

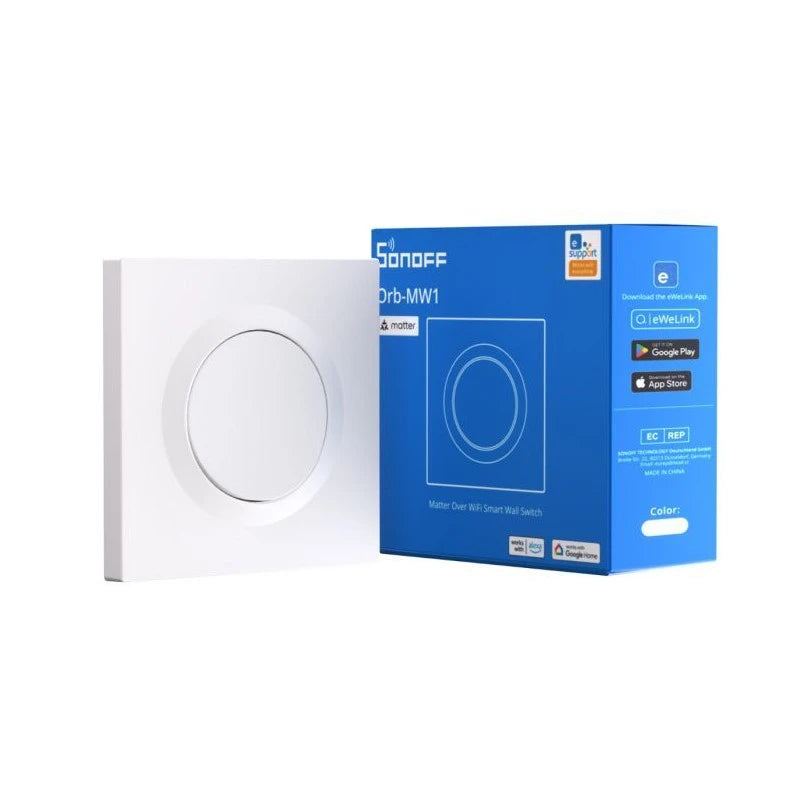

SONOFF ORB-MW1 – Matter-Compatible ON/OFF Smart Wall Switch

The SONOFF ORB-MW1 (MINIR4M-E) is a sleek and intelligent 1-channel ON/OFF wall switch designed for seamless integration with all major smart home ecosystems. With Matter support, local LAN control, detachable relay mode, and flexible mounting options, it’s the perfect choice to enhance your connected lifestyle with reliable, unified control.

Main Features

• Matter Compatibility: Works with Apple Home, Amazon Alexa, Google Home, SmartThings, and other Matter platforms.
• Detachable Relay Mode: Allows smart control to remain active even if the physical switch is turned off.
• LAN Control: Operates without an internet connection via local network control.
• Smart Scenes: Easily integrates with SONOFF sensors and devices for complete automation routines.
• Flexible Installation: Compatible with SONOFF Fusion Orb 2/3-Gang frames for both vertical and horizontal setup.
• Timers and Schedules: Set countdowns, schedules, and automation rules for smarter control.

Common Use Cases

• Switch lights on and off remotely or via voice assistant.
• Automate home appliances in combination with sensors.
• Create whole-home scenes like “All Off” when leaving the house.
• Maintain full control even during internet outages with LAN support.

Technical Specifications – MINIR4M-E

• Product Name: ORB-MW1
• Model: MINIR4M-E
• Series: Fusion
• Switch Type: ON/OFF smart wall switch
• MCU: ESP32-C3FN4
• Power Supply: 100–240V AC, 50/60 Hz
• Max Load: 10 A (resistive load)
• Connectivity: Wi-Fi 2.4 GHz (IEEE 802.11 b/g/n)
• Dimensions: 86 × 86 × 34 mm
• Net Weight: 84 g
• Case Material: Flame-resistant PC
• Color: White

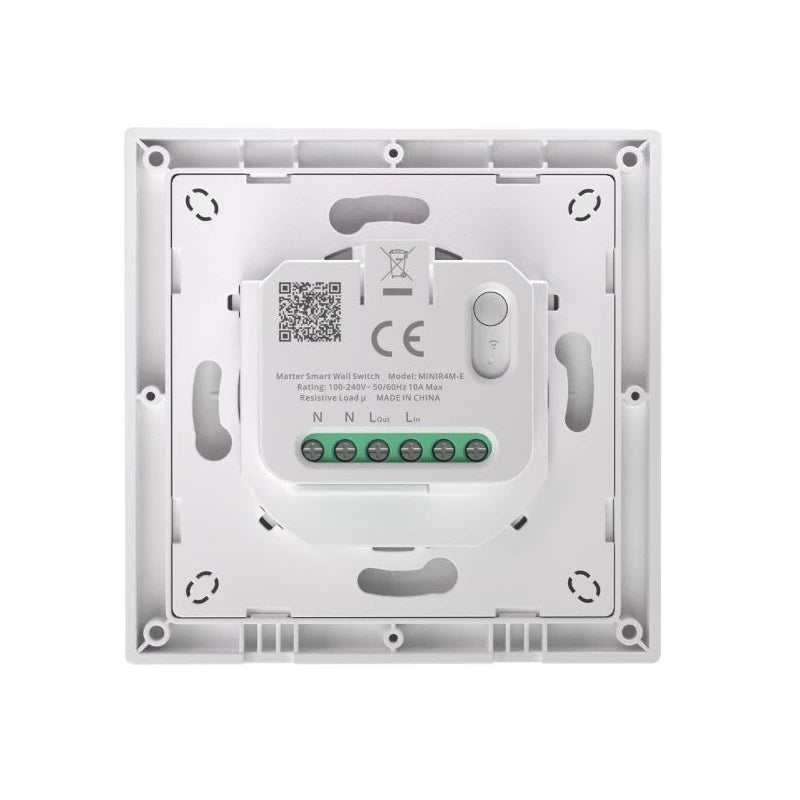

• Wiring: Recommended 16–14 AWG copper
• Certifications: CE, RoHS

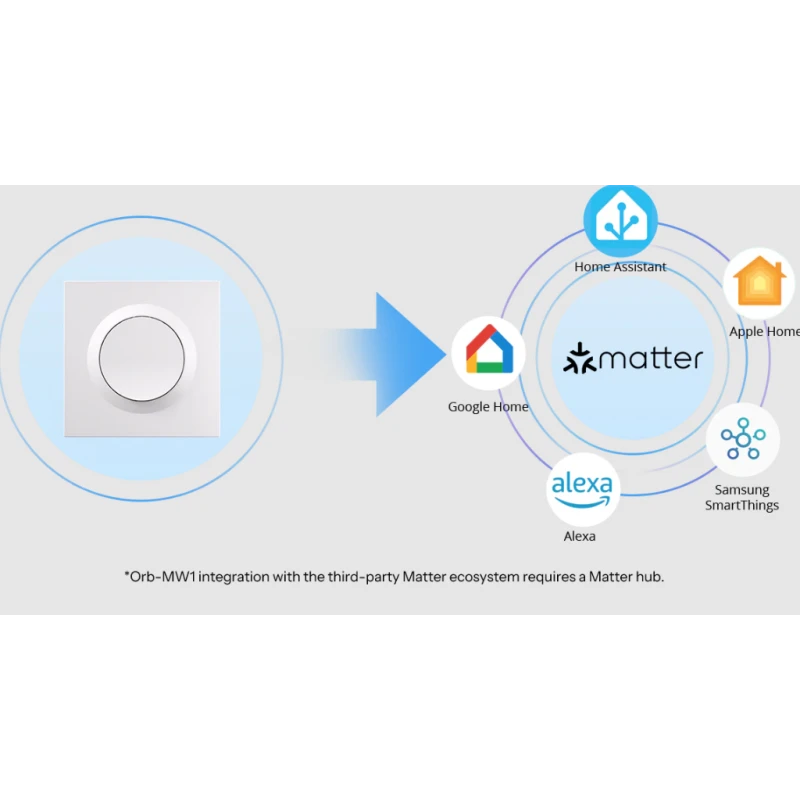

Compatibility

• Apple HomeKit
• Amazon Alexa
• Google Home
• Samsung SmartThings
• Home Assistant

• All Matter-enabled platforms
