Owon - Zigbee Motion, Temperature and Humidity Sensor PIR_323-PTH

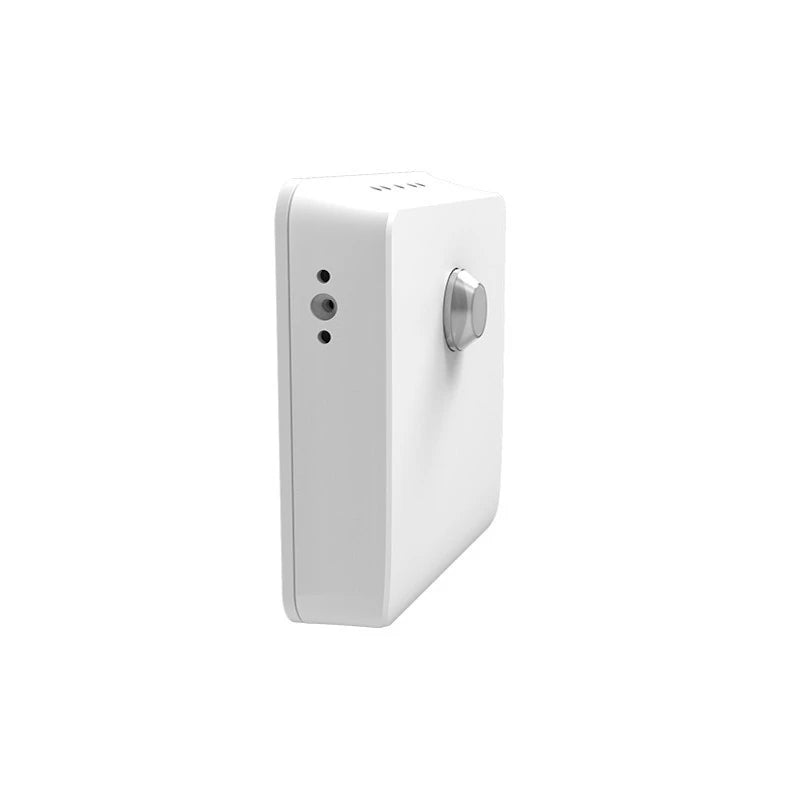

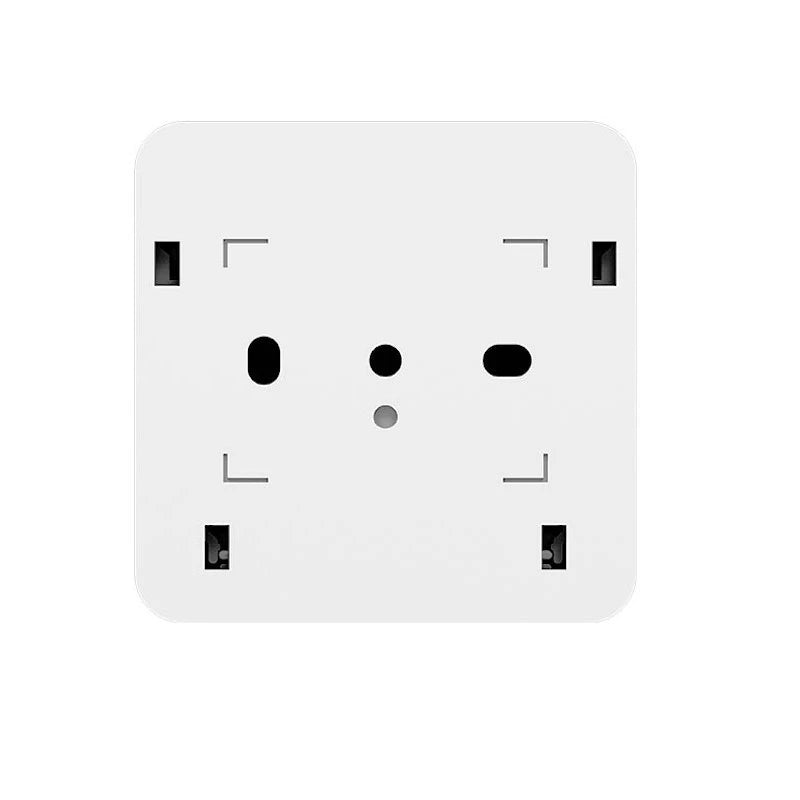

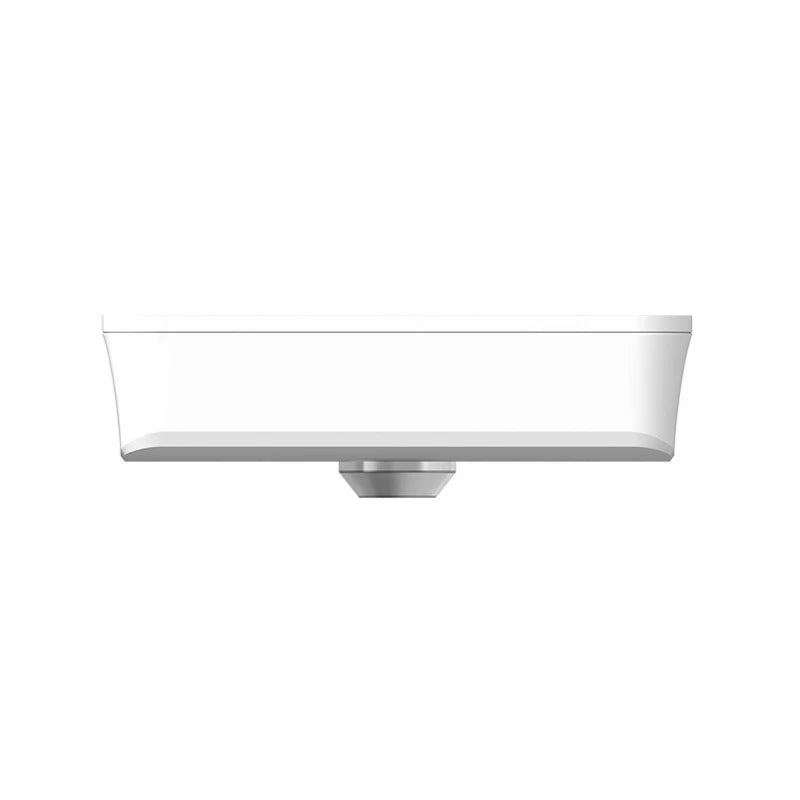

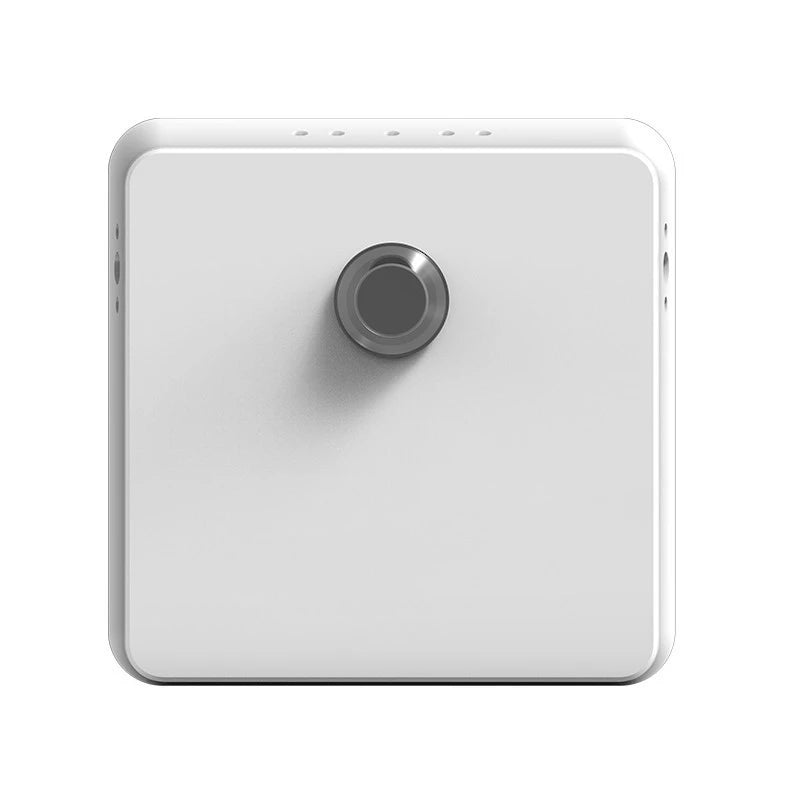

Owon ZigBee 3-in-1 Multi-Sensor – Motion, Temperature & Humidity

The OWON ZigBee 3-in-1 Multi-Sensor helps you monitor essential data in your home: movement, temperature, and humidity. With its smart detection and ZigBee integration, it enables useful automations to enhance comfort and security, while alerting you in real time through a compatible ZigBee home automation controller.

Main Functions

• PIR motion detection with reliable accuracy
• Temperature and humidity measurement for climate monitoring
• Battery level indication for timely replacement
• Low energy consumption for extended usage

Technical Characteristics

• Power Supply: DC 3V (2 × AAA batteries, not included)
• LED Display: 2-color (Red, Green)
• Temperature Measurement: Internal probe
• Temperature Range: -10°C to +85°C (±0.5°C accuracy)
• Humidity: ≤85% RH (non-condensing)
• PIR Detection Range: up to 5 m
• PIR Detection Angle: 100° vertical, 120° horizontal
• Operating Temperature: -10°C to +55°C
• Dimensions: 62 × 62 × 15.5 mm
• Connectivity: ZigBee 3.0, 2.4GHz IEEE 802.15.4
• RF Frequency: 2.4 GHz
• Range: 100 m (outdoor) / 30 m (indoor)
• Antenna: Internal
