Nous - 25A Zigbee DIN rail module + consumption measurement D3Z

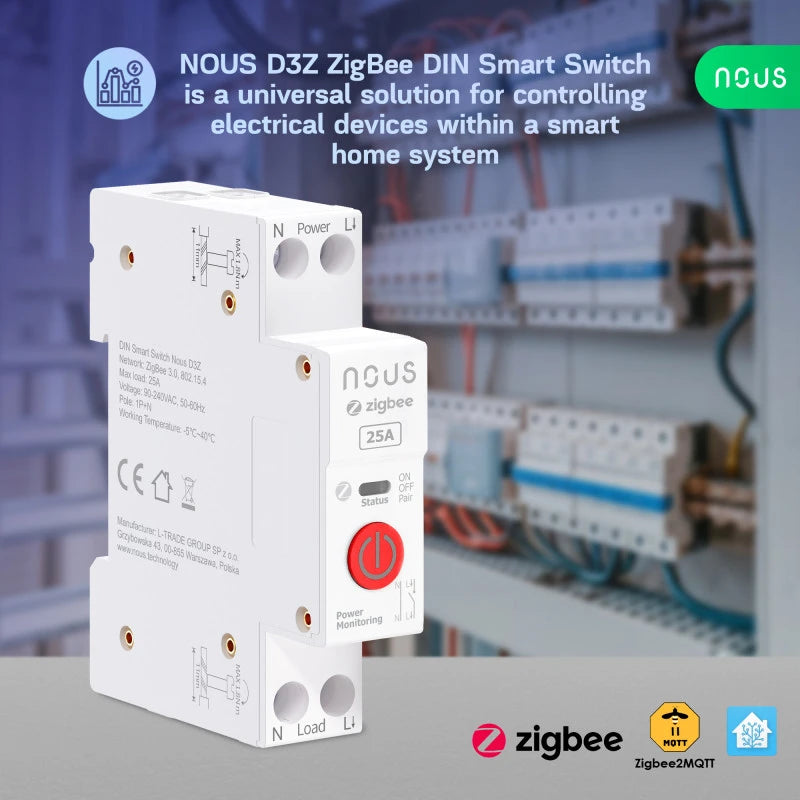

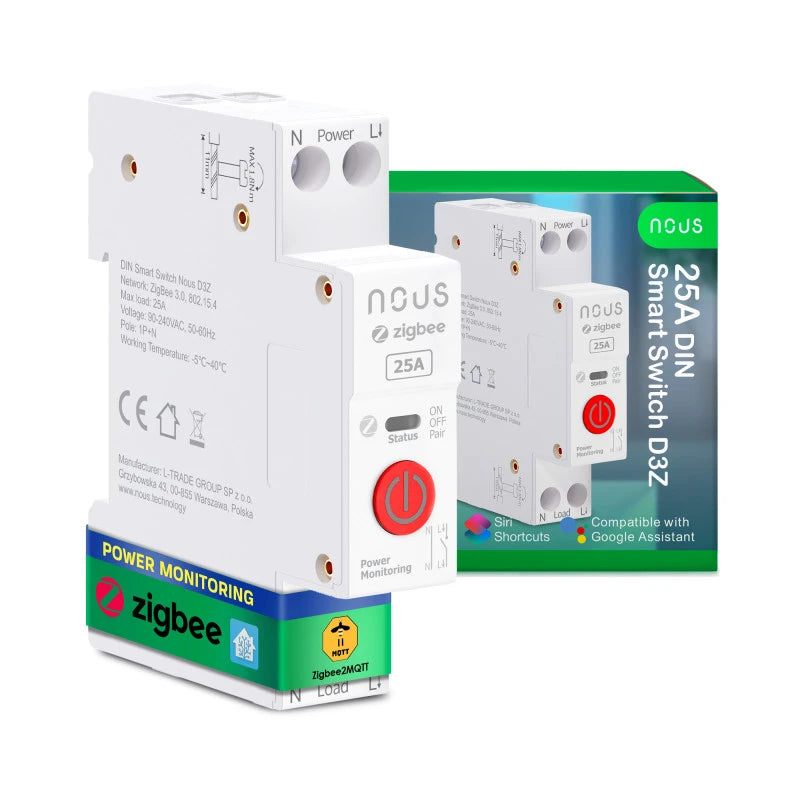

NOUS D3Z: 25A Zigbee DIN Rail Switch with Energy Monitoring

The NOUS D3Z is a powerful Zigbee 3.0 smart module designed for DIN rail installation, combining remote control functionality with real-time energy consumption monitoring. Ideal for managing high-power appliances, it provides smart energy tracking and control via the NOUS Smart Home app, and is compatible with popular voice assistants like Amazon Alexa and Google Home.

With support for loads up to 25A and wide voltage compatibility (90–240V), this module is perfect for residential or light commercial electrical panel integration. Its compact size, certified safety, and integration with Zigbee ecosystems make it an excellent solution for efficient and connected energy management.

This product is not a connected circuit breaker, but an ON/OFF relay with consumption measurement.

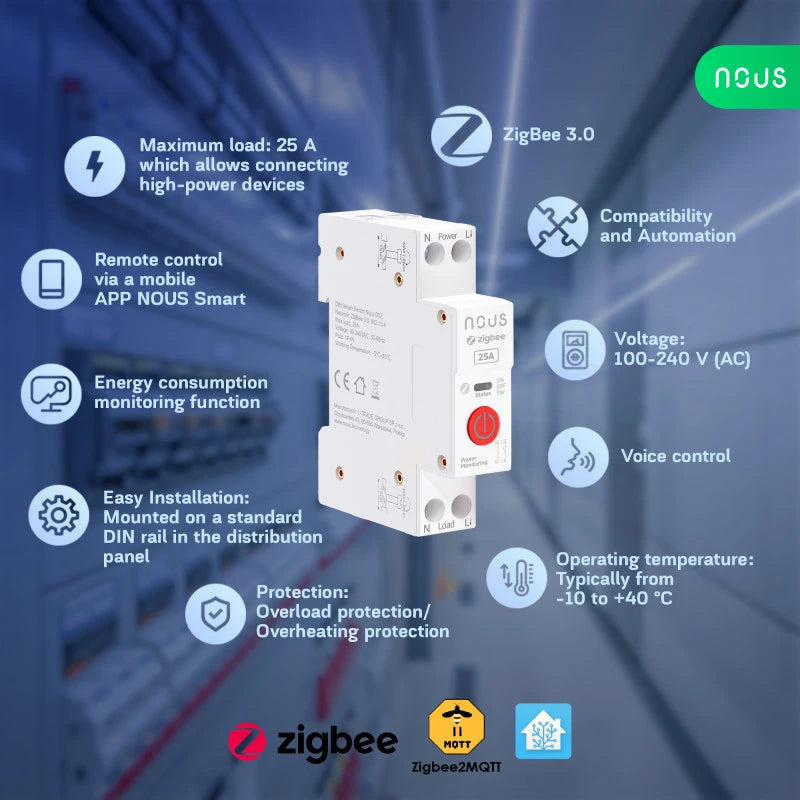

Features

• Remote control of high-power electrical appliances via smartphone

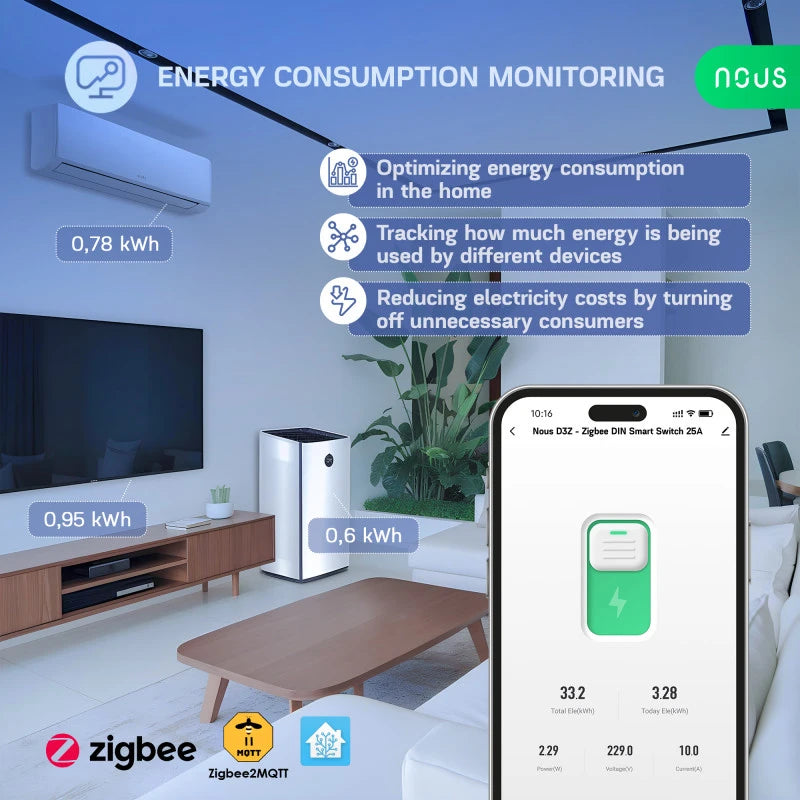

• Real-time energy consumption measurement for better energy efficiency

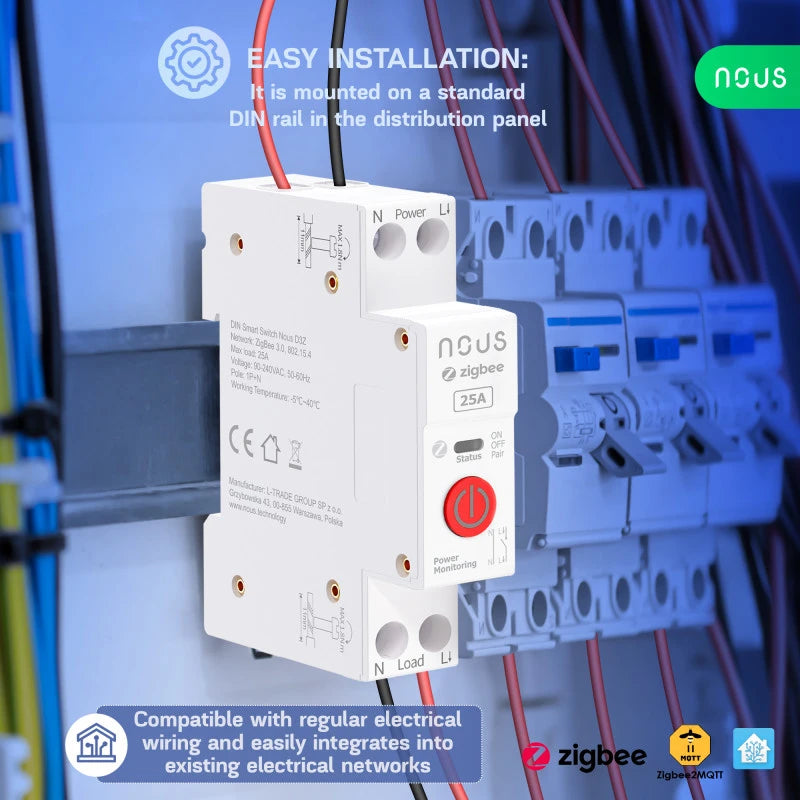

• DIN rail mounting for clean integration in electrical panels
• Supports loads up to 25A
• Compatible with Zigbee 3.0 ecosystems
• Voice control supported via Amazon Alexa and Google Home

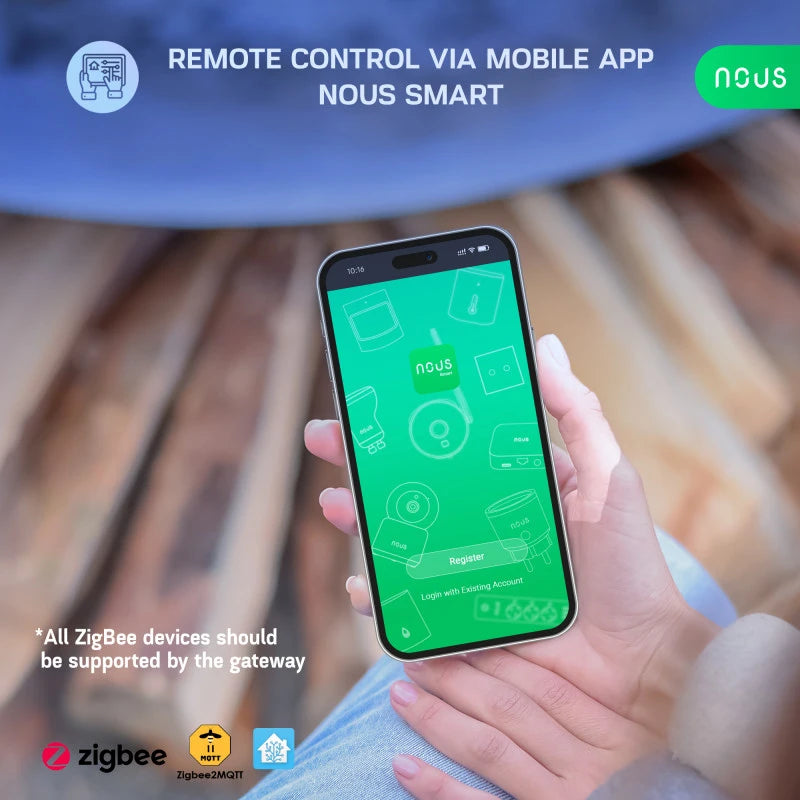

• Easy setup with the NOUS Smart Home app (iOS & Android)
• Certified CE and RoHS compliant

Technical Specifications

• Brand: NOUS
• Model: NOUS-D3Z
• Material: PC/ABS (V0 flame-retardant)
• Color: White
• Operating voltage: 90–240V
• Maximum load: 25A
• Operating temperature: -25°C to 70°C
• Humidity protection level: IP20
• Communication standard: IEEE 802.15.4
• Protocol: Zigbee 3.0
• Dimensions: 82 × 50 × 15 mm
• App control: NOUS Smart Home
• Voice assistants: Amazon Alexa, Google Home
• Certifications: CE, RoHS
• System requirements: iOS 8 / Android 4.4 or later
