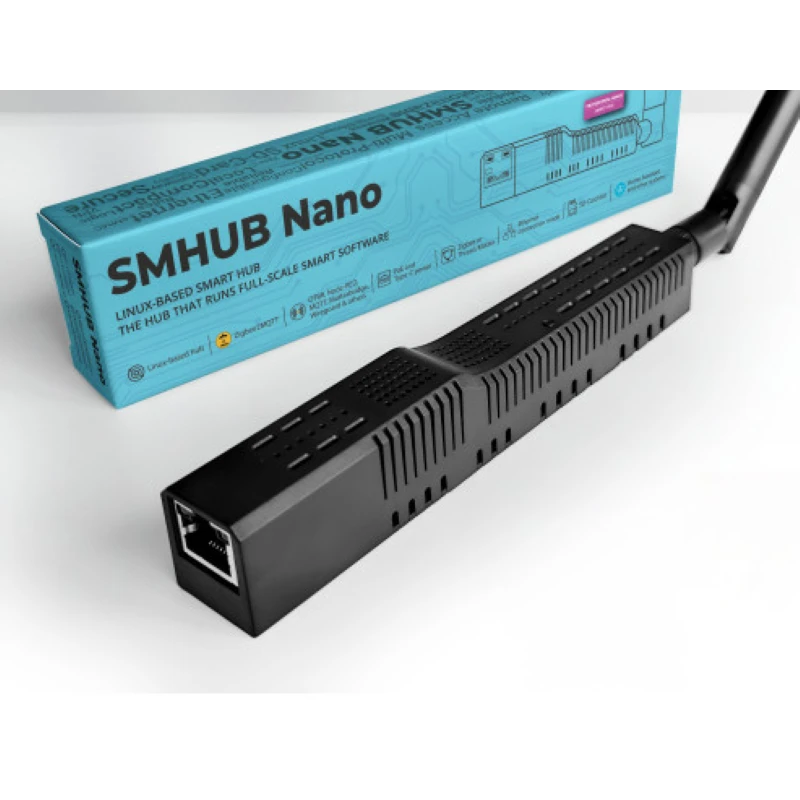

SMHUB Nano Mg24 – Mini Standalone Linux Smart Home Hub
The SMHUB Nano Mg24 is a compact and powerful home automation hub that operates 100% locally, with no need for a PC, Raspberry Pi, or cloud connection. Running a Linux-based system, it integrates essential automation tools like Zigbee2MQTT, Matter, Node-RED, and MQTT broker, offering maximum control and privacy in a silent, fanless design.
Key Features
All-in-one local automation hub with no external dependencies
Integrated Zigbee2MQTT for local Zigbee device control
Built-in Matter over Thread support for Google Home and Apple Home integration
Node-RED for local automation flows
Mosquitto MQTT broker preinstalled
Dual-band WiFi (2.4 / 5 GHz) + Bluetooth + Ethernet
WireGuard for secure remote access
Compact, fanless, silent design
Technical Specifications – SMHUB Nano Mg24
Main radio chip: EFR32MG24 (Zigbee / Thread / Matter)
WiFi: Dual-band 2.4 GHz / 5 GHz
Bluetooth: Integrated
Ethernet: 100 Mbps
Power: USB-C 5V or PoE via splitter
Storage: microSD slot
Indicators: System and network status LEDs
Other: Management/reset button, compact speaker
Software & Protocol Support
Zigbee2MQTT – Full Zigbee device support
Matter & Thread – Native integration with modern platforms
Node-RED – Visual automation editor
MQTT (Mosquitto) – Lightweight messaging for device communication
WireGuard – Secure VPN access
Support for NodeJS and Python scripting
Compatibility
Apple Home (HomeKit via Matter)
Google Home
SmartThings
Jeedom (via MQTT/API)
Home Assistant (via MQTT, network integrations)
Designed for advanced users and integrators, the SMHUB Nano Mg24 is ideal for building a fully local, powerful and privacy-respecting smart home.
