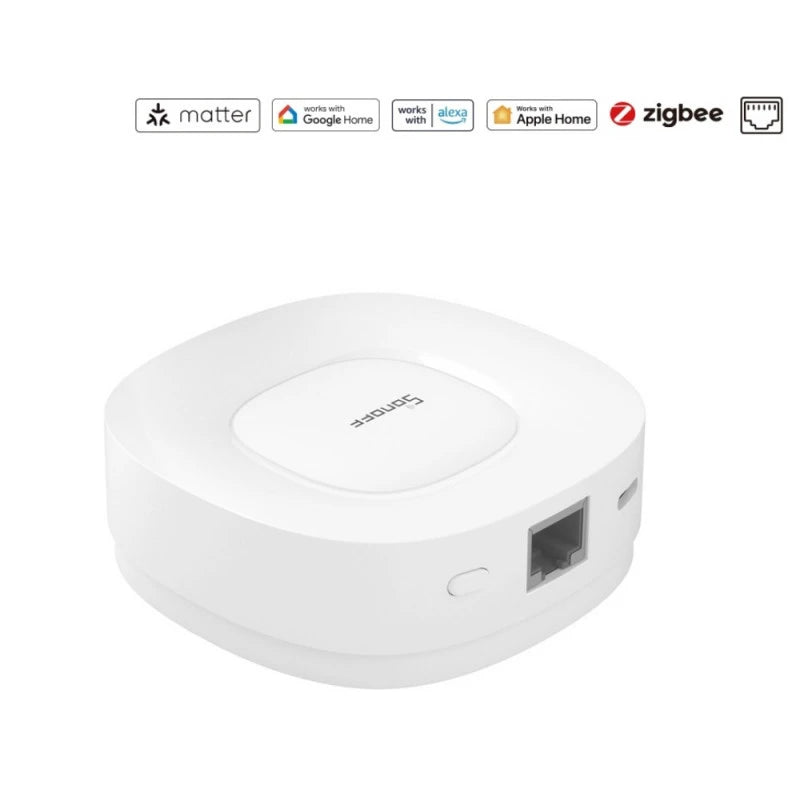

Sonoff - Zigbee and Matter Smart Hub ZBBRIDGE-U

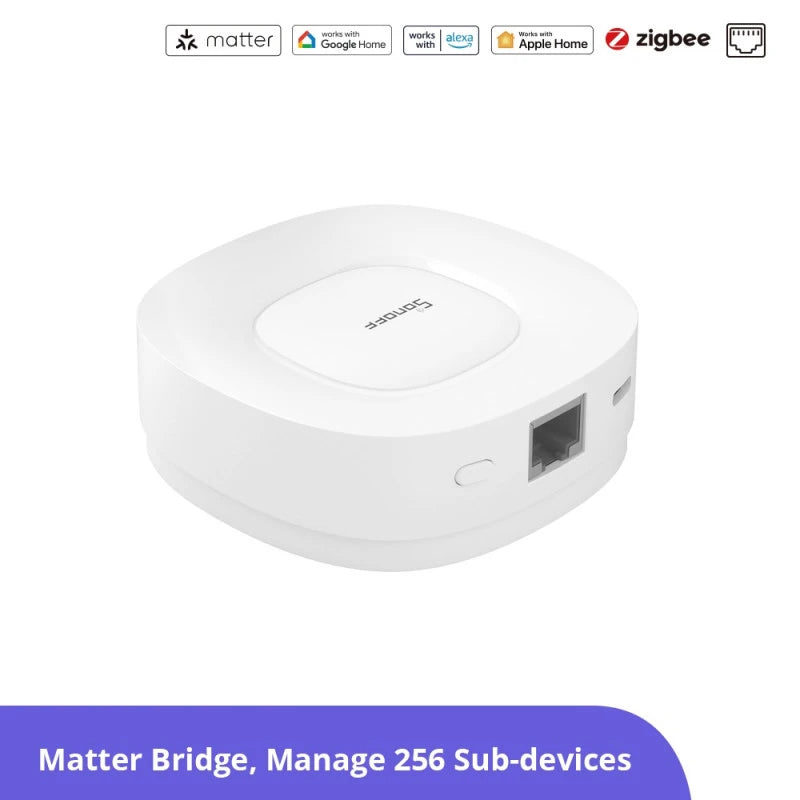

SONOFF ZBBridge-U – Zigbee and Matter Smart Home Hub

The SONOFF Zigbee Bridge Ultra (ZBBridge-U) is a powerful smart home hub designed to unify your Zigbee devices and integrate them into the Matter ecosystem. Compatible with the eWeLink app, it allows centralized management of up to 256 Zigbee sub-devices from SONOFF, with seamless Matter integration over the local network.

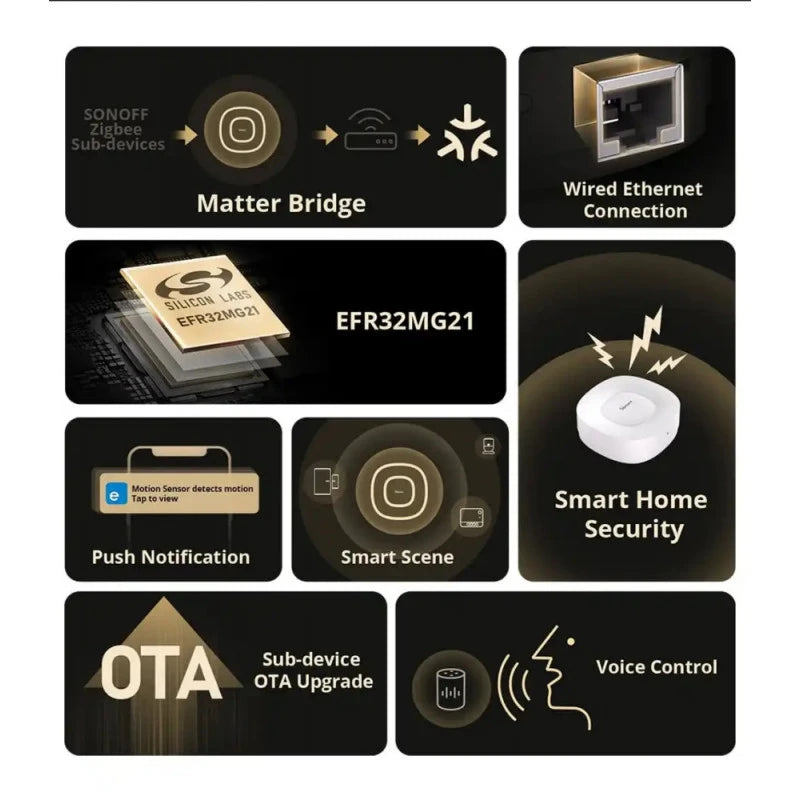

Main Features

• Connect and manage up to 256 Zigbee devices via the eWeLink app

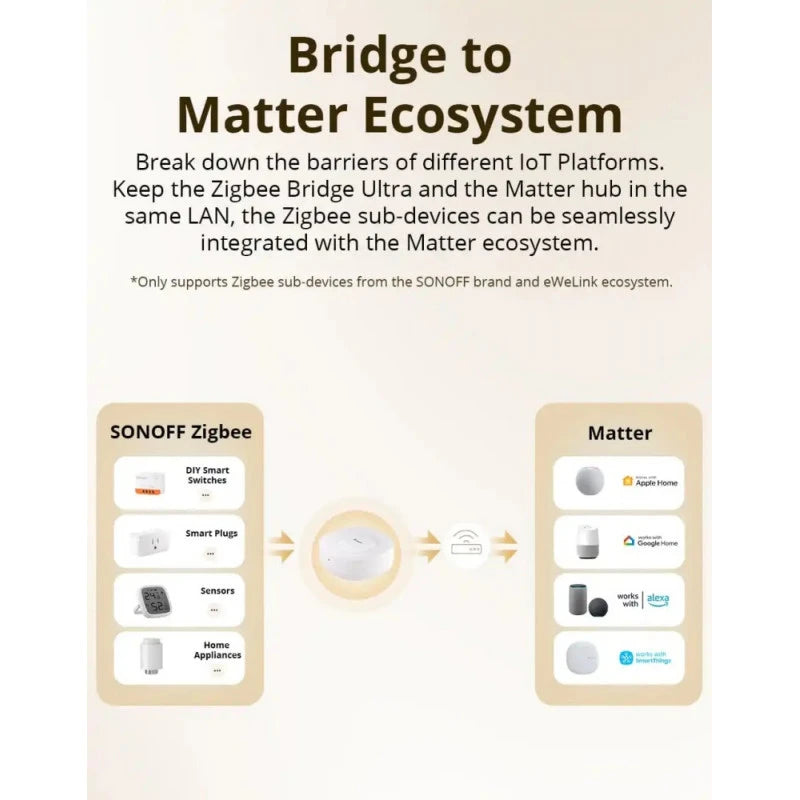

• Supports Matter integration over LAN for SONOFF Zigbee devices

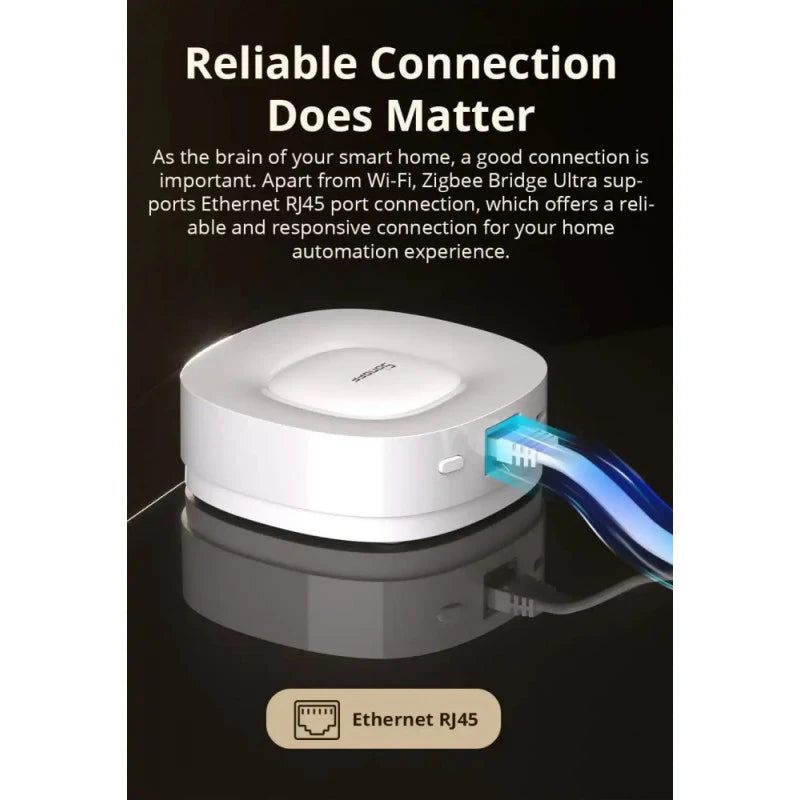

• Dual connectivity: Wi-Fi 2.4 GHz and Ethernet RJ45

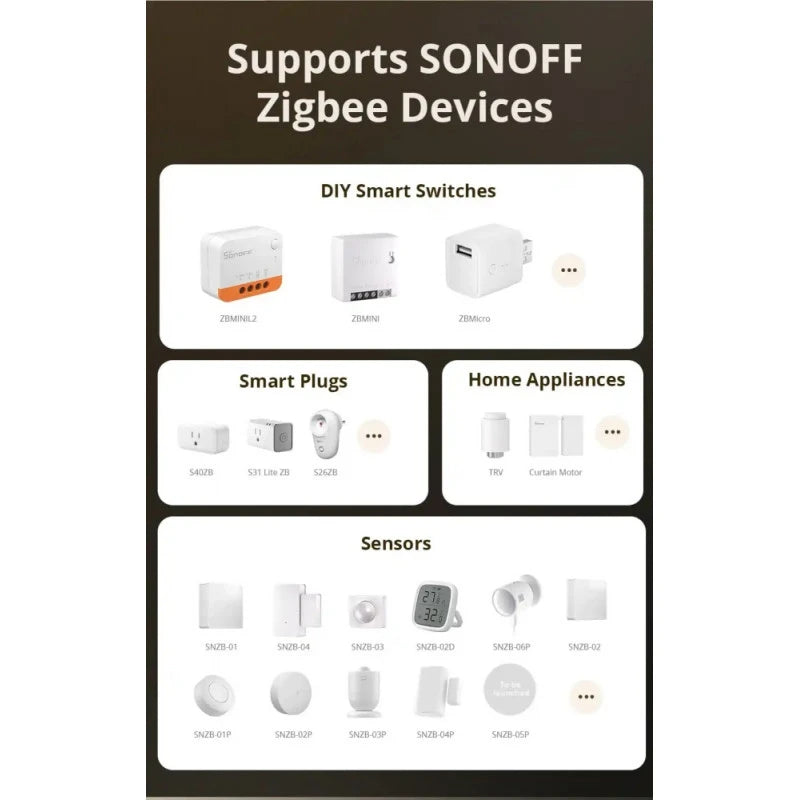

• Compatible with Zigbee switches, sensors, plugs, and more

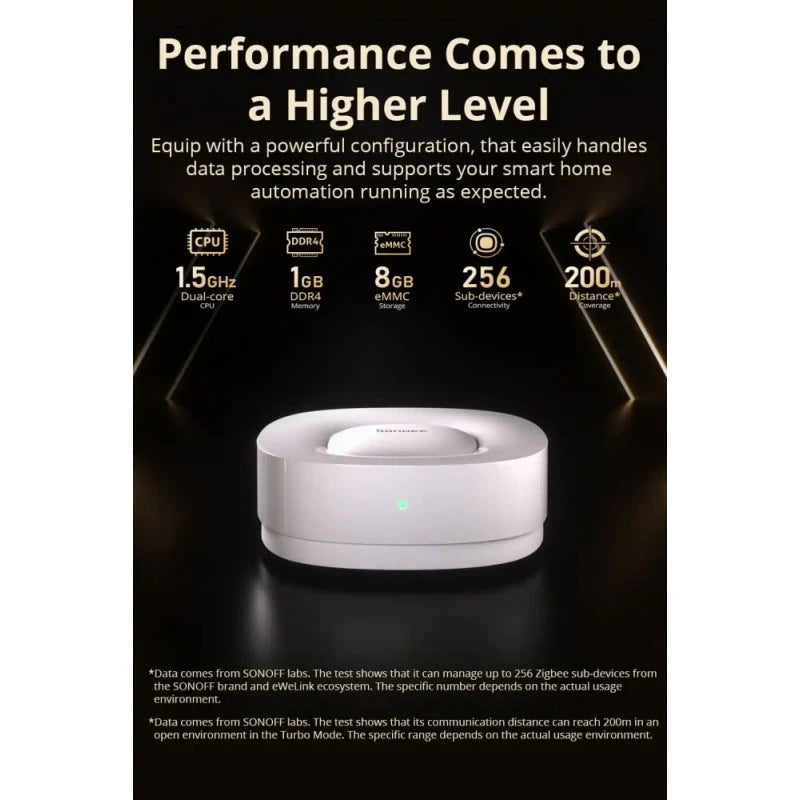

• Equipped with EFR32MG21 chip and RV1109 dual-core processor
• Reliable performance with 1 GB DDR4 RAM and 8 GB eMMC storage
• Quick setup with Type-C power supply and wired Ethernet option

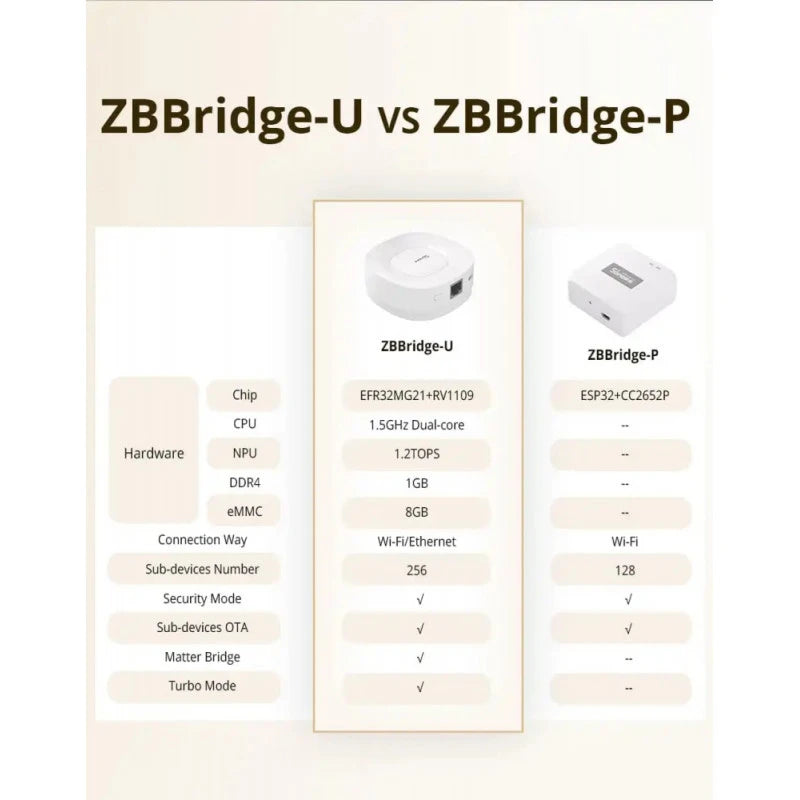

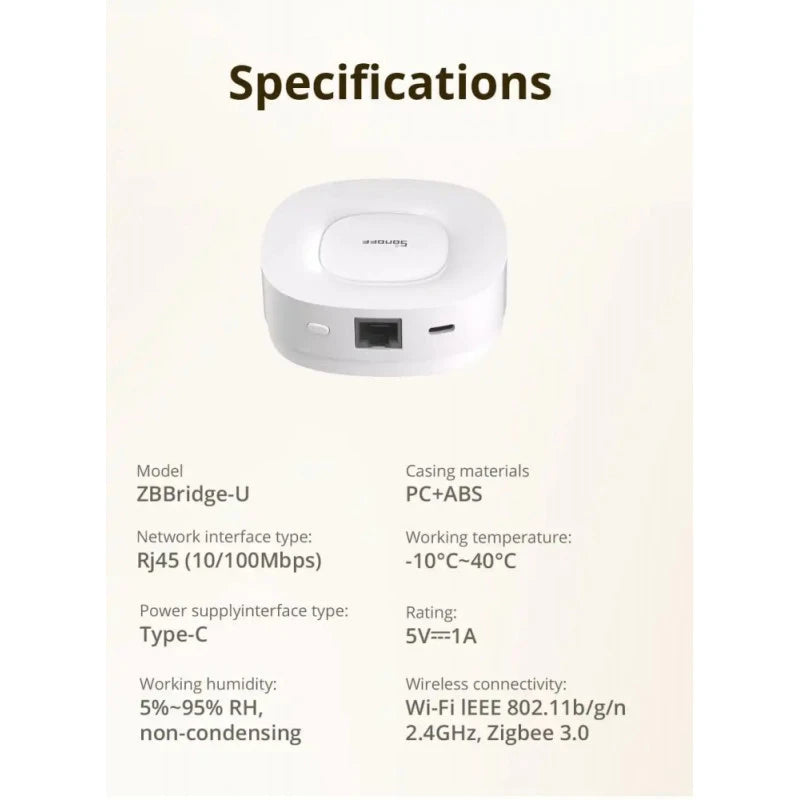

Technical Specifications

• Model: ZBBridge-U
• Network: RJ45 (10/100 Mbps)
• Power: 5V 1A via USB Type-C
• Wi-Fi: IEEE 802.11b/g/n 2.4 GHz
• Zigbee Version: Zigbee 3.0
• MCU: RV1109 + EFR32MG21
• Memory: 1 GB DDR4
• Storage: 8 GB eMMC
• Operating Temperature: -10°C to 40°C
• Humidity: 5% to 95% RH (non-condensing)
• Materials: PC + ABS
• Certifications: CE, FCC, ISED, RoHS
• Standard: EN 62368-1

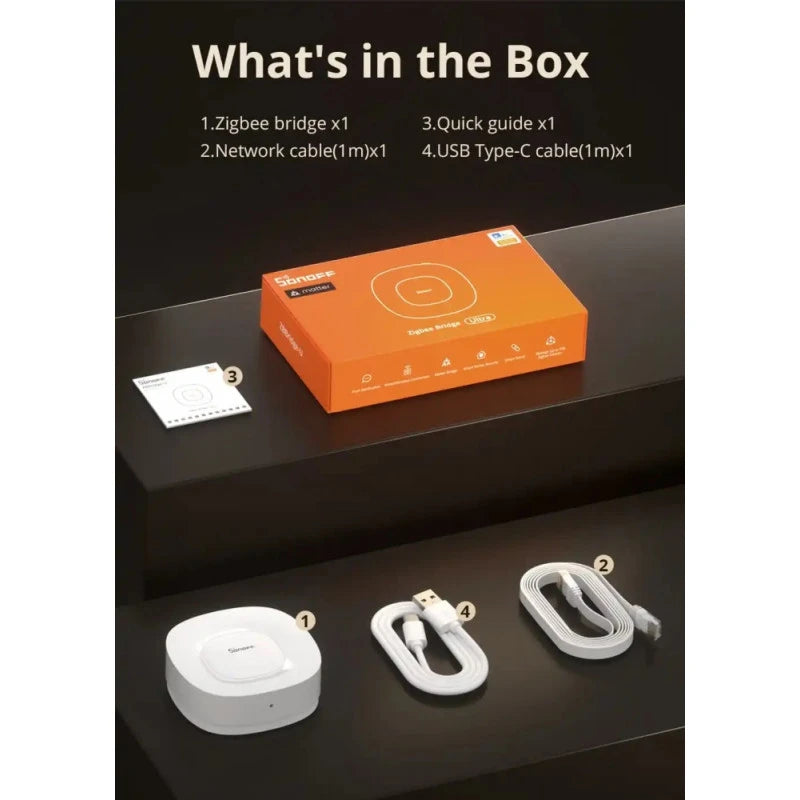

Package Contents

• 1 × SONOFF Zigbee Bridge Ultra
• 1 × Type-C Power Cable
• 1 × RJ45 Ethernet Cable
• 1 × User Manual
