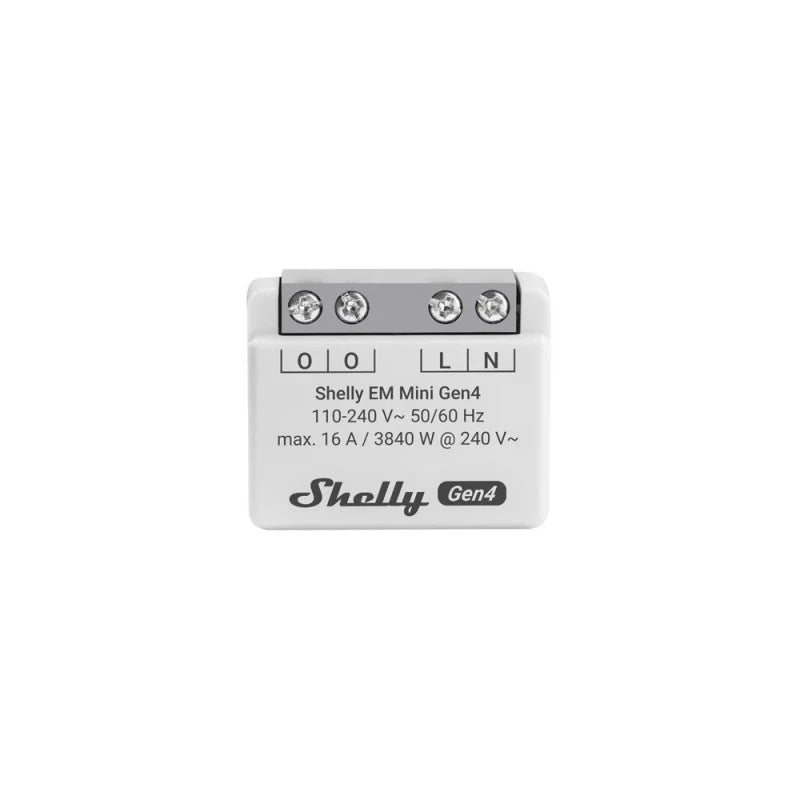

Shelly - Wifi, Zigbee, Matter Energy Meter Shelly EM Mini Gen4

Shelly EM Mini Gen4 – Compact Smart Energy Meter (Matter, Wi-Fi, Zigbee, Bluetooth)

The Shelly EM Mini Gen4 is a powerful yet ultra-compact energy meter designed to monitor the consumption of any single-phase circuit up to 16 A. With support for Wi-Fi, Zigbee 3.0, Bluetooth LE, and Matter, it integrates effortlessly into modern home automation ecosystems while enabling precise energy tracking and smart control – all without needing a cloud connection.

Key Features:

• Multi-Protocol Connectivity: Works over Wi-Fi 2.4 GHz, Zigbee 3.0, and Bluetooth Low Energy.
• Matter Compatible: Seamless integration across platforms like Apple Home, Google Home, Amazon Alexa, and Home Assistant.
• Real-Time Energy Monitoring: Active power and energy tracking up to 16 A / 3840 W.
• Automation Triggers: Initiate actions based on energy use for optimized consumption and smart routines.
• Offline Operation: Fully functional without the cloud; local data storage with CSV/JSON export.

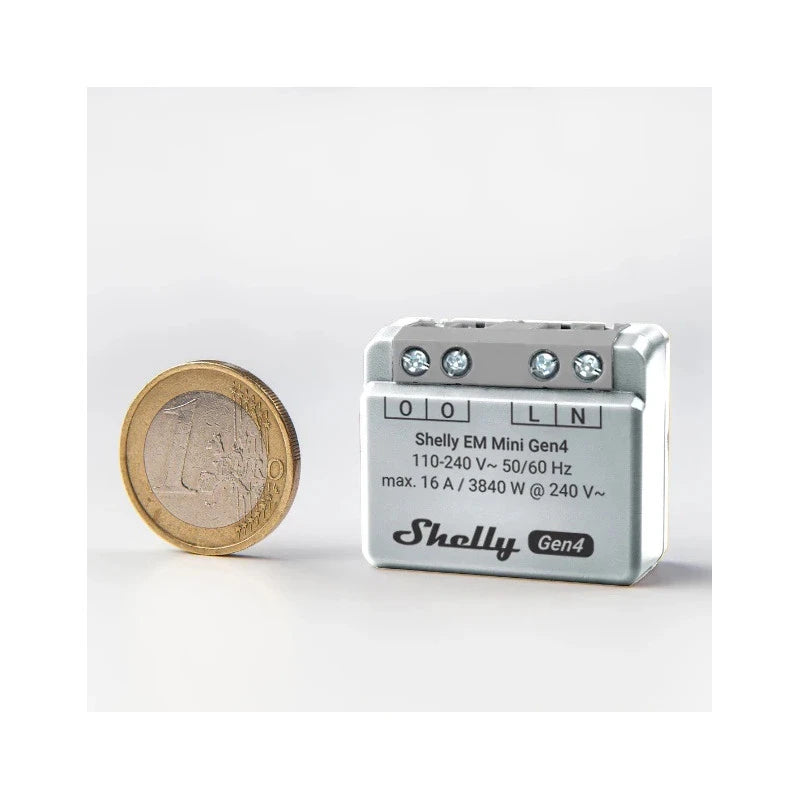

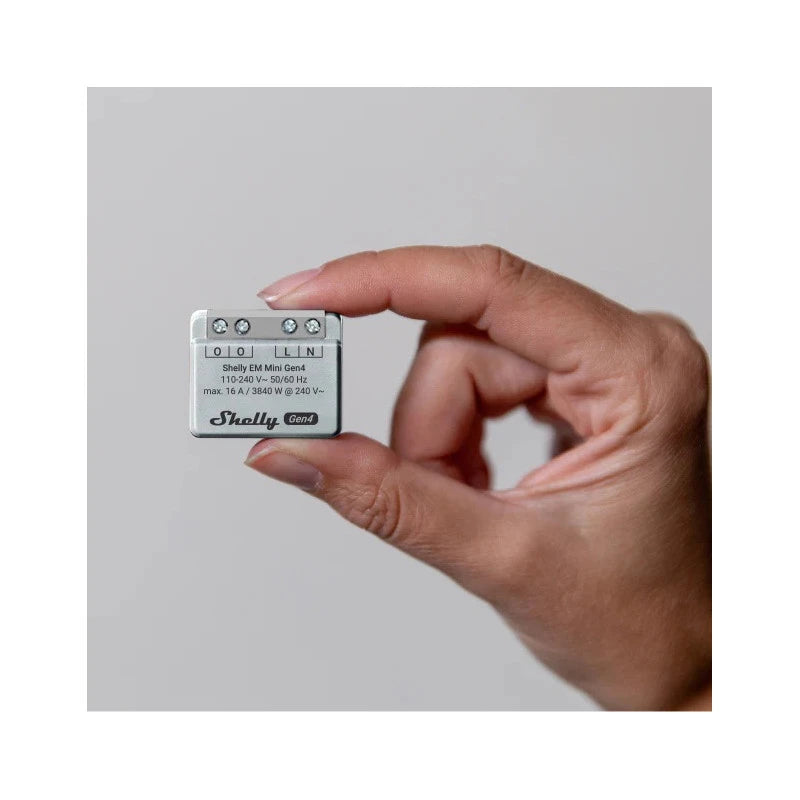

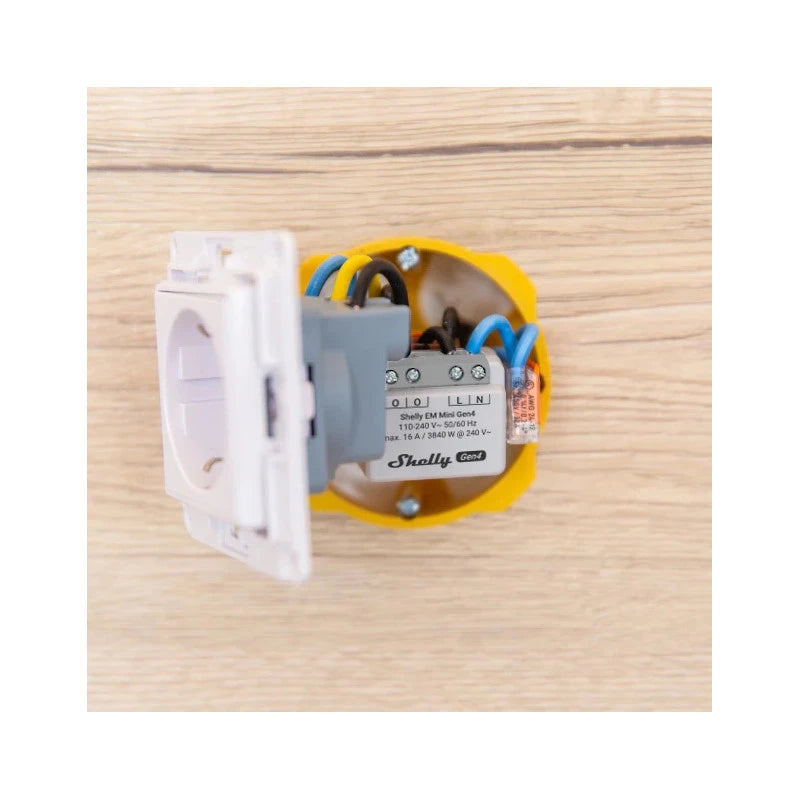

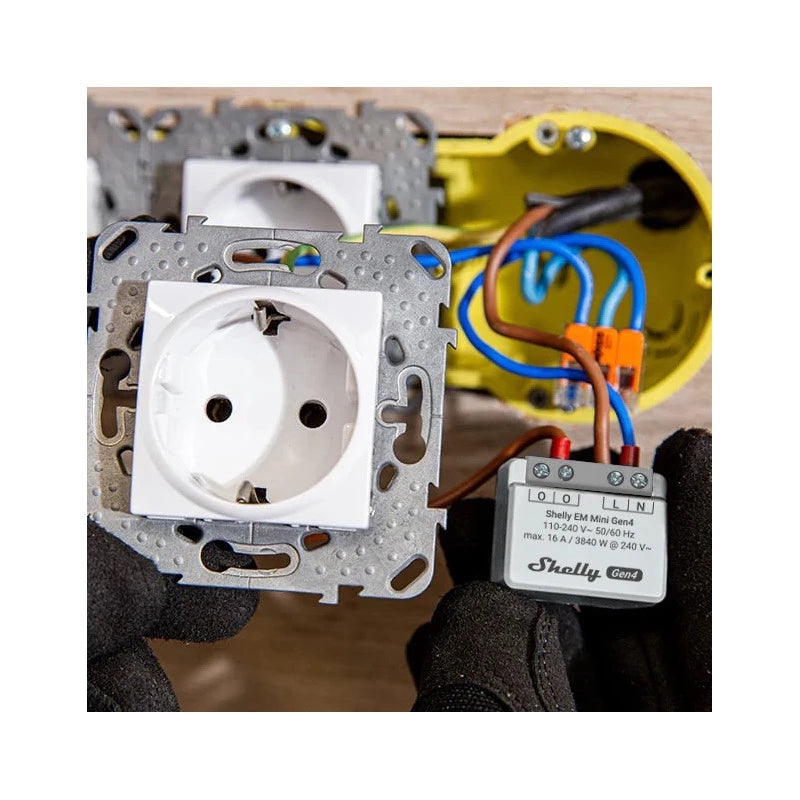

• Compact Form Factor: Only 29 × 34 × 16 mm, ideal for wall boxes or electrical cabinets.
• Built-in LED Indicator: For quick pairing, reset, and device status.

Use Cases:

• Track power usage of appliances (e.g. water heater, washing machine, pump).
• Measure energy use per room or per circuit in homes or commercial spaces.
• Automate based on power thresholds (e.g. alert on excessive usage).
• Extend Zigbee range or use as a Bluetooth gateway in your smart network.

Technical Specifications:

• Model: Shelly EM Mini Gen4
• Measurement Type: 1-channel, single-phase (up to 16 A / 3840 W)
• Power Supply: 110–240 V AC
• Connectivity: Wi-Fi 802.11 b/g/n (2.4 GHz), Zigbee 3.0, Bluetooth LE
• Matter Compatible: Yes
• Power Consumption: Less than 1 W
• Operating Temperature: -20 °C to +40 °C
• Humidity Range: 30% – 70% RH
• Protection Rating: IP20 (indoor use only)
• Dimensions: 29 × 34 × 16 mm
• Weight: 13 g

Smart Home Compatibility:

• Voice Assistants: Amazon Alexa, Google Assistant
• Home Automation: Home Assistant, SmartThings, Apple HomeKit (via Matter), and more

What's in the Box:

• 1 × Shelly EM Mini Gen4
• Quick Start Guide

Warranty:

2 years manufacturer warranty
