Aeotec - Zigbee Roller Shutter Micromodule Pico Shutter

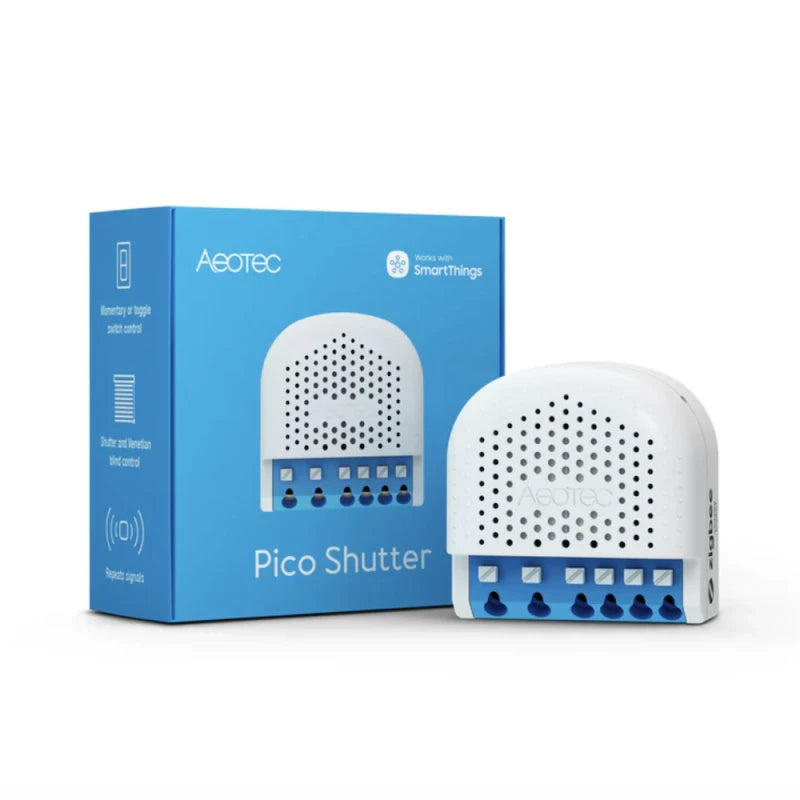

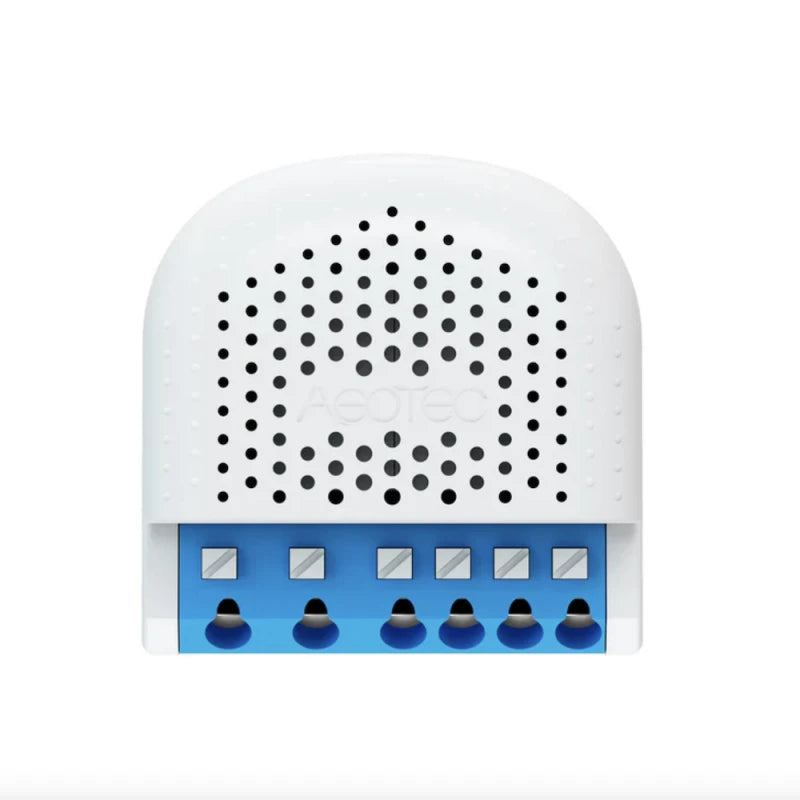

Aeotec Pico Shutter – Zigbee Smart Roller Shutter Micromodule

Transform your home into a smart living space with the Aeotec Pico Shutter, a Zigbee 3.0 micromodule designed to automate your roller shutters, blinds, and motorized gates. With seamless integration into SmartThings and Matter-compatible ecosystems, this compact module offers precise control, advanced automation, and easy installation.

Key Features

• Precise Blind Control: Manage both the position and angle of your blinds for optimal lighting.
• Scene Activation: Trigger SmartThings routines with single, double, or triple presses on connected switches.
• Switch Compatibility: Supports push buttons, toggle switches, SPDT, and 2-way switches with automatic detection.
• Smart Integration: Fully compatible with SmartThings Edge drivers, Zigbee 3.0, and Touchlink pairing.

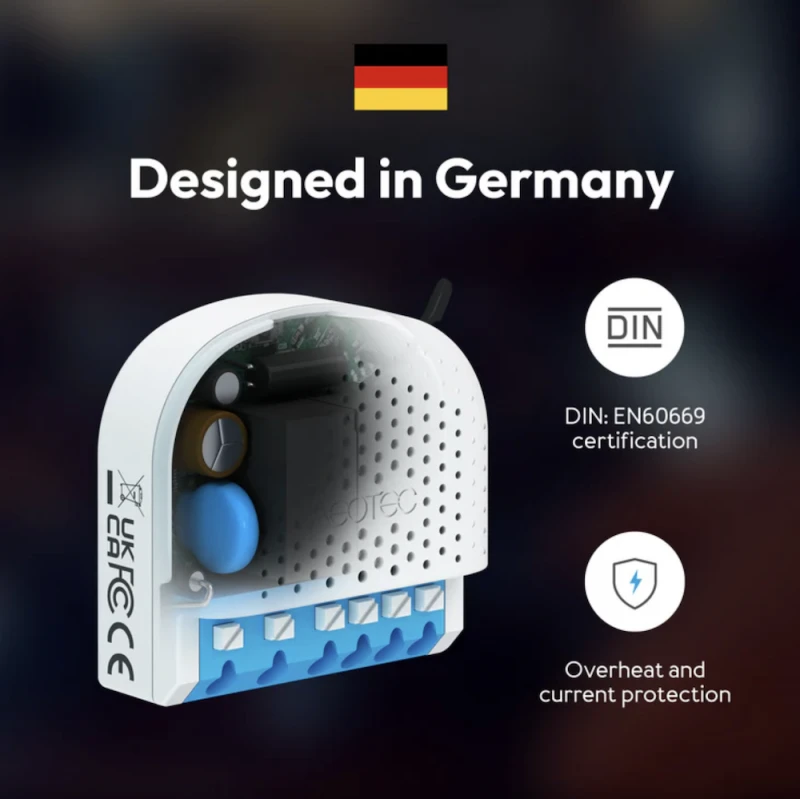

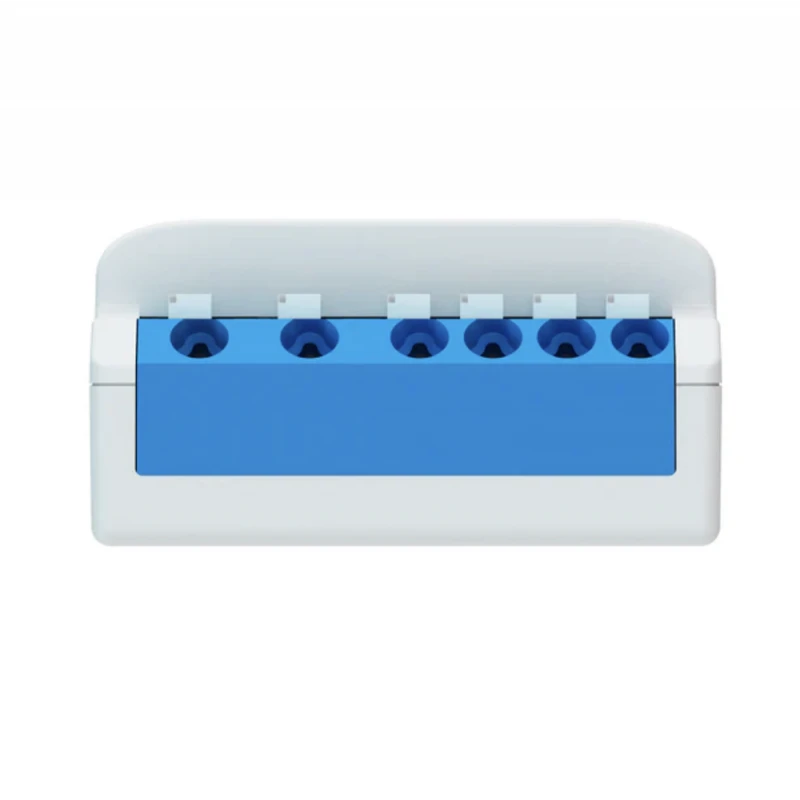

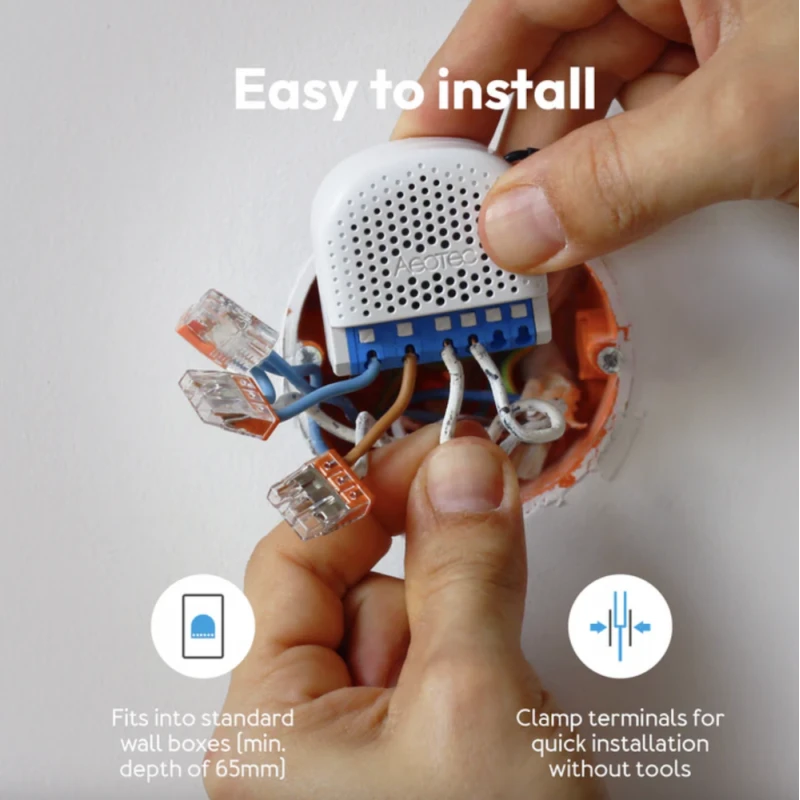

• Easy Installation: DIN EN60669 certified with spring clip terminals – no screws required.
• Advanced Protection: Overcurrent, overvoltage, and temperature protection ensure long-term safety and reliability.

Technical Specifications

• Model: Aeotec Pico Shutter
• Protocol: Zigbee 3.0 (EFR32MG21 chipset)
• Compatibility: SmartThings, Zigbee ZHA/ZLL profiles, Matter-ready
• Power Supply: 110–230 V~, 50/60 Hz
• Max Load: Resistive – 3.6 A
• Max Consumption: 1 W
• Switch Support: NC/NO, push button, toggle, 2-way, SPDT
• Certifications: DIN EN60669
• Protection: Overtemperature, overvoltage, temperature sensor built-in
• Operating Temp: 0°C to 40°C
• Humidity Range: 8%–80% RH
• Signal Range: >50m indoors, up to 100m outdoors

Smarter Home Automation

• Program shutters and blinds based on your daily habits
• Control garage doors, gates, and other motorized systems
• Monitor and control energy usage with SmartThings

Note: Zigbee hub (e.g., SmartThings) required for remote control and smart features.
