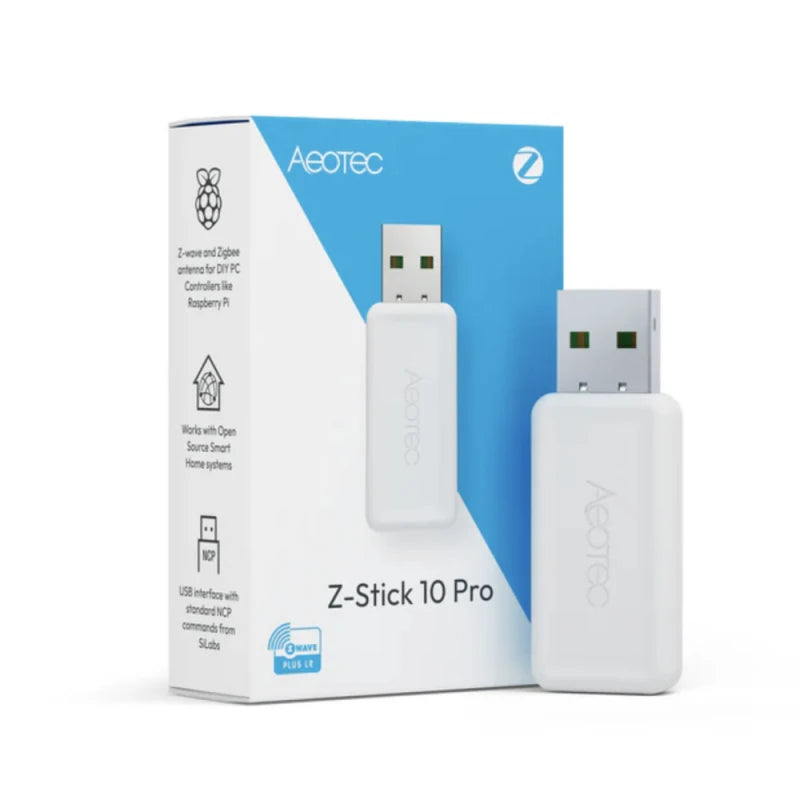

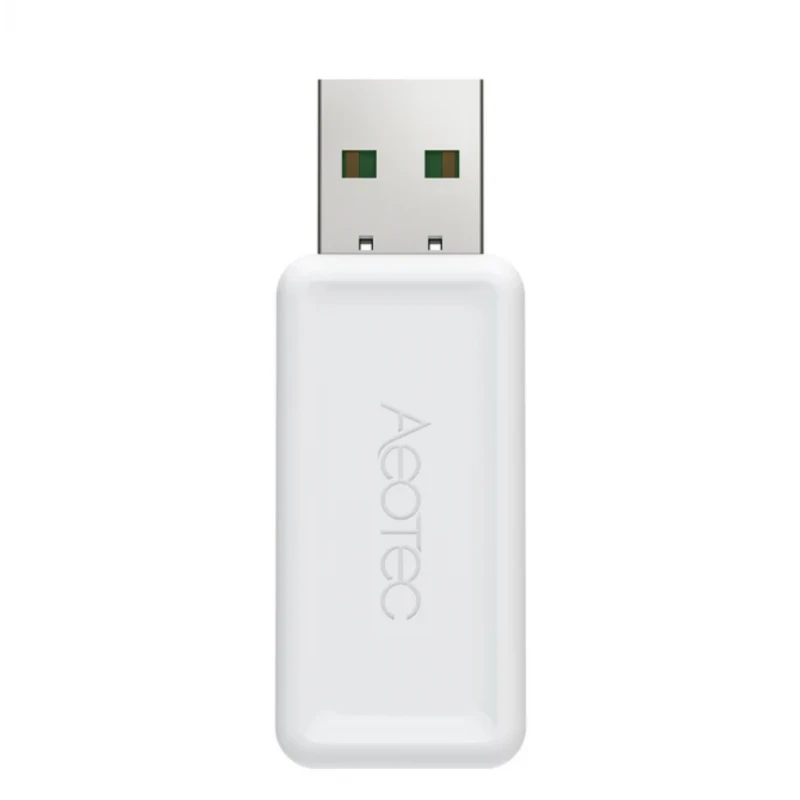

Aeotec - Z-Wave+ 800 Long Range and Zigbee USB Controller Z-Stick 10 Pro

Aeotec Z-Stick 10 Pro: Dual Z-Wave & Zigbee Smart Home USB Controller

The Aeotec Z-Stick 10 Pro (AEO_ZWA060) is a next-generation USB dongle that combines both Z-Wave+ 800 series and Zigbee 3.0 technologies into a compact, high-performance controller. Designed for home automation enthusiasts, it enables full local control of smart home devices without relying on cloud services, ensuring enhanced privacy, responsiveness, and reliability.

With its support for both protocols, the Z-Stick 10 Pro offers wide compatibility with a vast range of smart devices and open-source platforms like HomeAssistant, OpenHAB, and Zigbee2MQTT. Whether you use Windows, Linux, macOS, or Raspberry Pi, this dongle integrates seamlessly with your setup.

Main Features

• Dual protocol support: Z-Wave+ 800 and Zigbee 3.0 in a single USB stick
• Z-Wave Long Range support: up to 1.6 km RF communication
• Local-only operation: faster response, secure, no cloud dependency
• Compact USB-A design to avoid blocking adjacent ports
• Cross-platform compatibility: Windows, Linux, macOS, Raspberry Pi
• Supports popular platforms: HomeAssistant, OpenHAB, Zigbee2MQTT
• Built-in UART bridge for improved USB communication

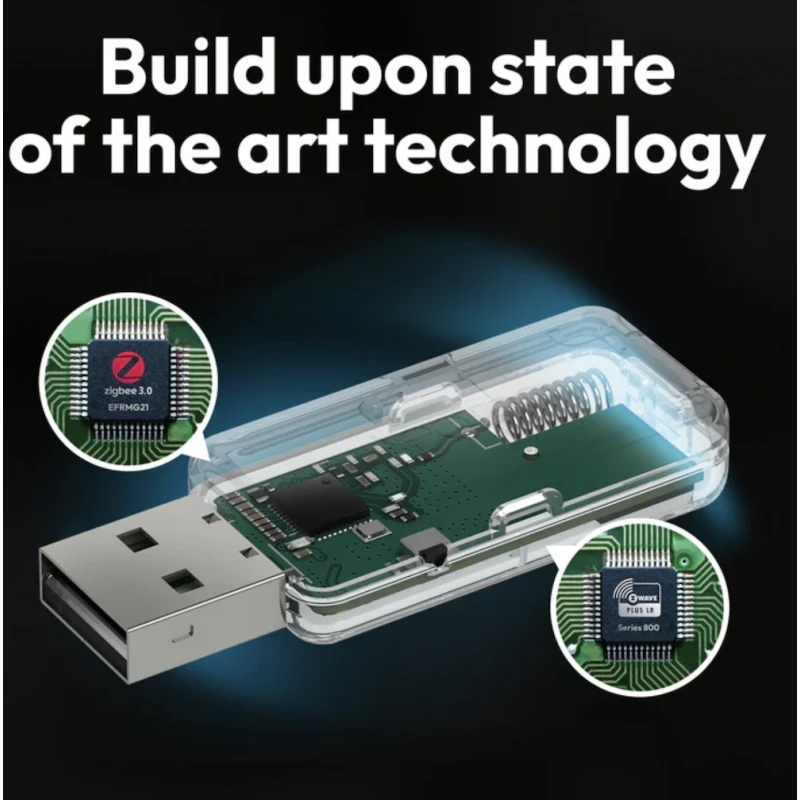

• Advanced chipset: Silicon Labs EFR32ZG23 (Z-Wave), EFR32MG21 (Zigbee)
• Robust, future-ready firmware and serial API support

Technical Specifications

• Model: AEO_ZWA060 (Z-Stick 10 Pro)
• Z-Wave SoC: Silicon Labs EFR32ZG23
• Zigbee SoC: Silicon Labs EFR32MG21
• Z-Wave SDK: Version 7.22.0 or later
• Zigbee frequency: 2405 – 2475 MHz
• Zigbee version: Zigbee 3.0
• Z-Wave Long Range: Yes (up to 1.6 km in open field)
• EZSP version: 0x08
• Battery version: 6.10.9
• Power supply: USB DC 4.75 V – 5.25 V
• Connection type: USB-A with USB_UART Bridge
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Operating humidity: 8% to 80%
• Tested compatibility:
  • Raspberry Pi 3 and newer
  • Windows 10
  • Linux OS
  • macOS / OSX
