Aqara - Roller Shade Controller T1S

Aqara Roller Shade Controller T1S – Smart Motor with Matter and Zigbee

The Aqara Roller Shade Controller T1S is a discreet yet powerful smart motor that transforms your roller shades into intelligent, automated devices. Designed for seamless integration with Aqara Home and third-party ecosystems, it supports Matter over Bridge and offers quiet, precise control over your window coverings for a comfortable, energy-efficient home.

Whether you're automating shades to open at sunrise, close for privacy at sunset, or adjusting the light throughout the day, the T1S adapts to your lifestyle with ease and elegance.

Key Features

• Matter over Bridge support: Integrates with Apple Home, Siri, Alexa, Google, and more (via compatible hub).
• High-speed, low-noise motor: Smooth and quiet operation enhances comfort and peace of mind.
• Opening percentage & presets: Set exact opening levels for perfect light and privacy control.
• Configurable schedules: Automate shade behavior based on time, activity, or scenes.
• Support for multiple blind types: Works with roller shades, Roman blinds, and more.
• Ultra-low idle power consumption: Energy efficient and always ready.

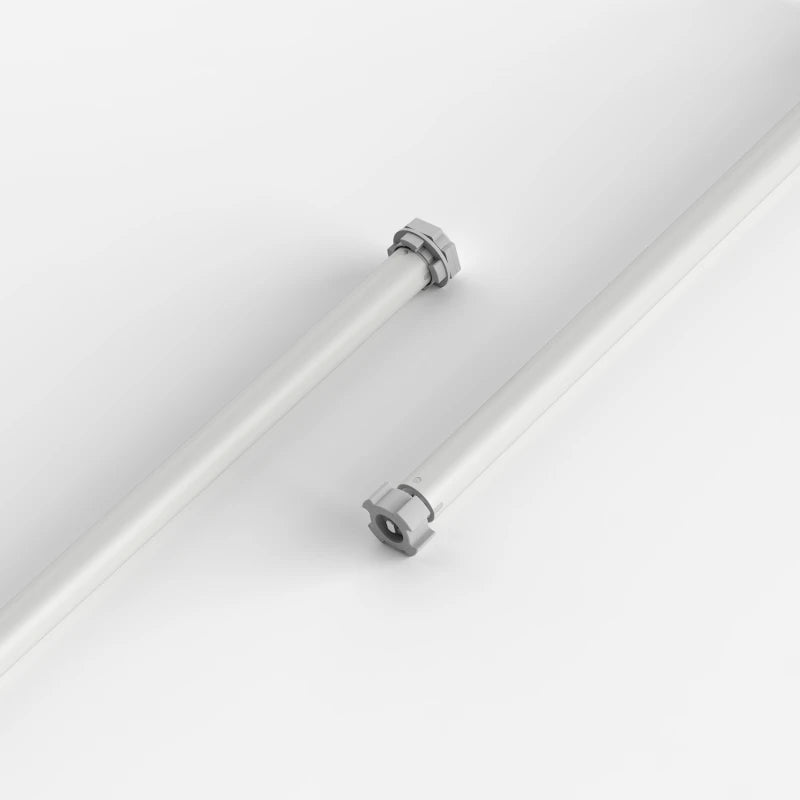

• Sleek and invisible design: Installs inside the shade tube, maintaining a clean aesthetic.

Technical Specifications

• Model: CD-M03D
• Motor pipe diameter: 25 mm
• Motor length: 465 mm
• Cable length: 1.2 m
• Rated voltage: 100–240V~ 50/60Hz
• Rated current: 0.3 A
• Rated power: 20 W
• Rated torque: 1.2 N·m
• Rotor speed: 25 rpm
• Maximum load: 6 kg
• Operating temperature: -20°C ~ +55°C
• Operating humidity: 10–95% RH (non-condensing)
• Wireless protocol: Zigbee 3.0 (2405–2480 MHz)
• Working system: S2 4 minutes
• Insulation grade: Class A

What’s in the Box

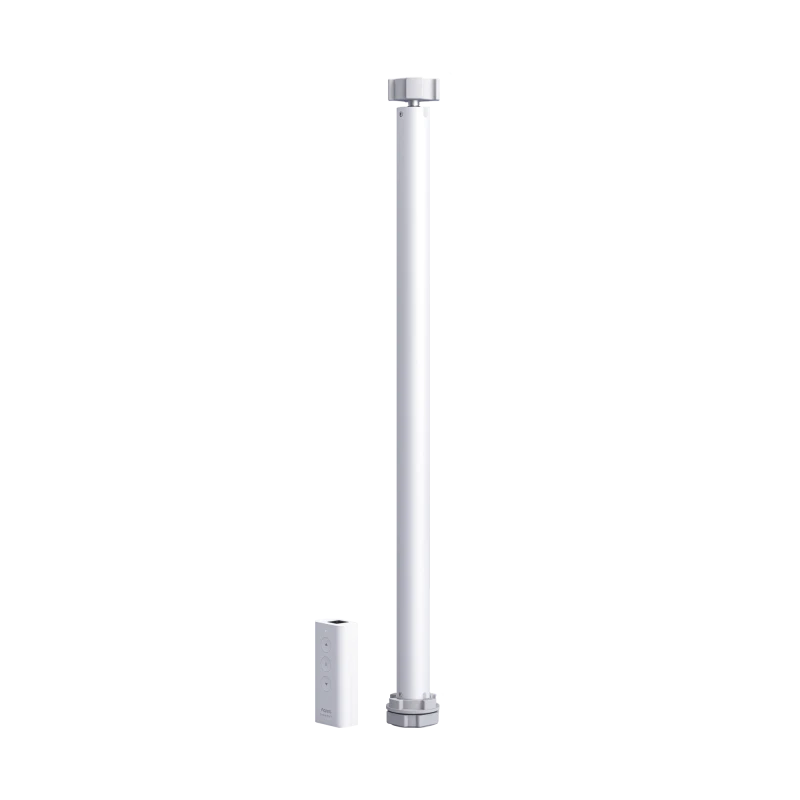

• 1 × Aqara Roller Shade Controller T1S
• 1 × Control Box
• 1 × Splash-proof Bag
• 1 × User Manual

Perfect For:

• Smart shade automation with Matter and Zigbee support
• Silent and elegant smart home upgrades
• Precise light and privacy control via app, schedules, or voice
