Aqara - ZigBee 3.0 and Matter Thread Dimmer Switch H2 EU White

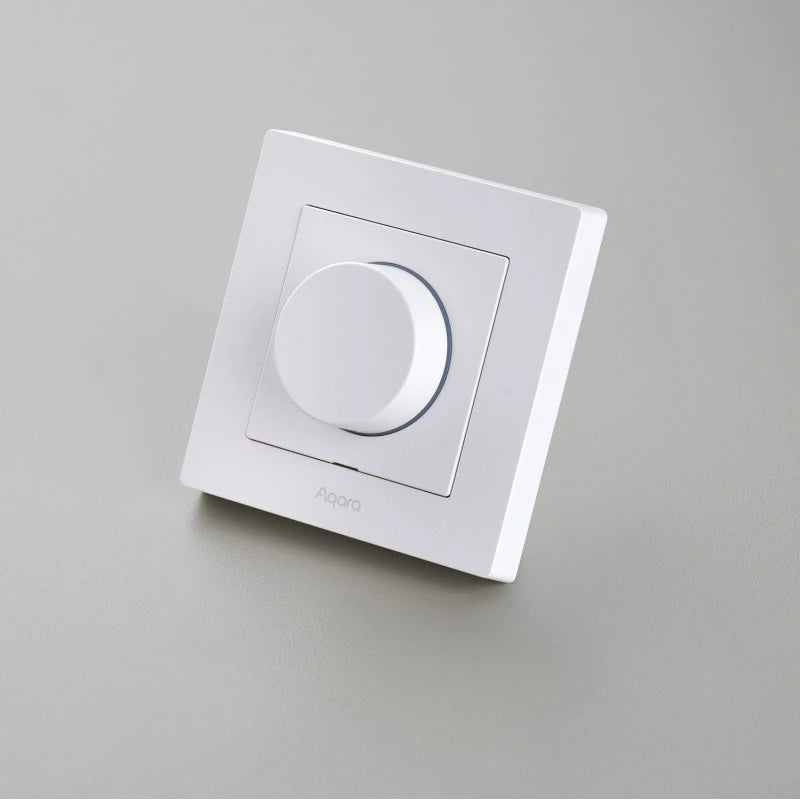

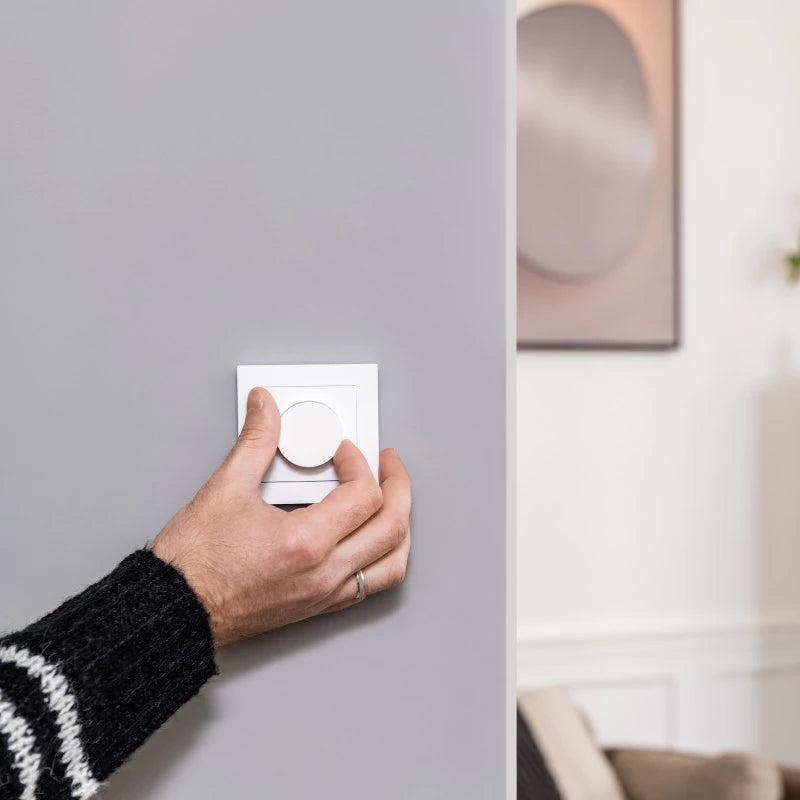

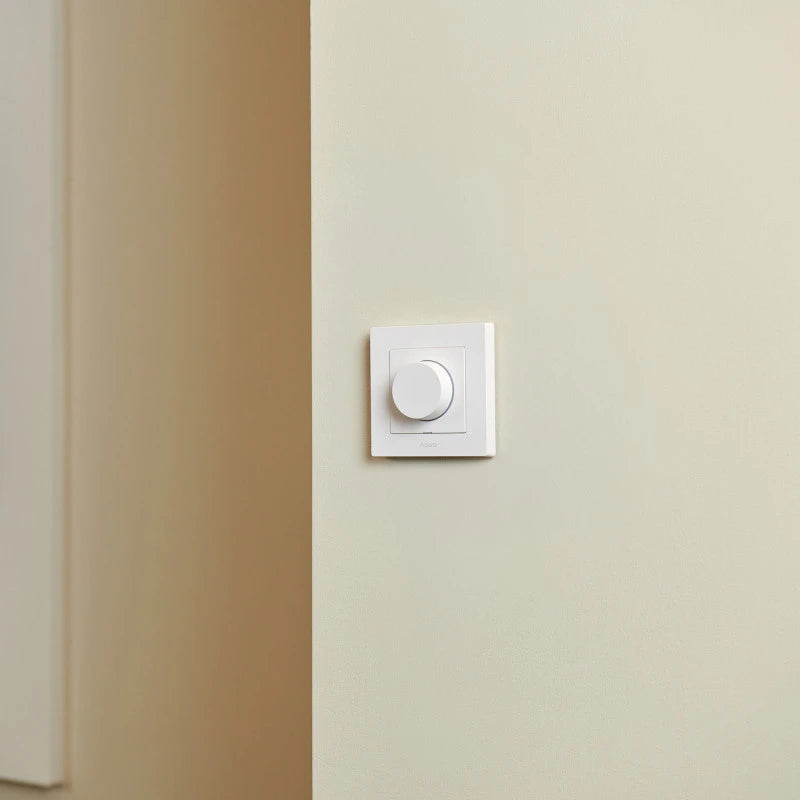

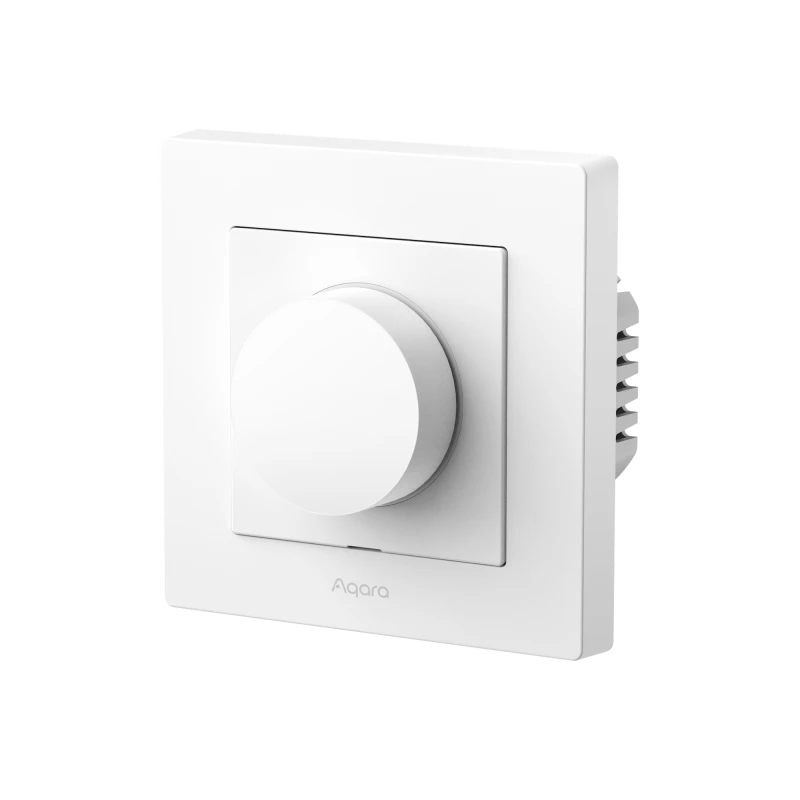

Aqara Dimmer Switch H2 EU – Smart Rotary Dimmer with Thread and Zigbee

The Aqara Dimmer Switch H2 EU is a powerful, multi-protocol rotary dimmer switch designed to work with or without a neutral wire. It supports both Zigbee and Matter over Thread for broad compatibility across smart home platforms such as Apple HomeKit, Google Home, and more. With precise dimming, energy monitoring, and wide lamp compatibility, this dimmer ensures smooth, reliable performance for any lighting setup.

Key Features:

• Thread & Zigbee Support: Dual protocol support for maximum compatibility and smart home flexibility.
• Neutral / No-Neutral Compatible: Works with or without a neutral wire for hassle-free installation.
• Rotary Dial Control: Push to switch on/off, rotate for 1–100% dimming with adjustable response time.
• Wide Light Compatibility: Supports incandescent, halogen, dimmable LED, and CFL lighting.
• Trailing & Leading Edge Dimming: Customizable dimming mode for stable performance with different loads.
• Power Monitoring: Daily, weekly, and monthly energy reports help reduce consumption and optimize use.
• Custom Brightness Limits: Set min/max brightness to avoid flickering and improve stability.
• Standard 55 mm Format: Compatible with Gira System 55, Merten M, and other modular frames.

Technical Specifications:

• Model: KD-R01D
• Dimensions: 86 × 86 × 55.45 mm
• Operating Temperature: 0°C ~ 40°C
• Operating Humidity: 0–95% RH (no condensation)
• Electrical Rating: 220–240V AC, 50/60Hz
• Minimum Power: 4W (via Matter), 9W (other setups)
• Rated Load:
  • Incandescent / Halogen: ≤ 300W
  • Dimmable LED / CFL: ≤ 200W
• Wireless Protocols: Thread / Zigbee / Bluetooth

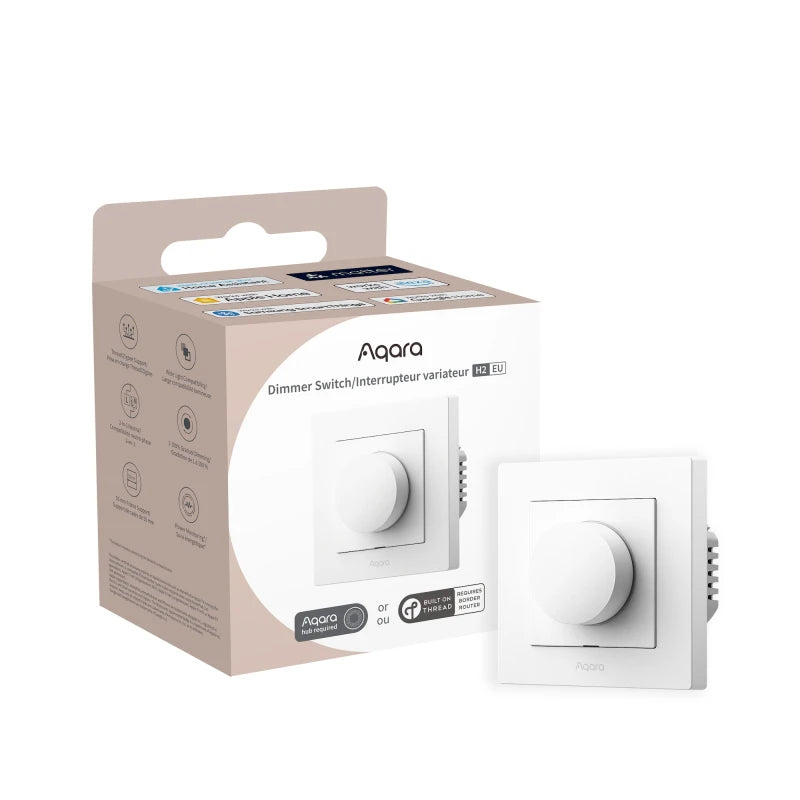

In the Box:

• 1 × Dimmer Switch H2 EU
• 1 × User Manual
• 1 × Compliance Statement
• 1 × Screw Kit
