Lixee - Universal WiFi, Bluetooth, Zigbee card LiXee-ZiWifi32 Lite

LiXee-ZiWifi32 Lite: Wi-Fi, Bluetooth, and Zigbee Universal Board

The LiXee-ZiWifi32 Lite is a versatile development board that integrates Wi-Fi, Bluetooth 5.0, and Zigbee 3.0 connectivity, making it an ideal choice for DIY home automation and multi-protocol projects. Depending on the firmware installed, it can serve as a Zigbee bridge, a prototype Matter gateway (currently in development), a LiXee-Box, or a sensor platform.

This flexible board is compatible with Jeedom, Domoticz, and Home Assistant, ensuring seamless integration into various smart home ecosystems. It’s a powerful tool for developers and hobbyists aiming to create advanced automation systems with high connectivity and modularity.

Main Features

• Triple connectivity: Wi-Fi 802.11b/g/n, Bluetooth 5.0, and Zigbee 3.0
• Supports multiple firmware options: ZiGate+ USB, LiXee-ZiBridge, LiXee-Box via MQTT
• USB-A programming port (Arduino IDE / PlatformIO compatible)
• ESP/FTDI switch to redirect UART0 to ESP32 or ZiGate module
• 12 GPIOs available for sensor and actuator integration
• Compatible with major automation platforms: Jeedom, Domoticz, and Home Assistant

Technical Specifications

• Reference: ZIWIFI32-LITE
• Microcontroller: ESP32-S3-WROOM-1-N16R8 (240 MHz)
• Memory: 512 KB SRAM, 8 MB PSRAM, 16 MB ROM
• Power supply: 5 VDC via USB-A, 500 mA
• Interfaces: Wi-Fi / Bluetooth / Zigbee 2.4 GHz
• Dimensions: 80 x 30 x 15 mm
• Weight: 30 g
• Operating temperature range: 0°C to 60°C

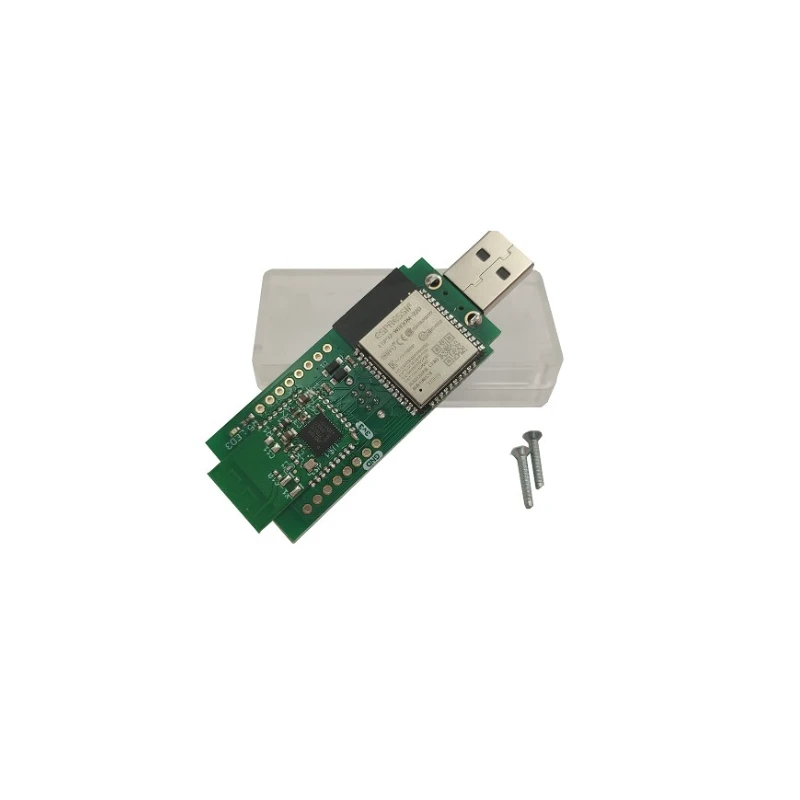

• Included in the package: 1x LiXee-ZiWifi32 Lite board, 1x protective case with mounting screws
