MOES - Zigbee radiator valve Tuya Smart Life ZTRV-PJ-601

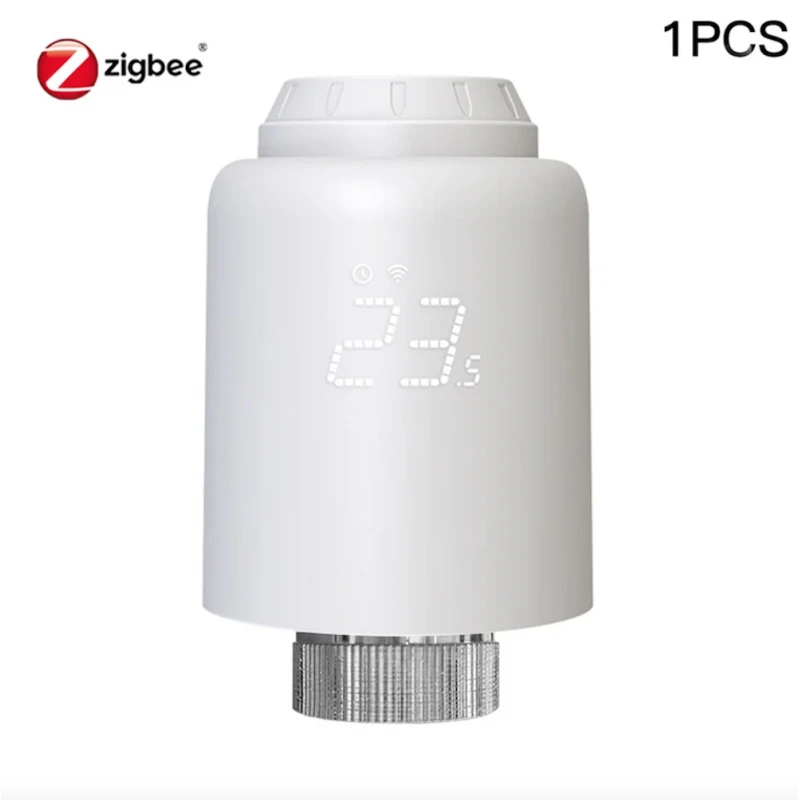

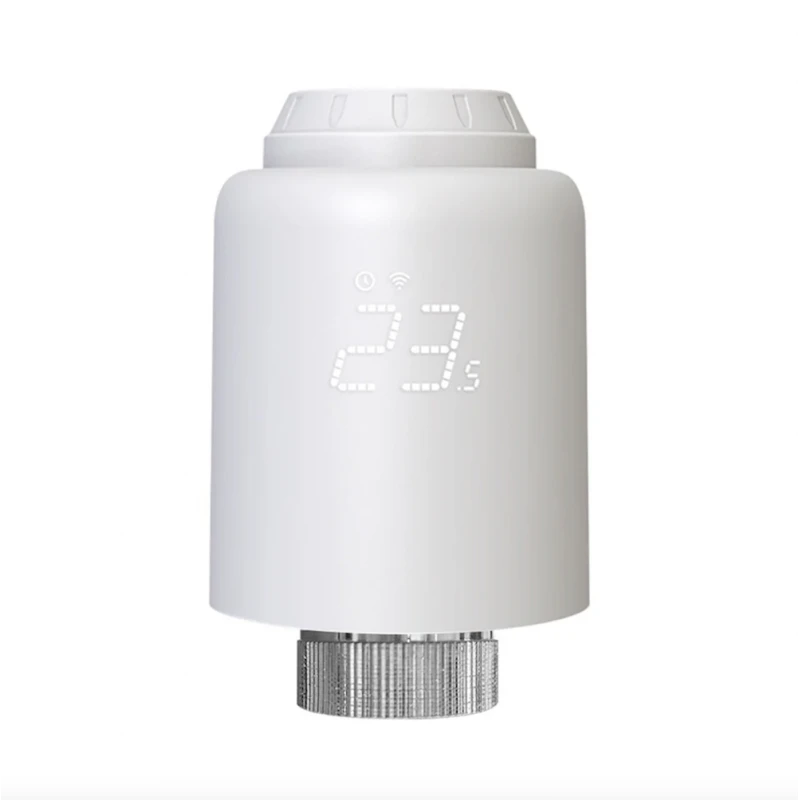

Moes ZTRV-PJ-601-MS Zigbee Smart Thermostatic Head – Efficient Radiator Control

The MOES ZTRV-PJ-601-MS Zigbee thermostatic valve head offers a modern, powerful solution for radiator temperature control. Its innovative design features a rotating LED matrix display for easy viewing from any angle, combined with advanced energy-saving features, voice control, and personalized programming—all controllable via the Tuya Smart app (Zigbee hub required).

Thanks to its high torque (8 Nm), intelligent temperature management, and support for major voice assistants like Alexa and Google Home, this smart valve enhances your home's comfort and efficiency while reducing energy consumption. It's also equipped with a child lock, anti-scale function, and window detection for added safety and reliability.

Key Features

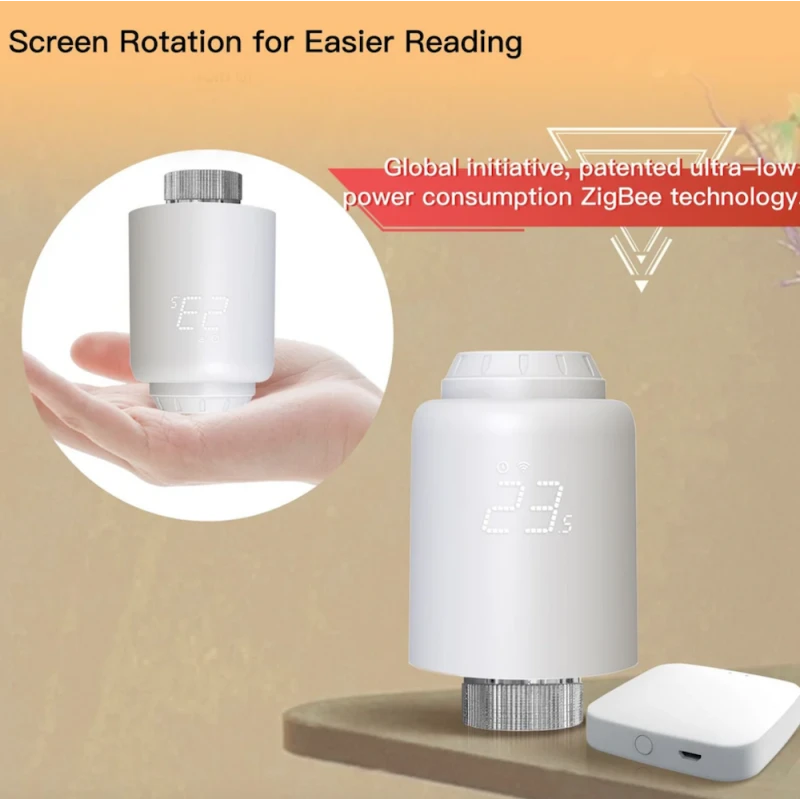

• Rotating LED matrix display – Easily readable from different angles

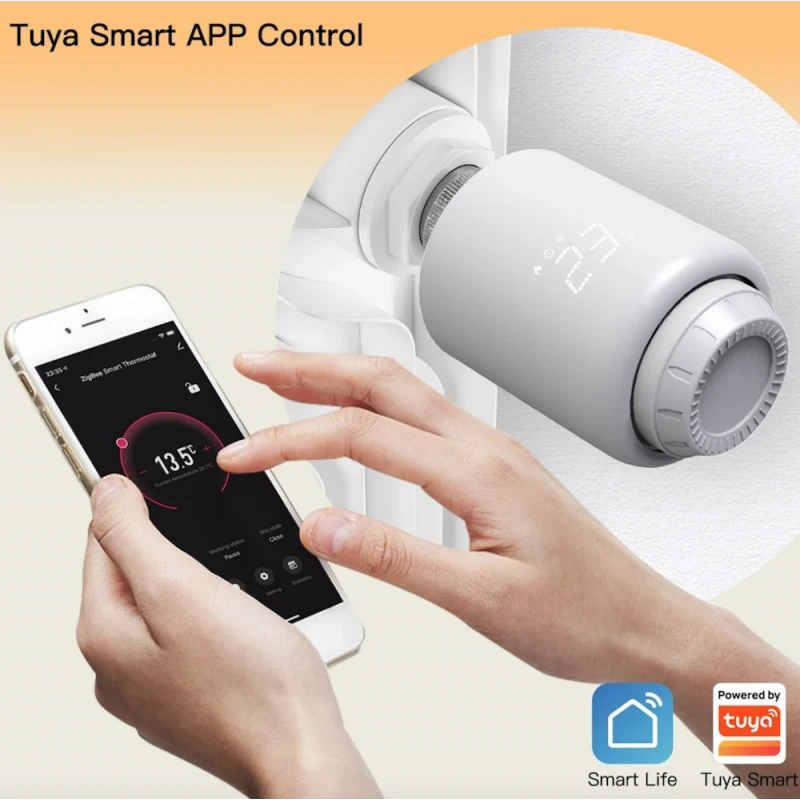

• Zigbee connectivity – Control remotely via the Tuya Smart / Smart Life app (hub required)
• High torque output – Up to 8 Nm for robust valve operation

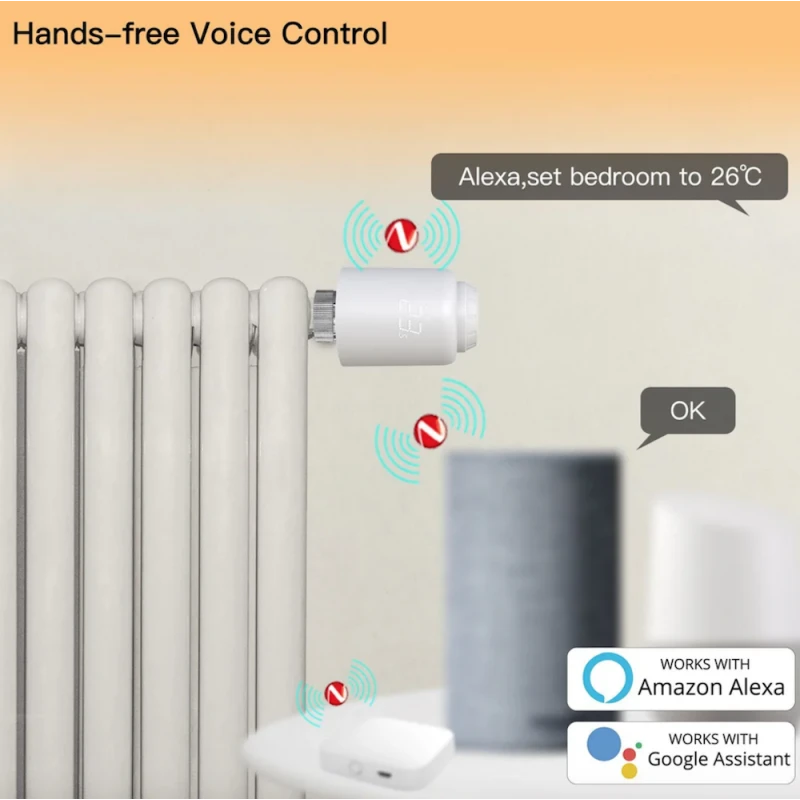

• Voice control – Compatible with Alexa and Google Home

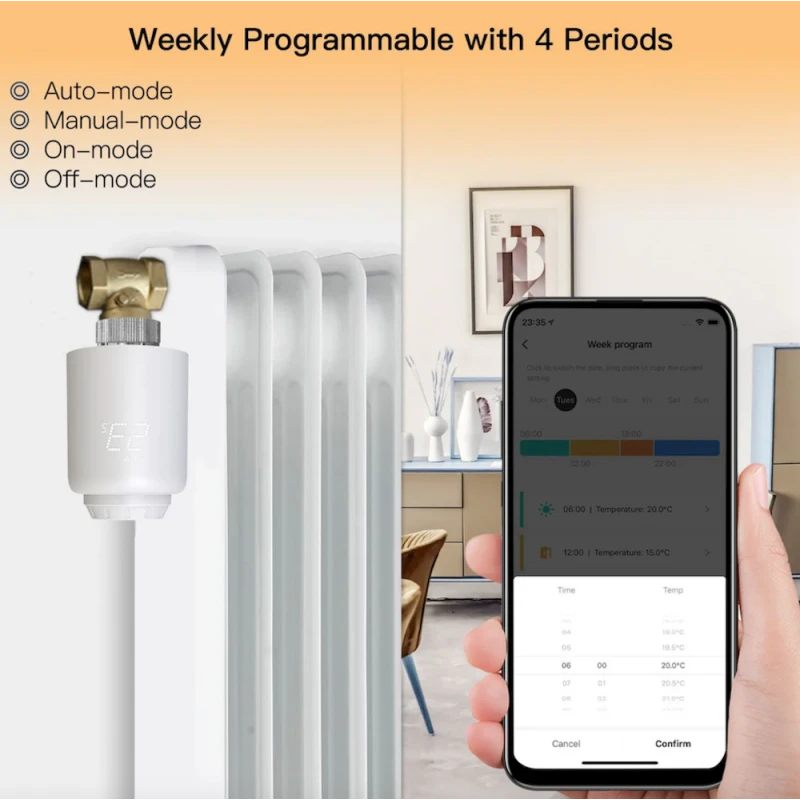

• Weekly scheduling – Up to 4 programmable periods per day
• Automatic/manual/on-off modes
• Anti-scale protection – Prevents valve calcification
• Child lock – Prevents accidental changes
• Window open detection – Pauses heating to save energy
• Energy-efficient – Low standby current, approx. 76-day battery life
• Temperature logging & calibration – Monitor and fine-tune via app
• Universal compatibility – Includes 6 adapters for most radiator valves

Technical Specifications

• Model: ZTRV-PJ-601-MS
• Power supply: 3 × 1.5 V AA alkaline batteries (not included)
• Standby current: 6 μA min
• Connection type: M30 x 1.5 mm
• Linear travel: 6 mm
• Operating temperature: 0~50°C
• Max surface temperature: 90°C
• Wireless protocol: Zigbee 3.0 (2.405–2.480 GHz)
• Radio transmit power: < +10 dBm
• Memory: 8 Kb SRAM, 64 Kb flash code, 1.5 Kb data memory

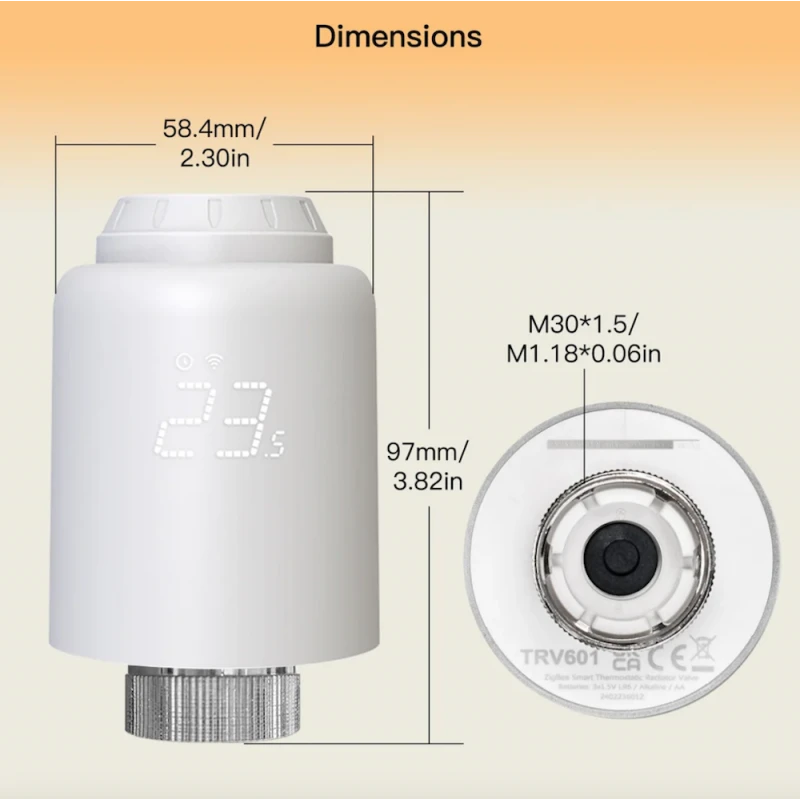

• Dimensions (L × H × D): 58.4 × 95.5 × 58.4 mm
• Protection rating: IP20 (indoor use)

Package Includes

• 1 × MOES Zigbee thermostatic head (ZTRV-PJ-601-MS)
• 6 × Valve adapters for universal installation
• 1 × User manual

Note: Zigbee hub and batteries not included. For best results, use alkaline batteries and ensure router compatibility for stable connectivity.
