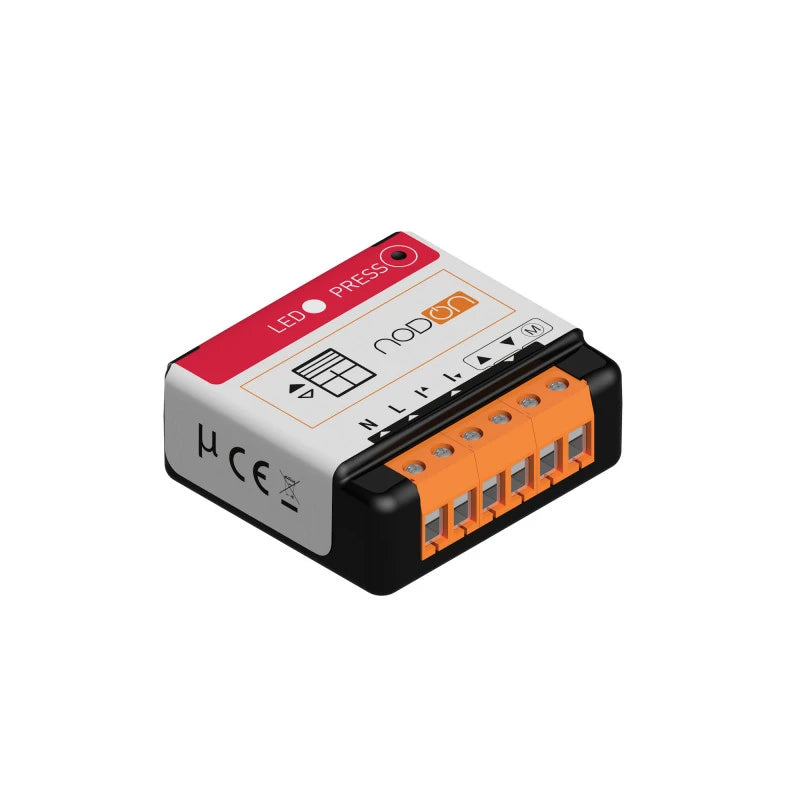

The NodOn SIN-4-RS-20 is a compact and powerful Zigbee 3.0 roller shutter micromodule that allows you to control blinds, shutters, or shades remotely or automatically via a compatible Zigbee home automation hub. Designed for both renovations and new installations, this smart module centralizes and automates the control of your openings for enhanced security, comfort, and energy efficiency.

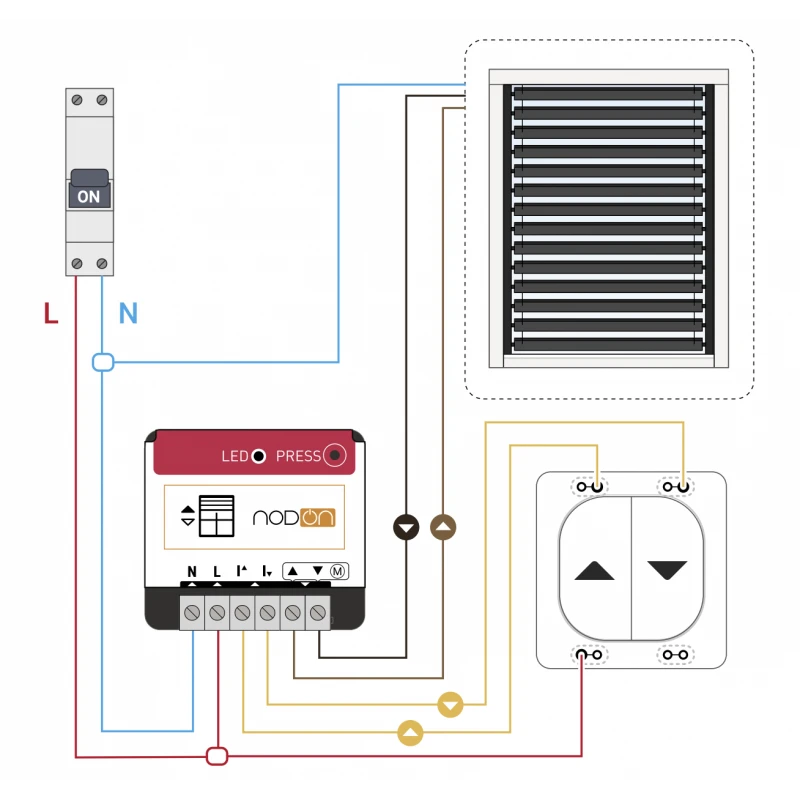

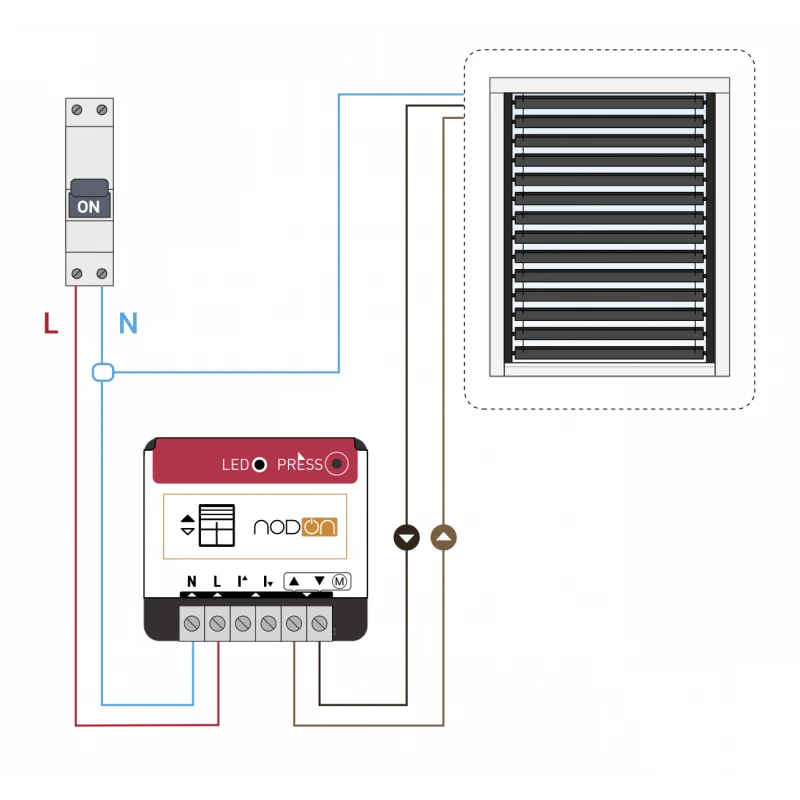

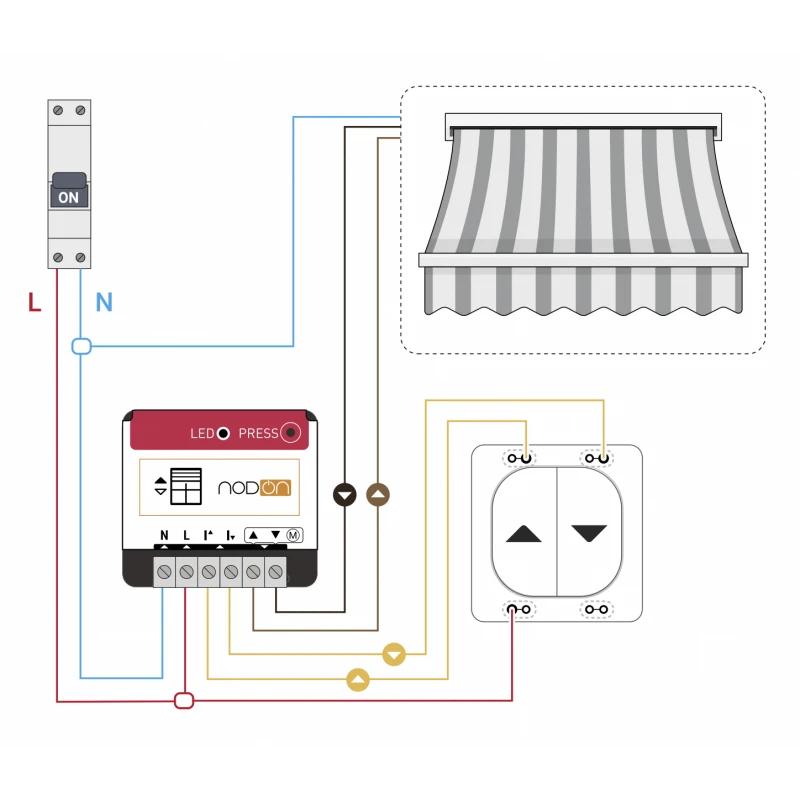

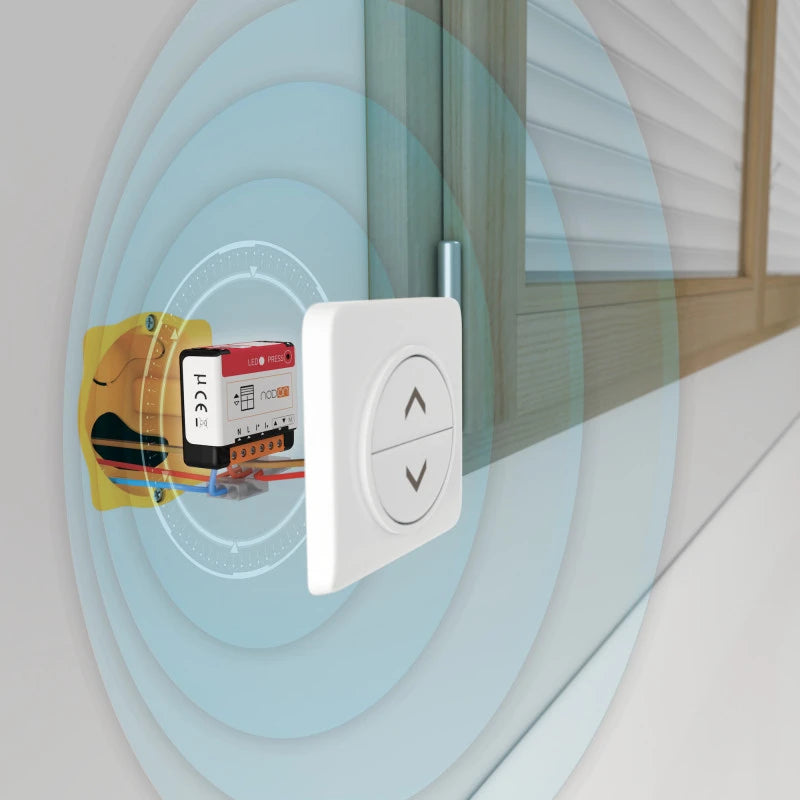

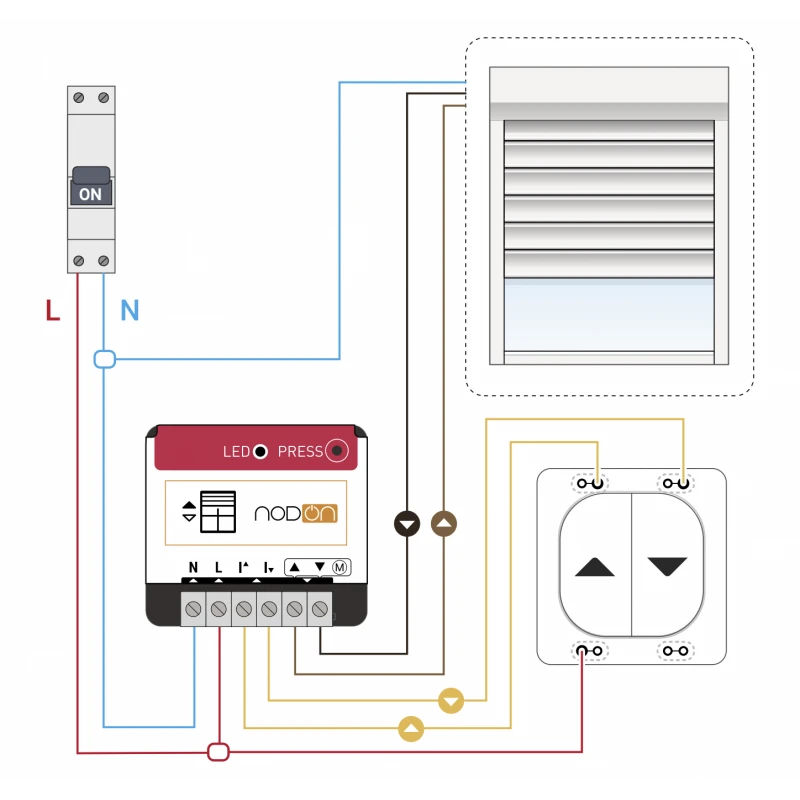

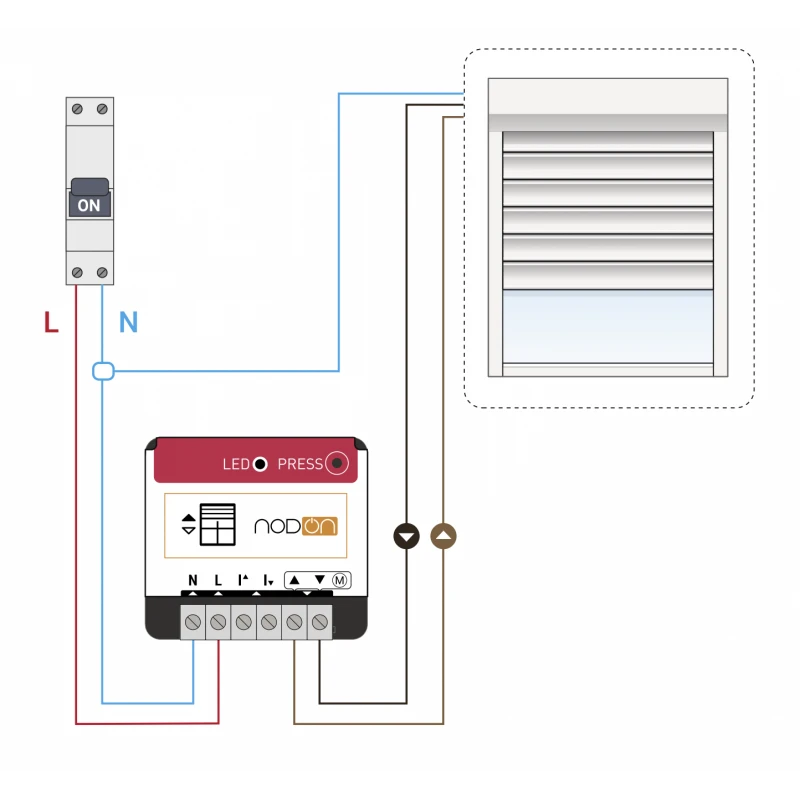

Its ultra-compact design makes it easy to install behind an existing switch (minimum 30 mm back box) or directly in the electrical panel using the DIN Rail Box from NodOn. With auto-calibration, OTA updates, and broad compatibility with leading Zigbee ecosystems, the SIN-4-RS-20 is an ideal choice for modern smart homes and buildings.
Main Features
Remote and Automated Control: Control your shutters via app or Zigbee controller.

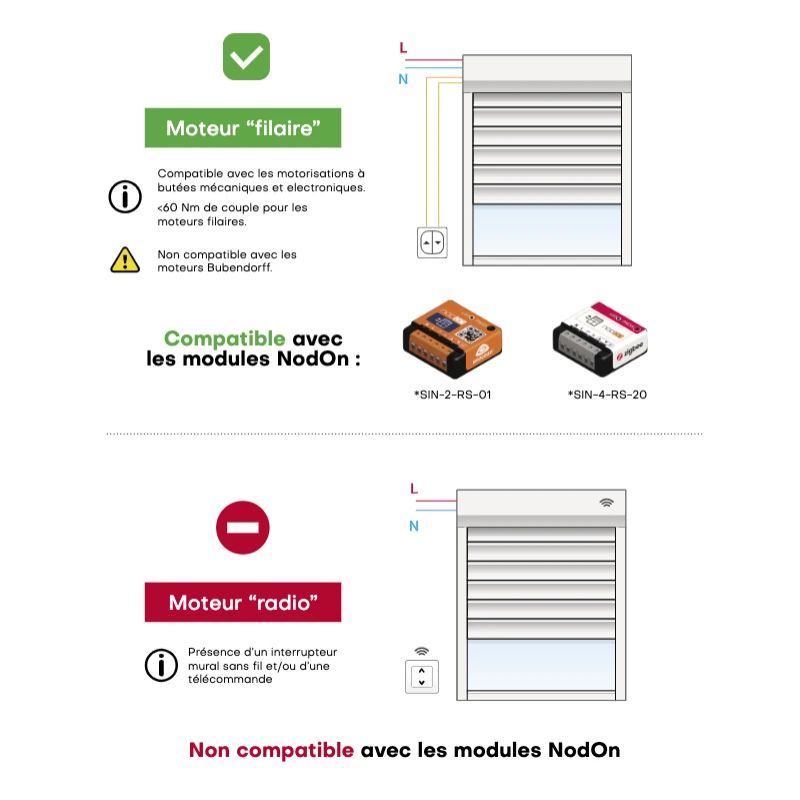

Auto Calibration: Automatically adapts to the motorized shutter without manual configuration.
Compact Format: Fits into wall boxes >30mm or DIN rail box.
Zigbee 3.0 Compatibility: 100% interoperable with major platforms (Jeedom, Home Assistant, Zigbee2MQTT, etc.).
Over-The-Air Updates: Ensures easy future improvements and fixes via compatible hubs.
Scene Integration: Ideal for automation like presence simulation or gradual wake-up routines.
Use Cases
Security: Simulate presence by automating shutters when you're away.
Centralization: Control multiple shutters with a single command or scene.
Comfort: Schedule partial opening (e.g., 20% for a gentle wake-up).
Automation: Trigger mass closure across rooms or floors.
Technical Specifications
Power Supply: 230V AC ~ 50Hz
Switching Capacity: 230V AC - 3A
Motor Power: 280W max, 60 Nm max
Power Consumption: <1W
Protocol: Zigbee 3.0
Compatible Platforms: Jeedom, Home Assistant, Edalso, Oblo, Otodo, Zigbee2MQTT
Frequency: 2.4 GHz
Max RF Power: +10 dBm
Range: up to 30m indoors
Operating Temperature: -20°C to 60°C
Protection Rating: IP20
Device Type ID: On/Off Output (0x0202)
Dimensions: Ultra-compact for wall or DIN rail mounting
