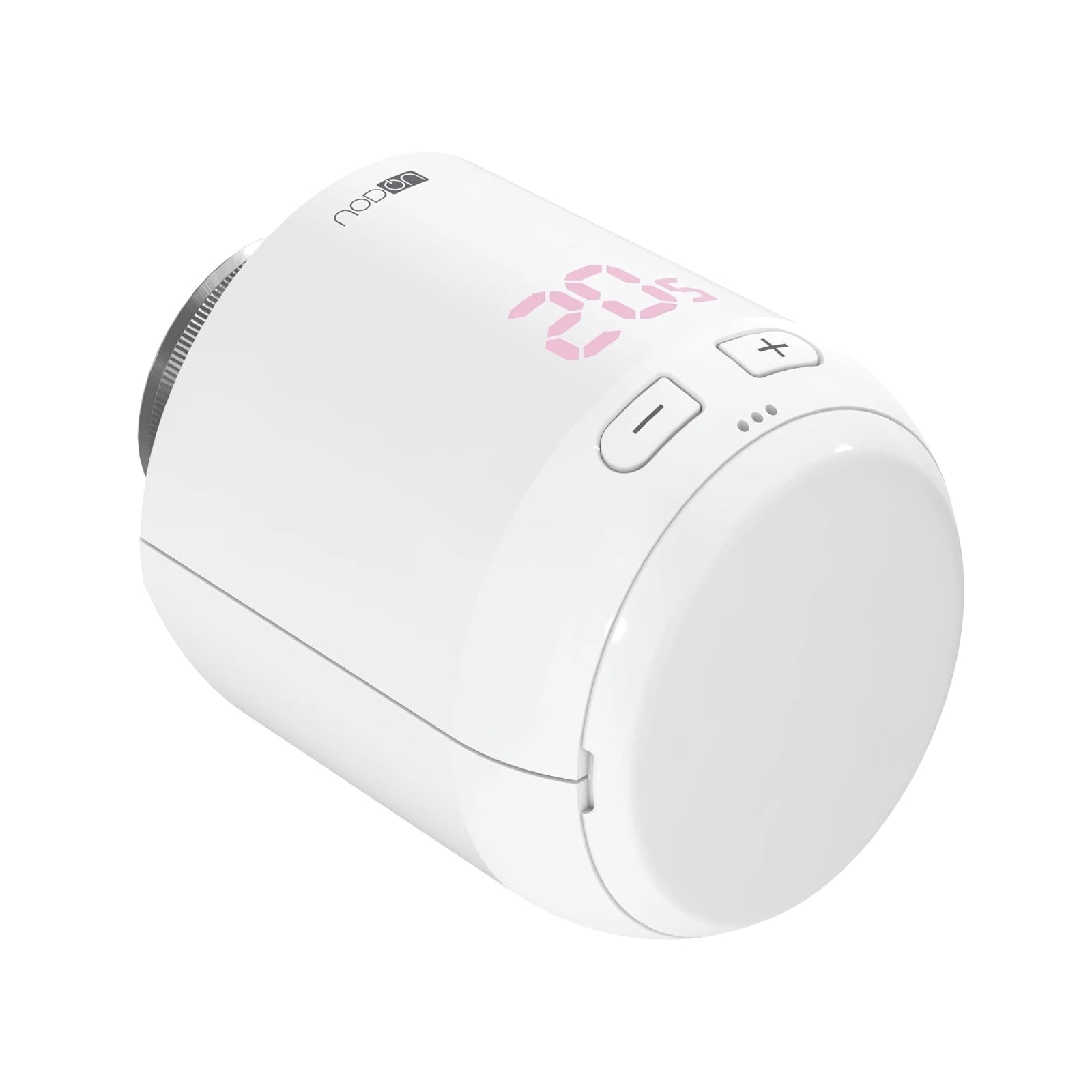

NodOn - Zigbee Thermostatic Head TRV-4-1-00

NodOn TRV-4-1-00: Zigbee Thermostatic Valve

Take control of your heating system and reduce energy consumption with the NodOn TRV-4-1-00 Zigbee thermostatic valve.

By connecting it to a compatible Zigbee 3.0 gateway, such as Jeedom or Home Assistant with Zigbee2MQTT, you can schedule heating times and create smart scenes to optimise comfort.

Energy Savings

Set heating schedules or automate scenarios based on your daily routines, helping to reduce energy usage. A compatible Zigbee 3.0 hub is required for this functionality.

Child Lock

Prevent accidental or unauthorised temperature changes for secure operation.

Easy Installation

Compatible with most radiators, the device installs easily with no need for modifications.

Over-the-Air Updates (OTA)

The Zigbee thermostatic valve supports OTA updates, allowing for quick upgrades via a compatible home automation system.

Smart Thermostatic Valve Features

• Automatic or remote control of hydraulic radiators.
• Heating automatically turns off when a window is detected open.
• Automatic optimisation of room-by-room heating management.
• Heating regulation based on room occupancy.

Technical Specifications of the TRV-4-1-00

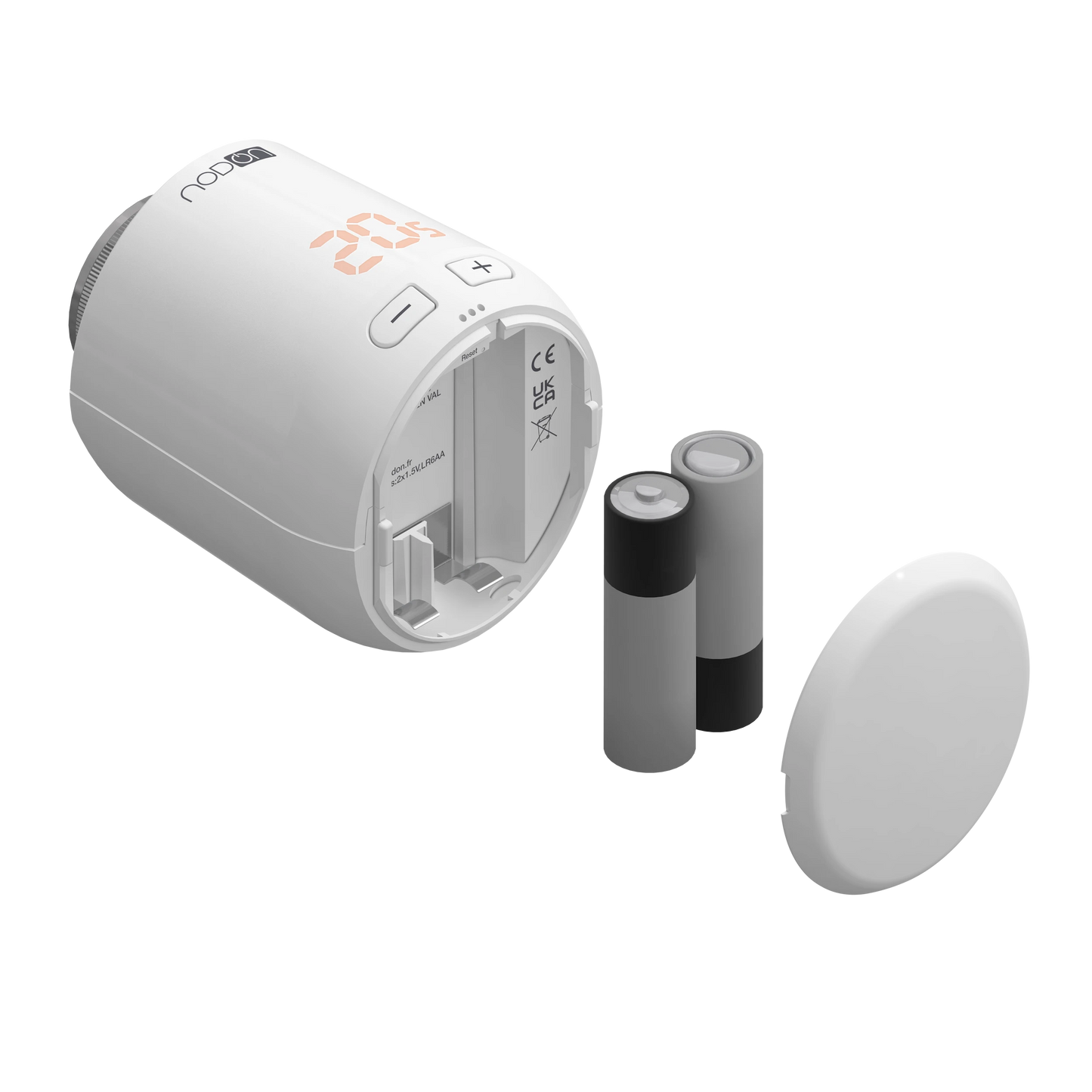

• Power supply: 2 x 1.5 V AA/LR6 batteries
• Threaded connection: M30 x 1.5 mm
• Control range: 8–28°C
• Adaptors included: RA, RAV, RAVL
• Wireless protocol: Zigbee 2.4 GHz
• Max radio power: +8 dBm
• Device type (Device ID): Thermostat (0x0301)
• Range: Up to 30 metres indoors
• Protection rating: IP20
• Operating conditions / Temperature: 0–50°C
• Dimensions: 62 x 68 x 83 mm
• Weight: 230 g (including batteries)
• Warranty: 2 years
