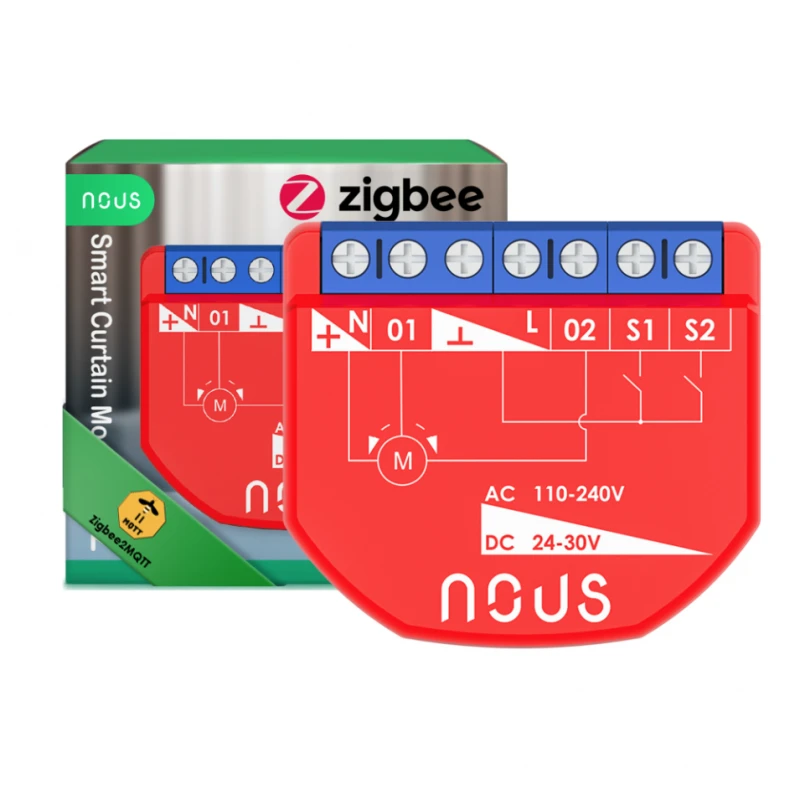

The NOUS B4Z Zigbee Roller Shutter Module brings intelligent automation to your electric roller shutters. Compact and easy to install, it lets you control your shutters remotely via a smartphone app or by voice using Alexa and Google Assistant. Compatible with Zigbee 3.0 hubs like Home Assistant or Tuya Smart Life, this module is ideal for modernizing your smart home with efficient light and temperature management.
Main Features
Remote & Voice Control: Operate your roller shutters from anywhere using the NOUS Smart or Smart Life apps, or through Alexa and Google Assistant.
Seamless Zigbee 3.0 Integration: Connects easily to your Zigbee gateway (Tuya, Home Assistant, etc.) for centralized home automation.
Energy Saving: Automate shutter opening/closing based on light or temperature to optimize comfort and reduce energy costs.

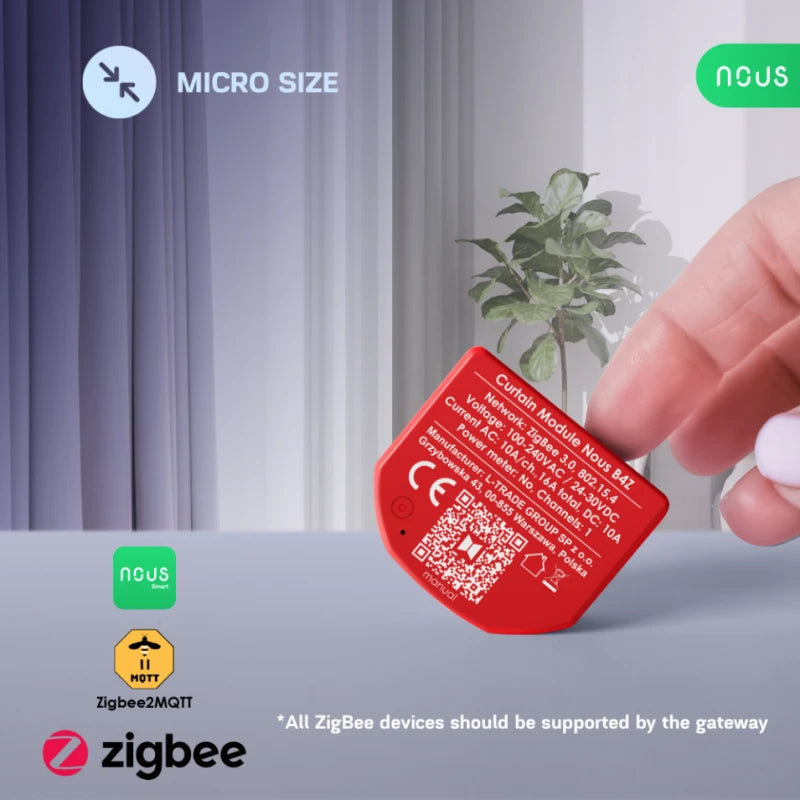

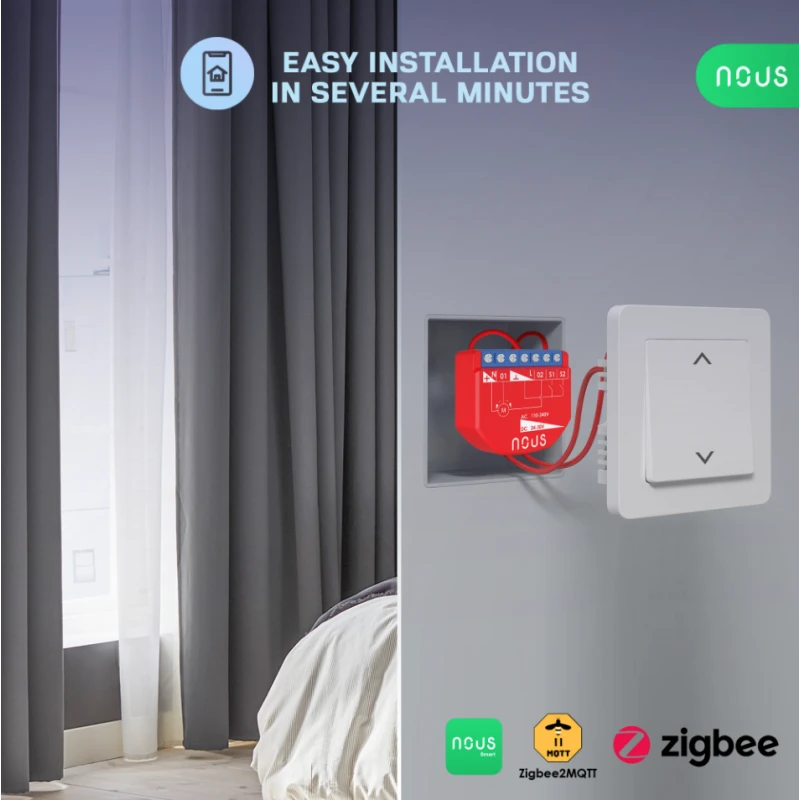

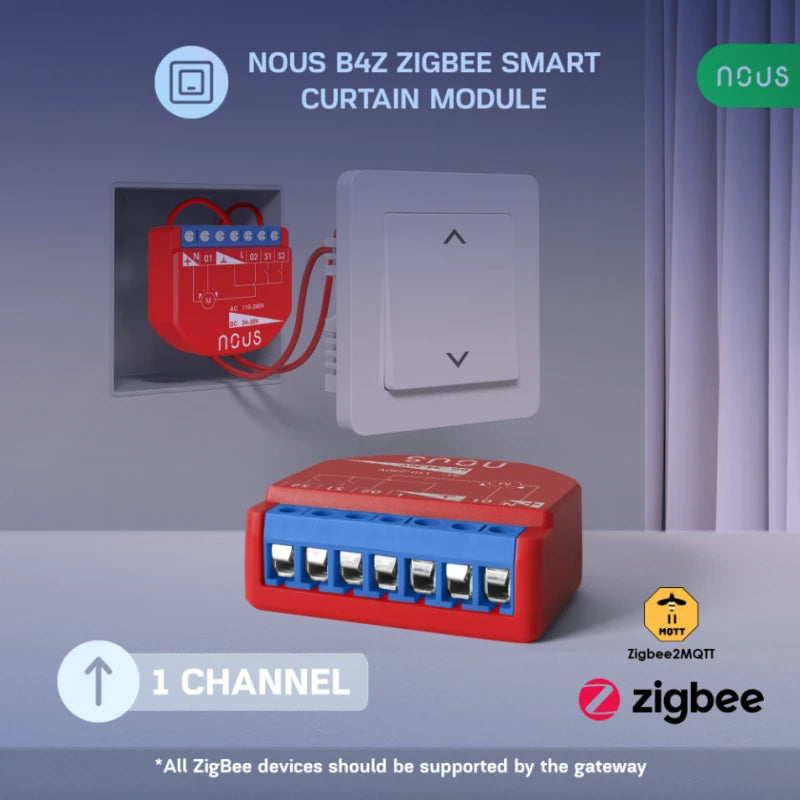

Compact Design: Small form factor for easy installation behind existing switches (42×37×16 mm).
Reliable & Safe: Flame-retardant PC V0 plastic housing with CE certification for peace of mind.
Technical Specifications
Model: NOUS B4Z
Function: Zigbee smart roller shutter control
Power Supply: 100–240V AC / 24–30V DC
Max Load: 16A (AC) / 10A (DC)
Wireless Protocol: Zigbee 3.0 (IEEE 802.15.4)
Control Apps: NOUS Smart, Tuya Smart Life, Home Assistant
Voice Assistants: Amazon Alexa, Google Assistant
Material: Flame-retardant PC V0
Protection Rating: IP20
Frequency Range: 2400–2483 MHz
Max Transmission Power: 10 dBm
Dimensions: 42 × 37 × 16 mm
Weight: 30 g
Operating Temperature: 0°C ~ 40°C
The NOUS B4Z is the perfect solution for those looking to easily retrofit their roller shutters into a smart and efficient system.
