Owon - Boiler Thermostat Zigbee 3.0 (Touch Screen, 5 or 12V)

Zigbee Touchscreen Thermostat (EU): Smart Heating and Hot Water Control

The ZigBee Touchscreen Thermostat (EU) offers an intelligent and user-friendly way to manage your home's heating and hot water. Whether replacing a wired thermostat or connecting wirelessly via a receiver, this device helps maintain optimal comfort while reducing energy consumption—whether you're home or away.

Smart Features for Comfort and Efficiency

Equipped with ZigBee 3.0 and a 4-inch full-color touchscreen, this thermostat allows you to manage temperature and hot water with precision. It supports real-time monitoring of temperature and humidity, along with flexible scheduling and boost functions for both heating and hot water.

Convenient Scheduling and Remote Control

Set 7-day programmable schedules for heating and hot water to match your lifestyle. With away control options, you can maintain energy efficiency even when you're not at home. Manual boost functions on the receiver provide quick access to extra heat or hot water when needed.

Stable Wireless Communication

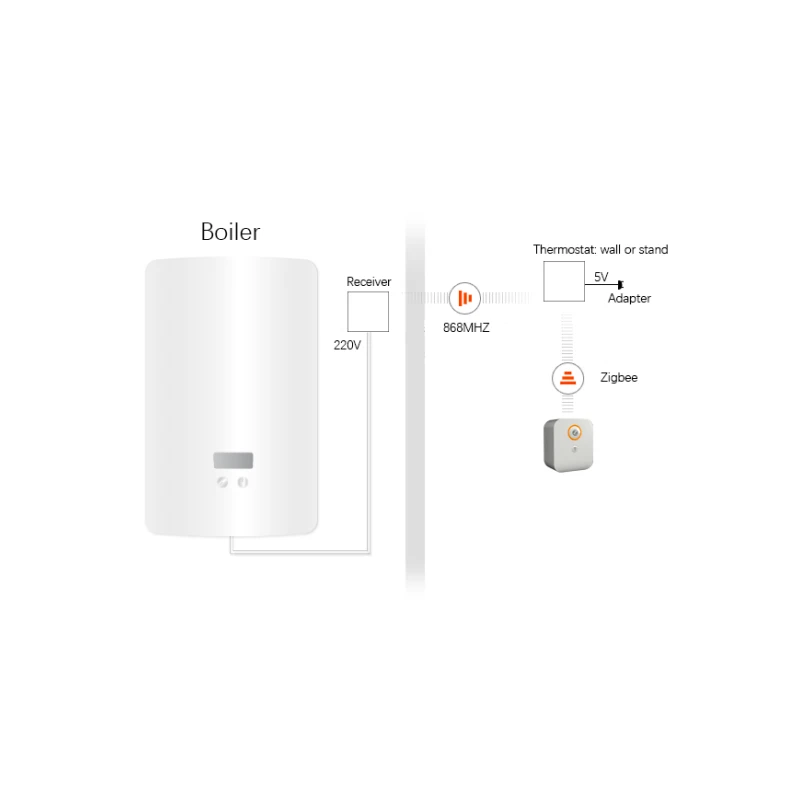

The thermostat communicates with the receiver via a stable 868MHz frequency, ensuring reliable operation. It can also connect to your smart home system using ZigBee 3.0 (2.4GHz), allowing for integration with automation routines and remote control through compatible platforms.

Reliable Monitoring and Protection

Freeze protection ensures your pipes remain safe during cold weather, while accurate sensors continuously monitor temperature (±1°C) and humidity (±3%) for maximum comfort and safety. Fast 10-second response times ensure timely adjustments to changing conditions.

Main Functions

• 4-inch full-color touchscreen interface
• Real-time temperature and humidity monitoring
• Heating and hot water control via ZigBee 3.0
• Customizable boost time for both heating and hot water
• 7-day programmable schedule for full system management
• Manual heating/hot water boost via receiver
• 868MHz stable communication between thermostat and receiver
• Away mode for energy savings
• Built-in freeze protection

Technical Specifications

• Wireless Connectivity: ZigBee 2.4GHz (IEEE 802.15.4, ZigBee 3.0)
• Radio Communication: 868MHz between thermostat and receiver
• Antenna: Internal PCB antenna
• Wireless Range: 100m outdoors / 30m indoors (open area)
• Display: 4-inch full-color touchscreen
• Operating Voltage: DC 5V / DC 12V
• Operating Temperature: -20°C to +50°C
• Humidity Range: Up to 90% (non-condensing)
• Temperature Sensing: Range: −40°C to 125°C | Accuracy: ±1°C | Response Time: 10s
• Humidity Sensing: Range: 0–100% | Accuracy: ±3% (20–80%) | Response Time: 10s
• Dimensions: 104 × 104 × 21 mm
• Mounting Type: Wall-mounted or stand placement
