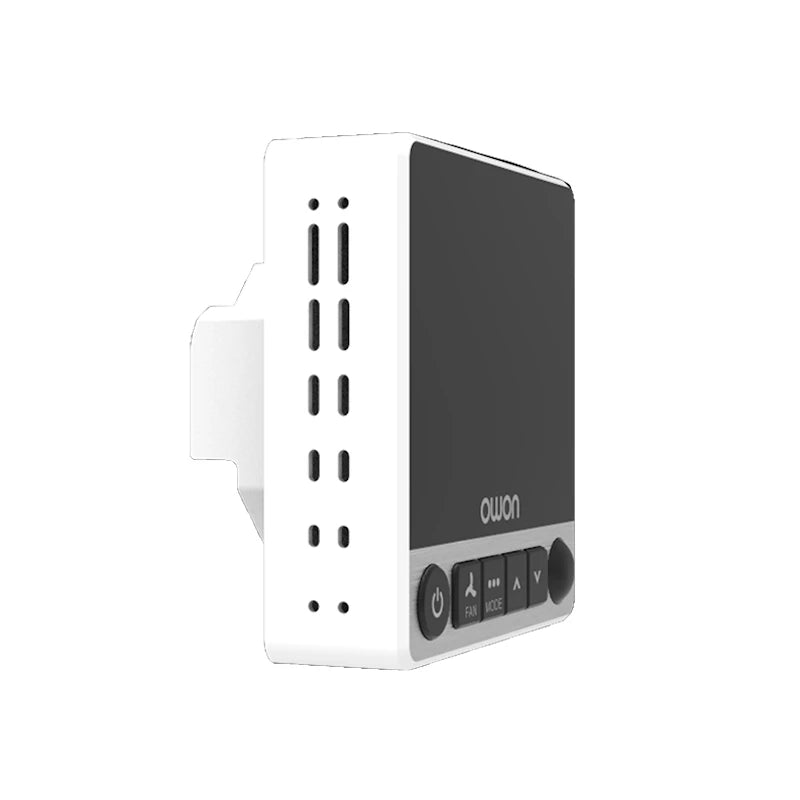

Owon - Zigbee Fan Coil Thermostat (100V-240V) PCT504-Z

Owon Zigbee Smart Fan Coil Thermostat: Intelligent Temperature Control

The OWON smart fan coil thermostat offers precise and remote control of your home’s climate. Compatible with Zigbee HA 1.2, it supports standalone operation with programmable schedules or remote control via a mobile app. Whether for heating or cooling, it’s an ideal solution for fan coil systems in modern smart homes.

Smart Heating and Cooling Control

Designed for 4-pipe heating and cooling fan coil systems, the thermostat allows independent temperature regulation for both hot and cold water circuits. It supports system modes like Heat, Cool, Off, and Ventilation, as well as multiple fan speeds (Auto, Low, Medium, High) for personalized comfort.

Zigbee Integration and Mobile Control

Compliant with Zigbee Home Automation 1.2 (HA), the OWON thermostat integrates seamlessly into your Zigbee smart home setup. Remote temperature adjustments and status monitoring can be done conveniently from your smartphone.

Built-In Sensors and Energy Efficiency

Equipped with temperature, humidity, and motion sensors, the thermostat helps maintain ideal room conditions while enabling smart features like Eco Mode. The motion detector can be used to activate energy-saving behaviors when the room is unoccupied.

Weekly Scheduling and Manual Override

You can create up to 4 daily schedules to match your lifestyle and comfort needs. The Eco Mode and intuitive LCD display with vertical alignment allow for both automation and easy manual adjustments.

Main Features

• Supports 4-pipe fan coil systems for heating and cooling
• Remote temperature control via Zigbee Home Automation (HA1.2)
• Integrated temperature, humidity, and motion sensors
• System modes: Heat, Cool, Off, Ventilation
• Fan speeds: Auto, Low, Medium, High
• 4 programmable daily schedules
• Eco Mode for energy savings
• LCD display with vertical alignment
• Wall-mounted wired installation

Technical Specifications

• Processor: ARM Cortex-M4 32-bit
• Wireless Protocol: Zigbee 2.4 GHz IEEE 802.15.4
• Zigbee Profile: Home Automation (HA1.2)
• RF Range: 100 m (outdoor), 30 m (indoor)
• Power Supply: AC 110–250V, 50/60Hz
• Max Current: 3A resistive, 1A inductive
• Rated Power Consumption: 1.4W
• Display: VA LCD panel (50 × 71 mm)
• Operating Temperature: 0°C to 40°C
• Dimensions: 86 × 86 × 48 mm
• Weight: 198 g
• Mounting Type: Wall-mounted
