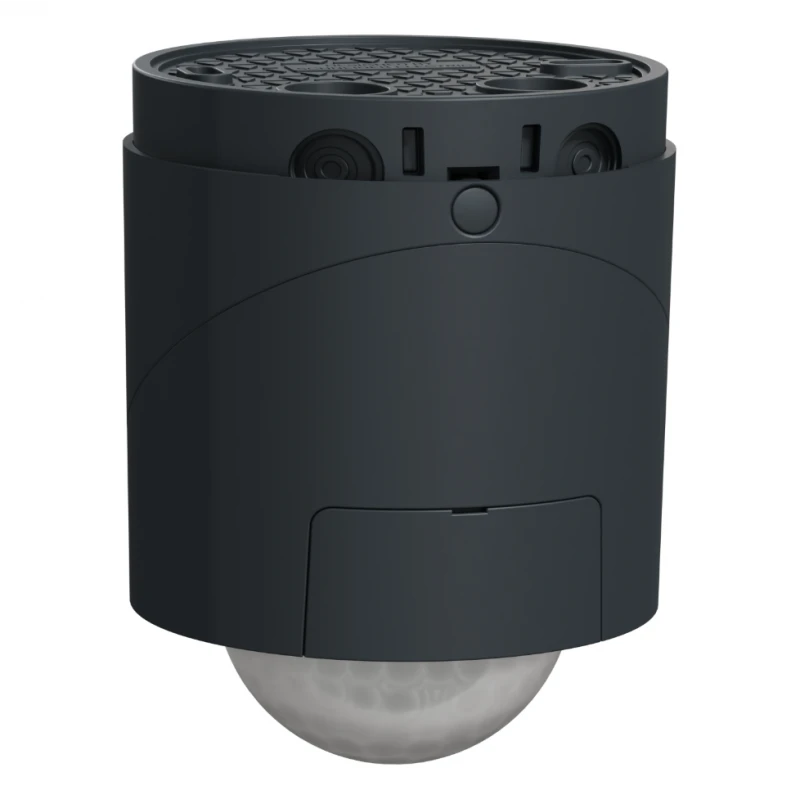

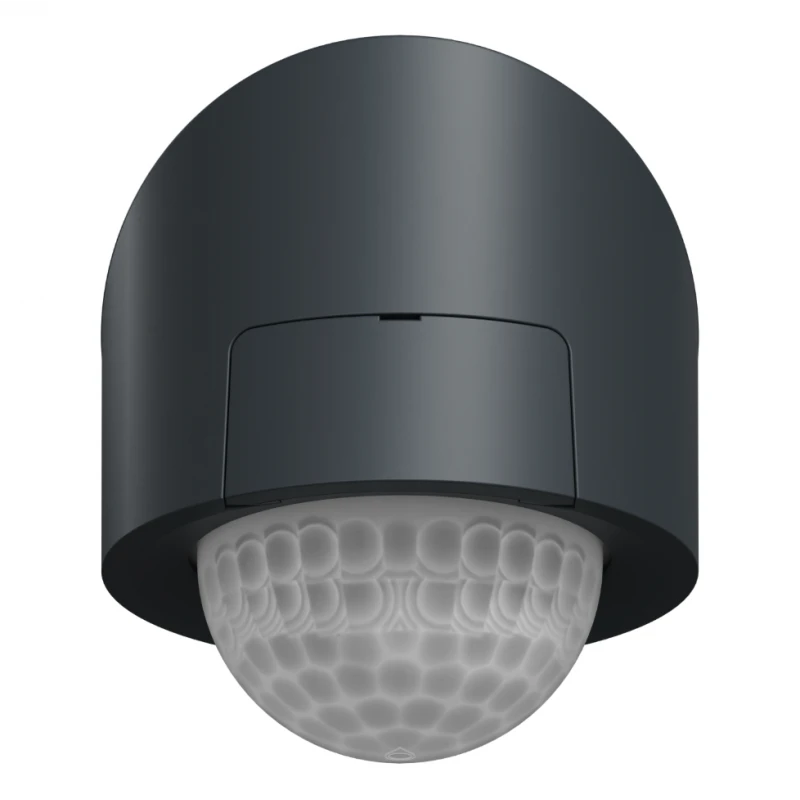

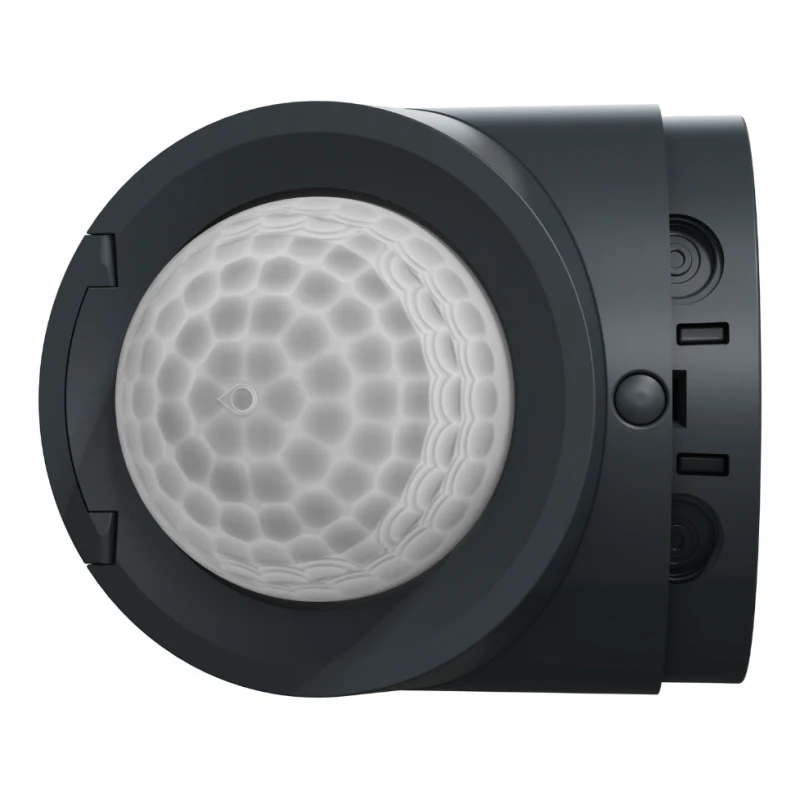

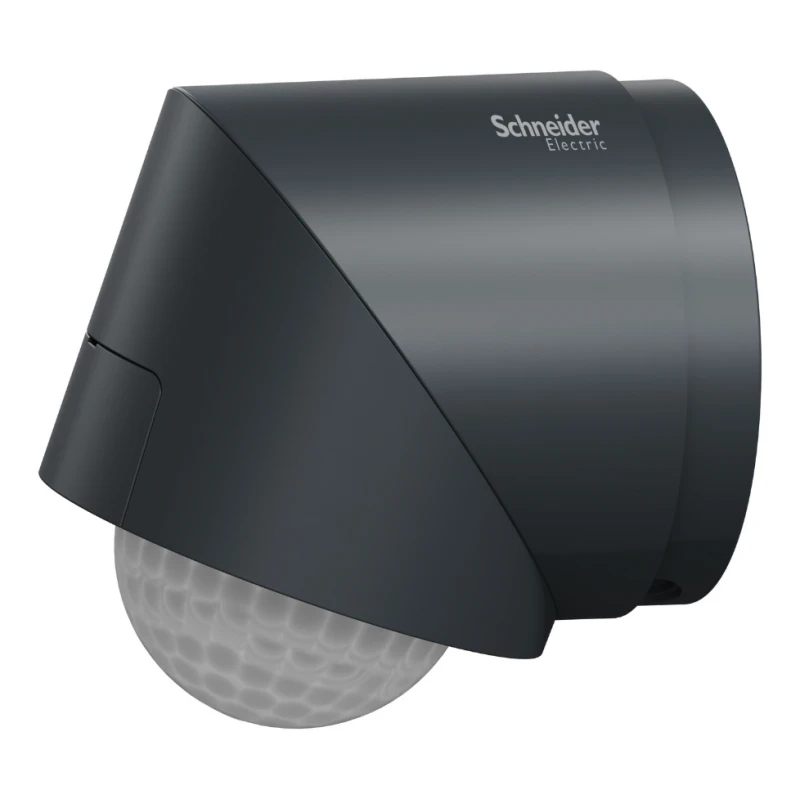

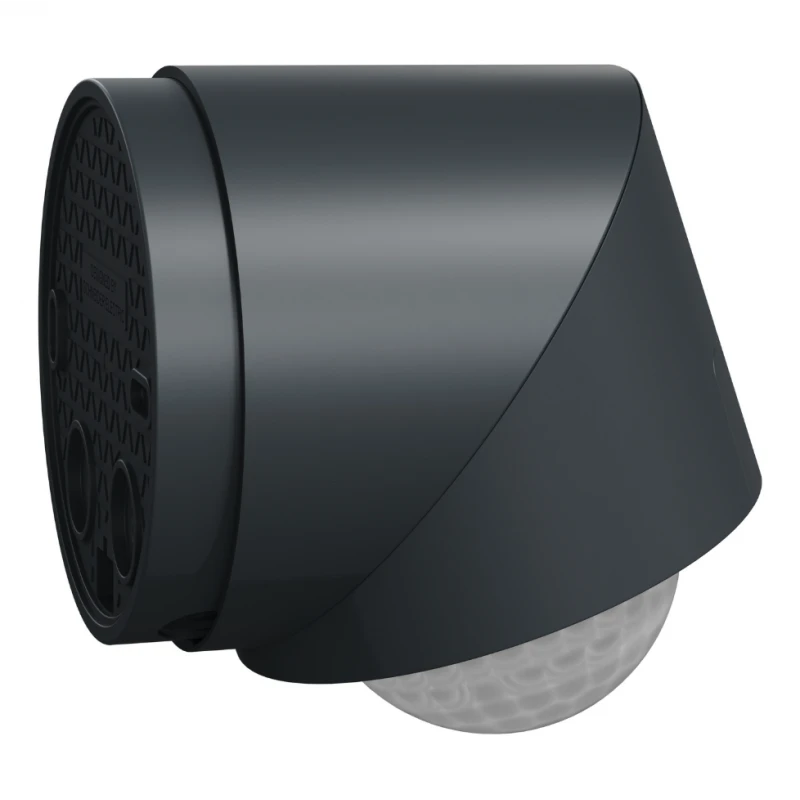

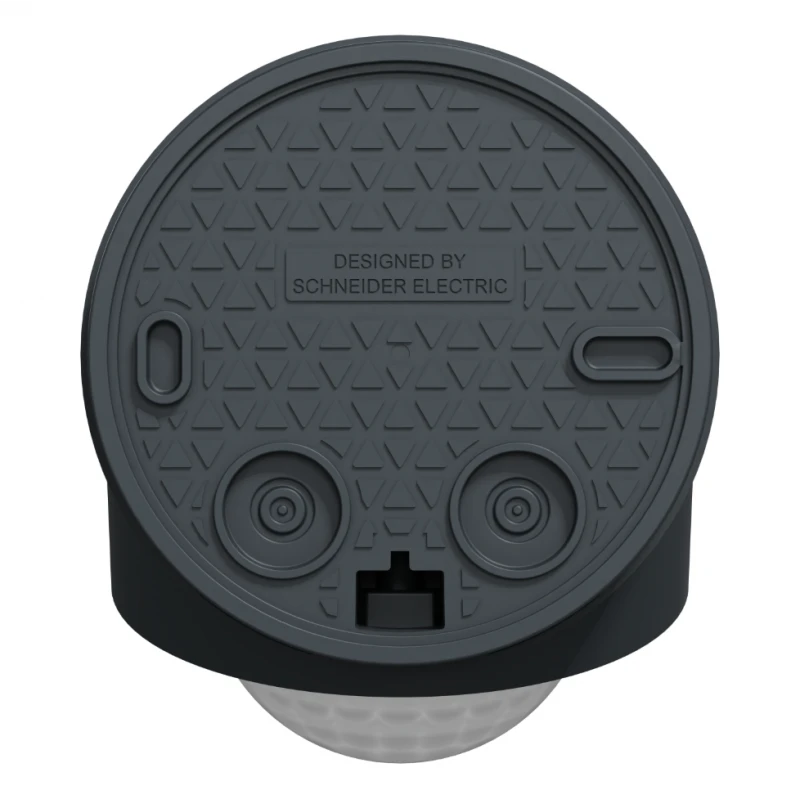

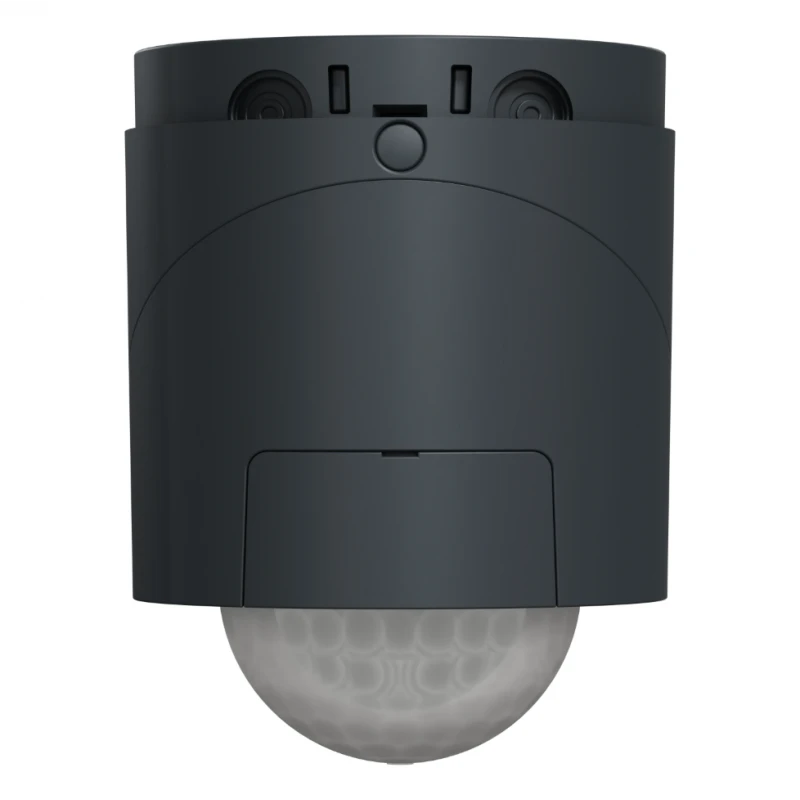

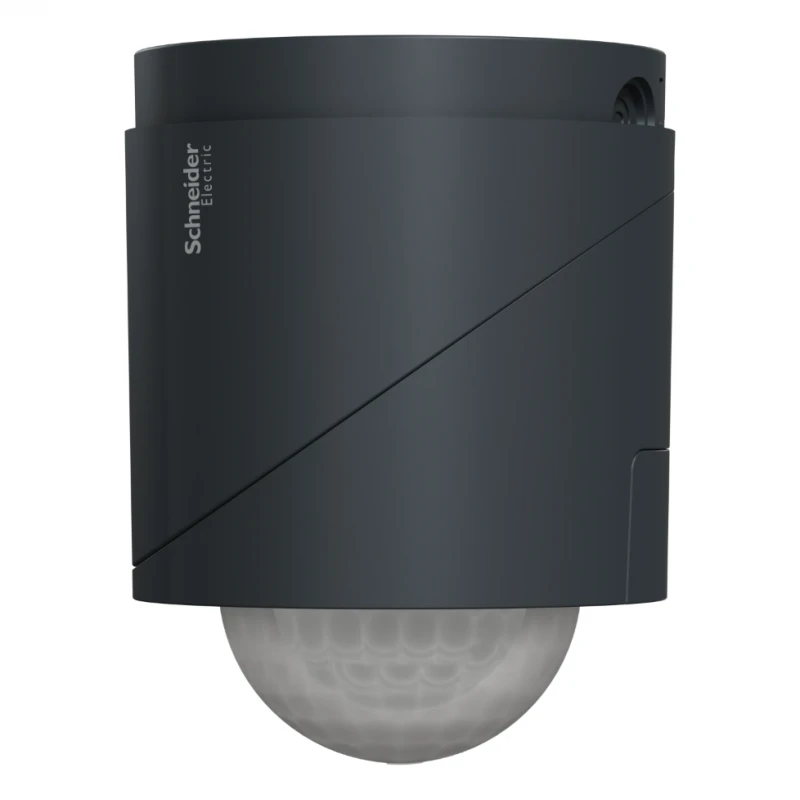

Smart Outdoor Zigbee Motion Detector – Schneider Electric CCT564119
The Schneider Electric CCT564119 is a high-performance outdoor motion and light sensor based on Zigbee 3.0. Designed for use with the Wiser smart home system, it automates roller shutters and lighting based on sunlight and motion detection. Its IP66 weatherproof design makes it ideal for reliable use on exterior walls or ceilings.
Main Functions
Motion detection: Infrared sensor with wide 360° angle coverage.
Light measurement: Automatically responds to ambient brightness (1–2000 lx).
Shutter automation: Controls opening/closing based on sunlight levels.
Lighting control: Turns outdoor lights on/off when motion is detected.
App notifications: Sends alerts to the Wiser Home application.
Adjustable parameters: Time delay from 1 to 60 minutes and brightness thresholds.

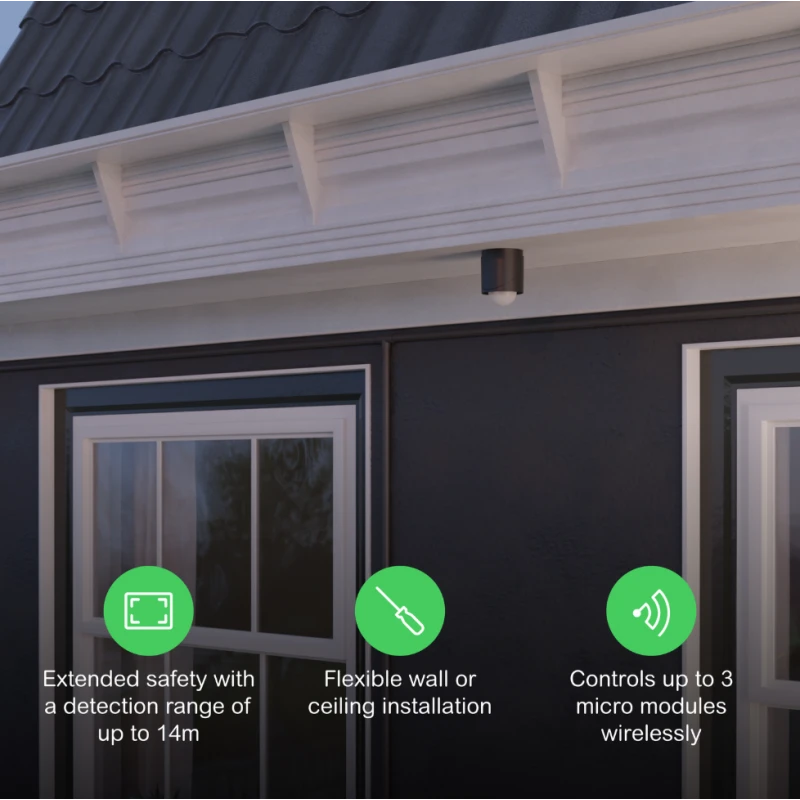

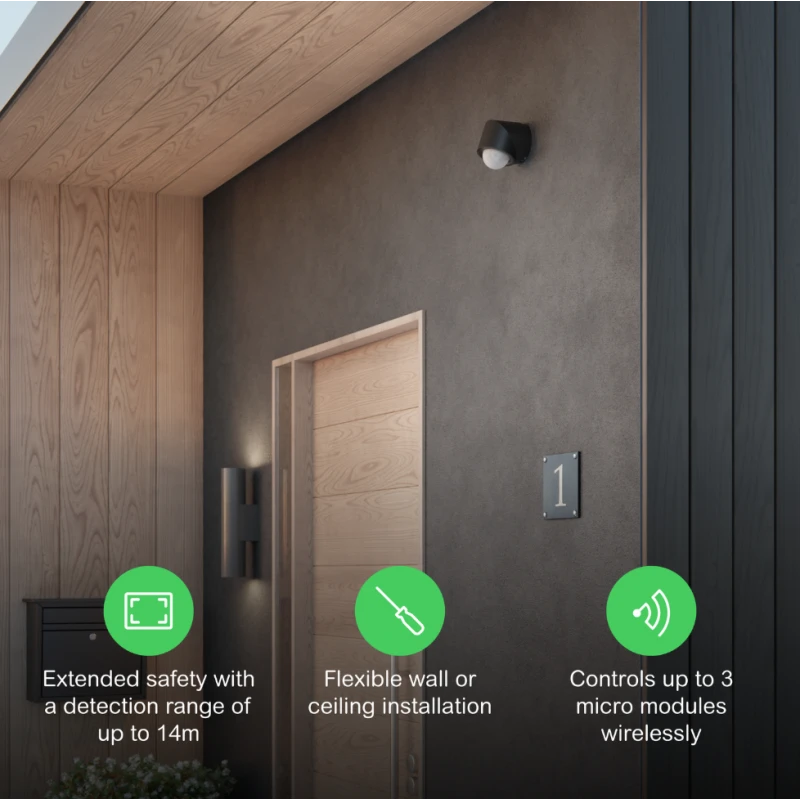

Flexible installation: Suitable for both wall and ceiling mounting (2.5 m height).
Technical Specifications – CCT564119
Range: ARGUS
Sensor type: Infrared
Communication protocol: Zigbee 3.0
Power supply: 220–240 V AC, 50/60 Hz
Load type supported: 10 A incandescent, 300 W LED, 10 A capacitive
Detection angle: 0–360°
Detection range: 14 m (front), 28 m (radius)
Brightness setting: Adjustable from 1 to 2000 lux
Time delay: 1 to 60 minutes
Mounting height: 2.5 m
Protection rating: IP66 (dust and water resistant)
Operating temperature: -20°C to +55°C
Material: Matte polycarbonate (PC)
Dimensions: 98.8 × 82.4 × 97.2 mm
Weight: 0.23 kg
Connection method: Screwless terminals
Protection type: Thermal fuse
Package Contents
Zigbee motion and light sensor
User manual
Mounting screws and plugs
Lens mask for detection adjustment
Compatibility
Wiser Hub (Generation 2)
Wiser Home app
This smart outdoor Zigbee sensor from Schneider Electric adds intelligence, automation and security to your outdoor spaces — all controlled from your Wiser smart home system.
