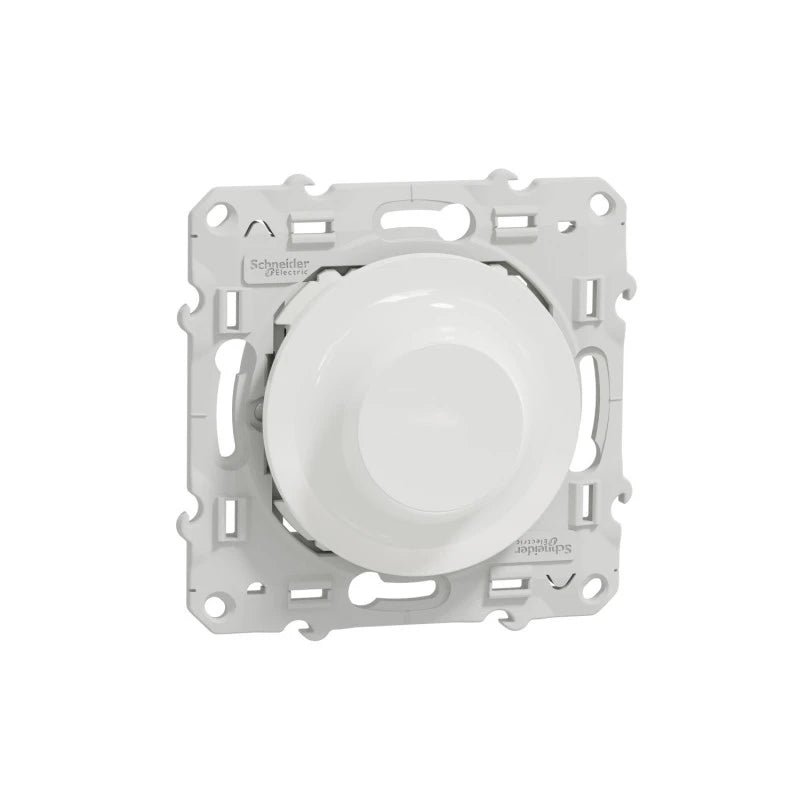

Schneider Electric - Zigbee 3.0 rotary dimmer Wiser Odace white

Wiser Odace Connected Rotary Dimmer

The Wiser Odace connected rotary dimmer lets you manually dim your lights or control them remotely using the Wiser Home app and a compatible Wi-Fi gateway. It also supports voice control through smart assistants, providing convenient and flexible lighting management at home or remotely.

Install the Odace rotary dimmer to modernize your lighting system—ideal for both new builds and renovations. Once connected to the Wiser ecosystem, you can switch or dim your lights via your smartphone, auxiliary push-buttons, or your voice.

Note: Supplied without cover plate. Compatible cover plates are available under the "Accessories" tab.

Key Features:

• Manual rotary dimming and app/voice control via Wiser Home
• No neutral wire required (2-wire installation)
• To be completed with Odace Styl or Odace Touch cover plates
• Wake-up, shut-off, and timer settings via the app
• Automatic load detection
• Remote control with auxiliary push-buttons
• Overload, overtemperature and short-circuit protection
• Ideal for retrofits or new installations

Compatible Loads:

• Incandescent lamps: 14–200 W (230V)
• Halogen lamps: 14–150 W (230V)
• Low-voltage halogen lamps with coil transformer: 14–150 VA (12V)
• Low-voltage halogen lamps with electronic transformer: 14–150 VA (12V)
• Dimmable LED lamps (RC mode): 7–100 VA
• Dimmable LED lamps (RL mode): 7–20 VA

Technical Specifications:

• Power Supply: 230 V AC, 50 Hz
• Standby Consumption: Max. 0.4 W
• Communication: Wireless, 2.5 mW (2.4 GHz)
• Installation: 2-wire (no neutral required)
• Dimensions: 71 × 71 × 49 mm
• Weight: 63 g

Package Includes:

• 1 × Wiser Odace Connected Rotary Dimmer (cover plate not included)
• Installation guide
