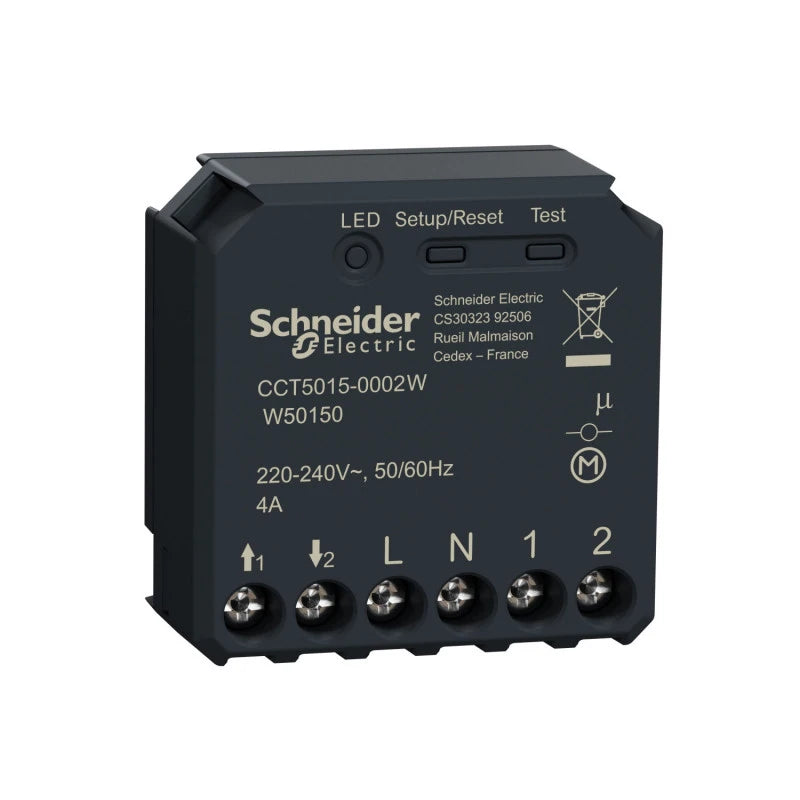

Schneider Electric - Zigbee 3.0 Wiser roller shutter micromodule

Wiser Zigbee Flush-Mounted Roller Shutter Module

The Wiser flush-mounted roller shutter module allows you to integrate your roller shutters into the Wiser smart home system. Designed for both new constructions and renovations, this compact module offers local and remote control of your shutters via the Wiser Home app, voice assistants, or traditional wall push-buttons.

Installed directly behind a switch or in the motor housing, it brings intelligent control to your shutters with features like wake-up/wake-down scenarios, timers, and partial opening positioning.

Main Features

• Smart Home Integration: Connects your roller shutters to the Wiser ecosystem via a Zigbee-compatible gateway.
• Flexible Installation: Mount behind standard push-button switches or directly at the motor level (50 mm box recommended).
• Remote & Voice Control: Operate via the Wiser Home app, Amazon Alexa, or Google Assistant.
• Group Control: Open or close all connected roller shutters with one command.
• Scenario Support: Wake-up and bedtime routines, memory function, and scheduled automation.
• Compatible with up to 10 mechanical double push-buttons (up to 50 m in total length).

Technical Specifications

• Power Supply: 230 V AC 50 Hz
• Standby Consumption: Max. 0.3 W
• Load Type: 1000 VA motor at 230 V AC
• Rated Current: 4 A (cos φ = 0.6)
• Communication: Wireless Zigbee (2.4 GHz, 2.5 mW)
• Wiring: Requires neutral (3 wires)
• Dimensions: 43 x 43 x 22 mm

Upgrade your roller shutters with the Wiser Zigbee shutter module and enjoy precise, modern control from anywhere.
