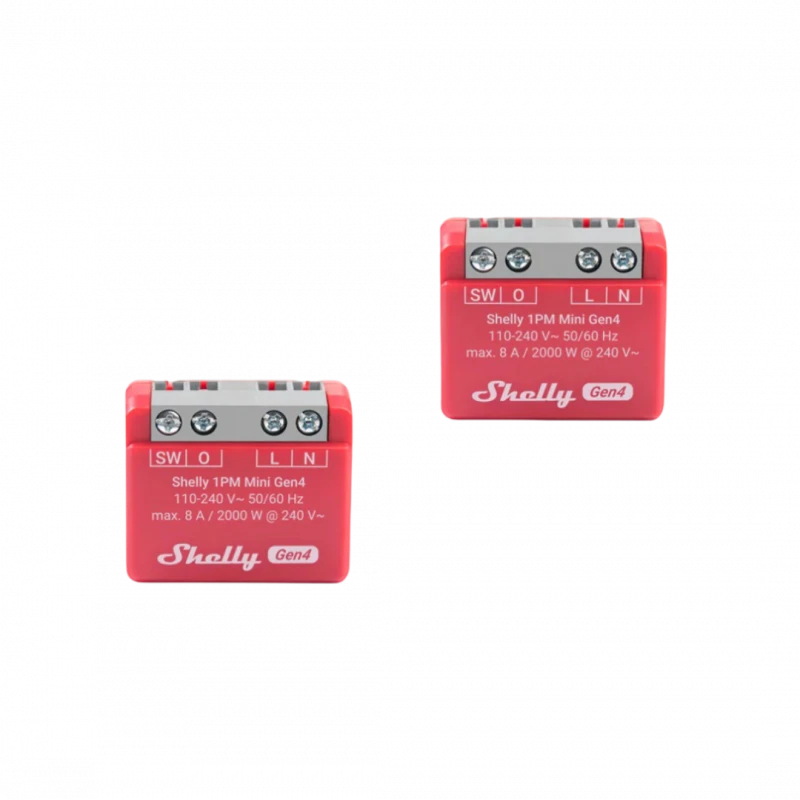

Shelly - 2x Wifi, Zigbee, Matter Module Shelly1PM Mini Gen4

Shelly 1PM Mini Gen4 – Smart Switch with Wi-Fi, Zigbee, Matter & Power Metering

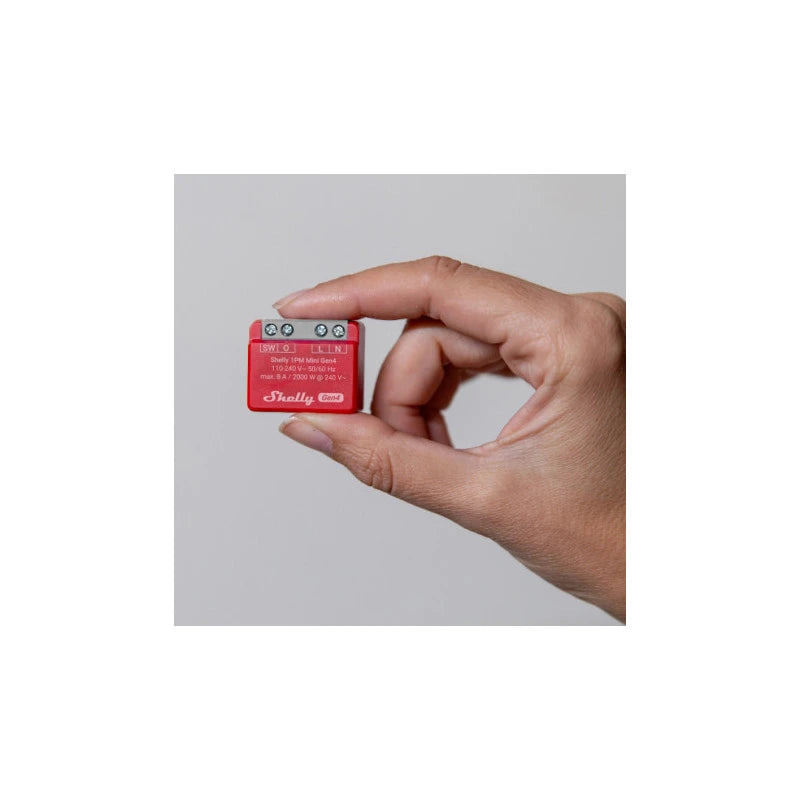

The Shelly 1PM Mini Gen4 is an ultra-compact smart switch designed to automate lighting and appliances up to 8 A. Equipped with real-time power monitoring and multi-protocol connectivity, including Wi-Fi, Zigbee, Bluetooth, and Matter, this micromodule delivers flexibility and reliability without requiring a hub.

Main Features

• Multiprotocol Support: Connect via Wi-Fi, Zigbee 3.0, Bluetooth, or Matter.
• Power Measurement: Monitor energy use in real time with cloud-based analysis.

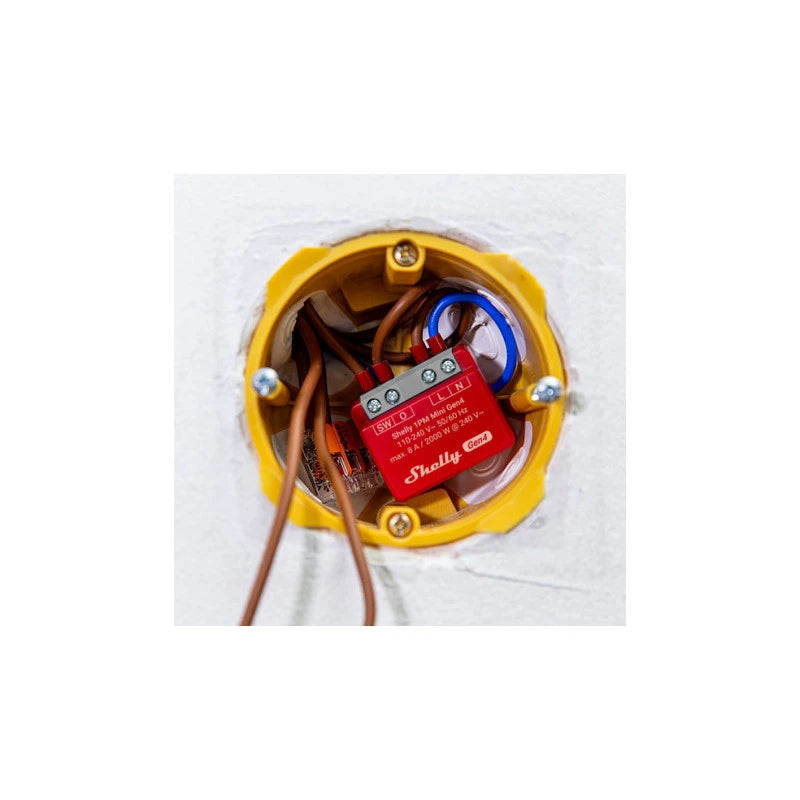

• Compact Installation: Ideal for fitting behind wall switches or power sockets.
• High Load Capacity: Controls devices up to 8 A at 240 V AC.
• Integrated Repeater: Functions as a Wi-Fi and Zigbee repeater for extended range.
• Advanced Protection: Built-in safeguards against overheating, overvoltage, overcurrent, and overpowering.
• Custom Automation: Supports programmable schedules, scenes, and local routines.
• No Hub Needed: Direct control via the Shelly Smart Control app.

Technical Specifications

• Model: Shelly 1PM Mini Gen4
• Type: Smart switch module with energy metering
• Power Supply: 110 – 240 V AC
• Max Load: 8 A / 240 V~
• Relay: NO contact, 1 pole, µ contact
• Dimensions: 29 × 34 × 16 mm
• Weight: 18 g
• Material: Fire-retardant plastic
• Color: Red
• Wireless: Wi-Fi 802.11 b/g/n/ax, Zigbee 3.0, Bluetooth 5.0
• Wi-Fi Range: 30 m (indoors) / 50 m (outdoors)
• Zigbee Range: 100 m (indoors) / 300 m (outdoors)
• Protection: Overheating, overvoltage, overload, overpower
• Operating Temperature: -20°C to 40°C
• Humidity: 30% – 70% RH

Platform & Voice Assistant Compatibility

• Smart Platforms: Home Assistant, Jeedom, Zigbee2MQTT, SmartThings, Tuya, KNX net/IP
• Voice Assistants: Amazon Alexa, Google Home, Apple HomeKit (via Matter)
• Automation: Compatible with IFTTT

Certifications

• CE
• FCC
• RoHS
• TÜV
