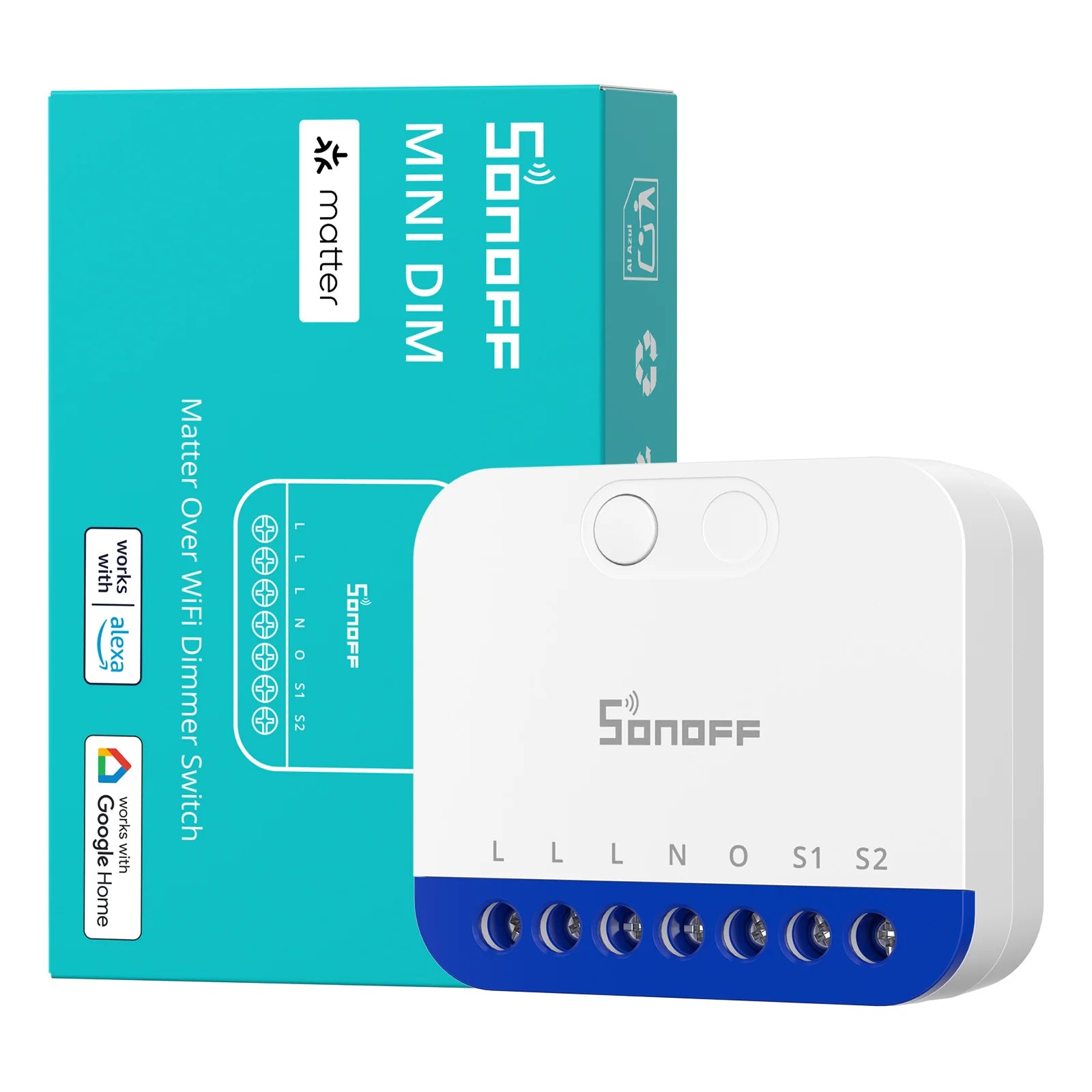

The Sonoff MINI-DIM from the MINI Extreme series is a compact and powerful smart dimmer that transforms your standard wall switch into an intelligent lighting control system. With native Matter support over Wi-Fi, it integrates seamlessly with Apple Home, Google Home, Alexa, SmartThings, and any Matter-compatible platform.

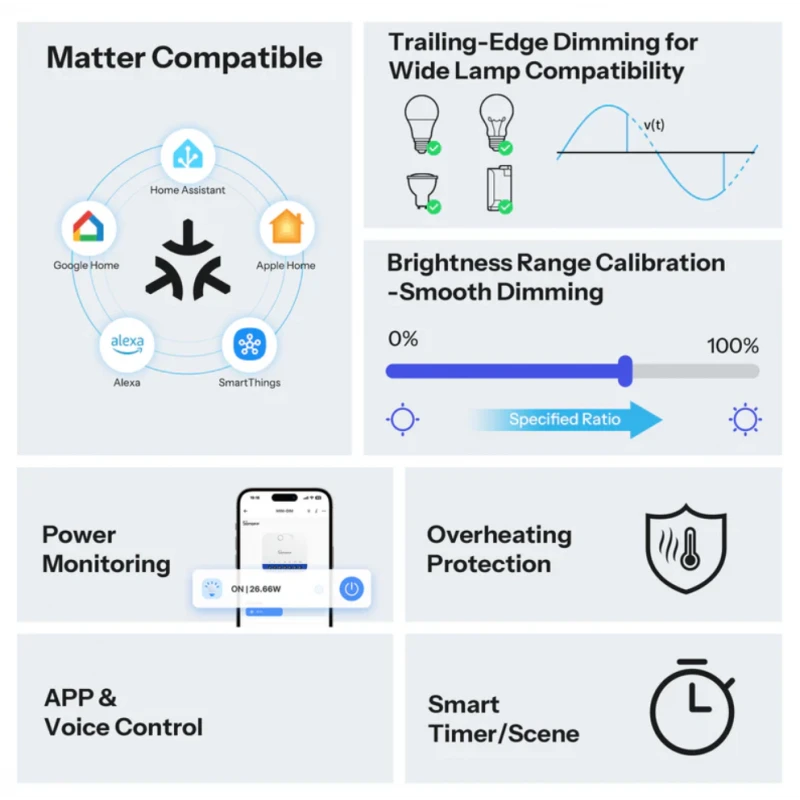

Key Features
Wide lighting compatibility:
Dimmable LEDs up to 200VA
Incandescent and halogen bulbs up to 400W
Dimmable electronic transformers up to 200W
Stable dimming: Downward phase cut technology for flicker-free operation
Manual or auto calibration: Ensures stable performance with all bulb types
Real-time energy monitoring: Track consumption directly in your app
Smart automation: Create timers, loops, and scenes based on your routine

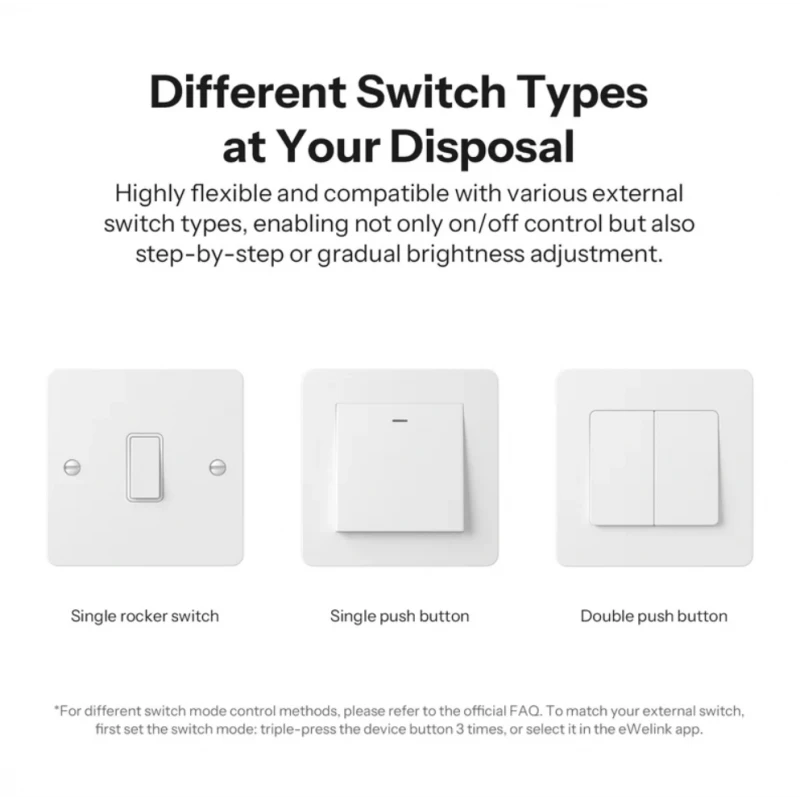

Two-way control support: Works with momentary or toggle switches
Voice control: Compatible with Siri, Alexa, and Google Assistant
Overheat protection: Automatically cuts off power to prevent damage
Technical Specifications – Sonoff MINI-DIM
Series: MINI Extreme
Rated voltage: 220–240 V AC (50 Hz)
Max load: 2 A
Protocols: Matter over Wi-Fi (2.4 GHz)
Material: Flame-retardant PC
Dimensions: 45 × 39.4 × 16.8 mm
Weight: 24.5 g
Operating temperature: -10°C to +40°C

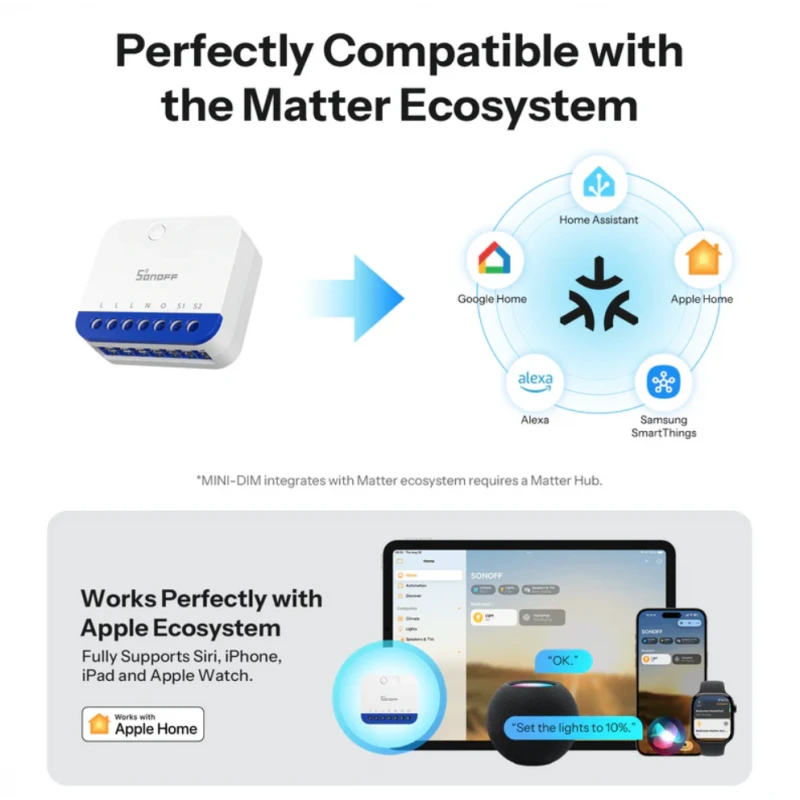

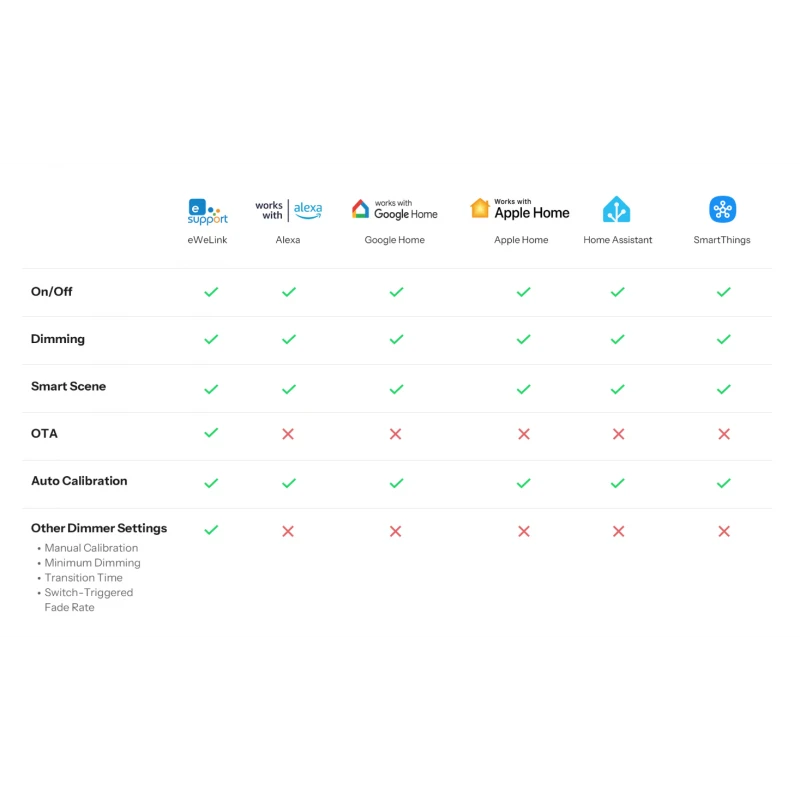

Platform Compatibility
Matter Ecosystems: Requires a Matter Hub
Apple HomeKit (iPhone, Siri, Watch)
Google Home
Amazon Alexa
Samsung SmartThings
Home Assistant
The Sonoff MINI-DIM is ideal for upgrading your lighting setup with advanced dimming, smart automation, and Matter-wide compatibility, all in a module small enough to fit behin
