Sunricher - Zigbee 2-channel relay module 100-240V AC 4 max SR-ZG9041A-2R

Sunricher - Zigbee 2-channel relay module 100-240V AC 4 max SR-ZG9041A-2R

€24,99 EUR
€24,99 EUR
Sale Sold out
Taxes included.
Buy on Domadoo
//

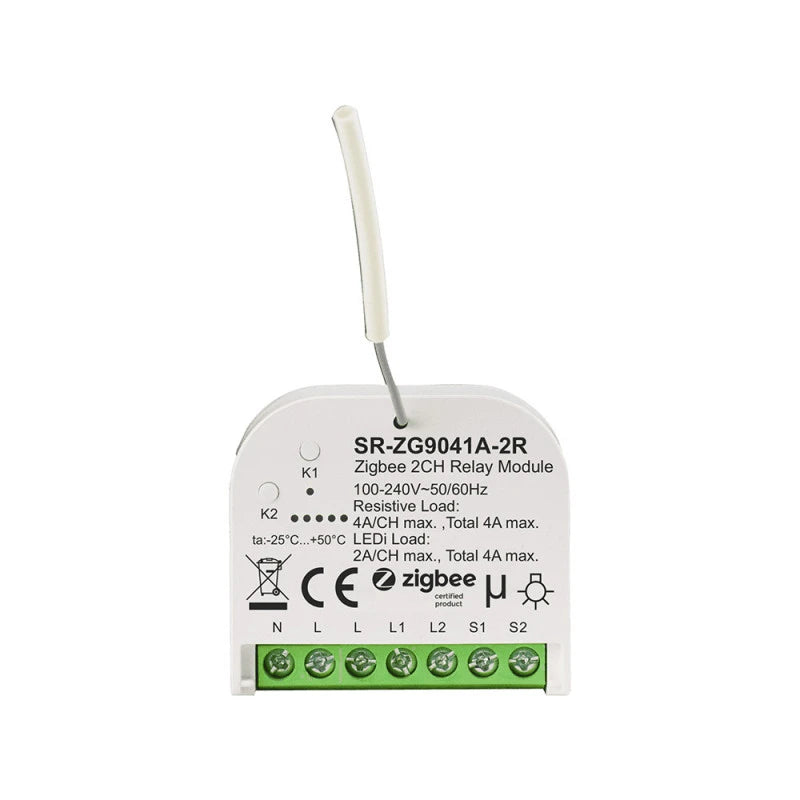

Sunricher ZigBee 2-Channel Smart Relay 100–240Vac SR-ZG9041A-2R

The Sunricher SR-ZG9041A-2R is a compact 2-channel smart relay designed for flush mounting and based on the ZigBee 3.0 protocol. It enables reliable ON/OFF control of electrical loads operating on 100–240Vac, making it ideal for smart home and lighting applications.

Featuring two independently controlled ZigBee endpoints, this relay allows separate management of each channel. It supports Touchlink commissioning and ZigBee Green Power, with the ability to pair up to 20 compatible switches for flexible wireless control.

Smart Control and Flexible Installation

Its compact size (42 × 38 × 16 mm) makes it easy to install in standard wall boxes. The module also supports control via traditional wired switches, including both momentary and toggle types, offering versatile integration into existing electrical setups.

In addition to switching functionality, the device provides active power and energy monitoring, along with built-in overload and overheating protection for enhanced safety and efficiency.

Product Features

  • 2-channel ZigBee relay based on ZigBee 3.0
  • ON/OFF control of connected devices
  • Two independently controlled ZigBee endpoints
  • Touchlink commissioning support
  • ZigBee Green Power compatibility
  • Supports up to 20 ZigBee Green Power switches
  • Control via universal wired switch
  • Independent control using two separate switches
  • Compatible with momentary and toggle switches
  • Active power and energy consumption monitoring
  • Overload protection
  • Overheating protection
  • Compact design for standard wall box installation

    • Compatibility

  • ZigBee 3.0 systems
  • ZigBee Green Power devices
  • Momentary switches
  • Toggle switches

    • Technical Specifications – Sunricher SR-ZG9041A-2R

  • Brand: Sunricher
  • Model: SR-ZG9041A-2R
  • Input voltage: 100–240Vac
  • Output voltage: 100–240Vac
  • Maximum output current: 5A
  • Input signal: ZigBee
  • Operating temperature: -40°C to +125°C (±0.1°C)
  • Dimensions (L × W × H): 42 × 38 × 16 mm
  • Unit: Single item
  • Warranty: 5 years
  • Origin: Guangdong, China
  • Services: Lighting and electrical design, project installation
