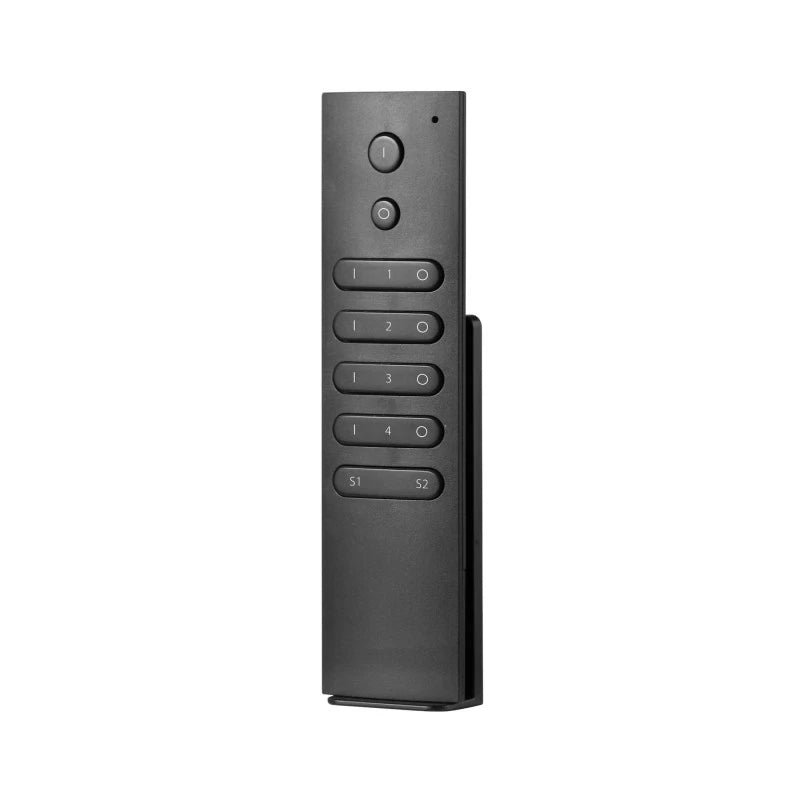

Sunricher - Zigbee 3.0 remote control 4-zone

Sunricher SR-ZG9001K12-DIM-Z4 – Zigbee 3.0 Remote Control with 4 Groups

The SR-ZG9001K12-DIM-Z4 is a Zigbee 3.0 remote control designed for easy and flexible management of your ON/OFF modules and dimmable lighting. With support for 4 independent groups and scene recall, it allows intuitive, centralized control of up to 30 devices per group.

Equipped with a magnetic wall holder, this compact and battery-powered controller is easy to install and always within reach. You can manage lighting directly with group buttons or use the All On / All Off buttons for complete control. It also supports Touchlink commissioning for quick pairing without a hub.

Main Features

• 4 control groups: Each can manage up to 30 Zigbee devices
• Group and global control: Dedicated buttons for each group + All On / All Off
• Scene management: Save and recall 2 scenes per group
• Touchlink support: Pair devices directly without a coordinator
• Search & link mode: Easy integration into Zigbee networks
• Magnetic wall mount: For easy placement and removal
• Zigbee mesh network: Ensures reliable communication and battery efficiency

Technical Specifications

• Model: SR-ZG9001K12-DIM-Z4
• Power supply: 1 × CR2032 button cell (3 VDC)
• Wireless protocol: Zigbee 3.0
• Frequency: 2.4 GHz
• Control range: Up to 30 meters (open field)
• Dimming range: 0.1% – 100%
• Dimensions: 150 × 38.6 × 12 mm
• Protection rating: IP20 (indoor use only)
• Compatible systems: Zigbee gateways, smart home hubs, universal Zigbee dimmable lighting
