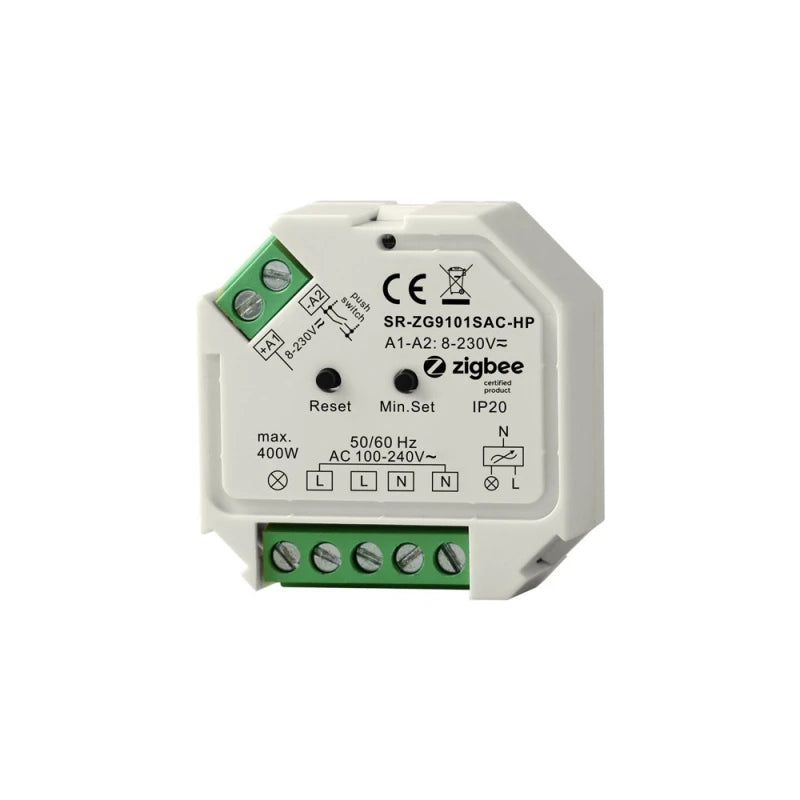

Sunricher - Zigbee 3.0 In wall smart dimmer 3-wire SR-ZG9101SAC-HP

SR-ZG9101SAC-HP Zigbee 3.0 Phase-Cut Dimmer Module

The SR-ZG9101SAC-HP is a compact and advanced Zigbee phase-cut dimmer designed for precise brightness control of various lighting types. Operating on 100–240VAC and supporting up to 400W output, it’s ideal for dimmable LEDs, incandescent bulbs, halogens, and low-voltage lighting with electronic transformers. Featuring trailing edge dimming, it ensures smooth and flicker-free light adjustment.

Thanks to its Zigbee 3.0 protocol, the dimmer integrates seamlessly into most Zigbee ecosystems and can pair directly with Zigbee remotes or be included in a Zigbee gateway network. It also supports Zigbee Green Power, enabling direct control without a coordinator.

Features:

• AC phase-cut dimmer based on Zigbee 3.0
• 1 channel output, up to 400W
• Trailing edge dimming for smooth control
• Minimum dimming level and startup brightness settings
• Soft start function and smart light source detection
• Compatible with resistive, capacitive, and inductive loads
• Works with momentary (push-button) switches only
• Touchlink support: Pair directly with compatible Zigbee remotes
• Supports Find & Bind and Zigbee Green Power (up to 20 remotes)
• Can work with or without a Zigbee coordinator
• Safe, screw-terminal input/output connections
• Compact design fits standard wall boxes

Technical Specifications:

• Power Supply: 100–240V AC
• Output Current: Max 1.8A
• Dimmable LED Lamps / Drivers: Max 200W
• Incandescent / HV Halogen Lamps: Max 400W
• LV Halogen (with electronic transformer): Max 200W
• Radio Frequency: 2.4GHz (Zigbee)
• Wireless Range: Up to 30m (indoor)
• Protection Rating: IP20
• Dimensions: 45.5 × 45 × 20.3 mm

In the Box:

• 1 × SR-ZG9101SAC-HP Dimmer Module
• 1 × User Manual
