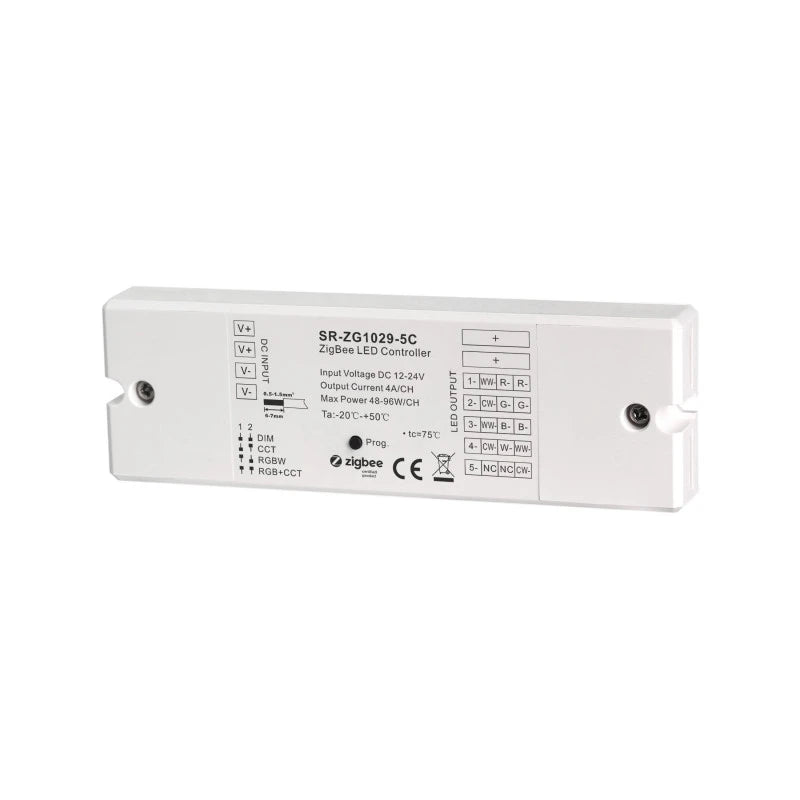

Sunricher - Zigbee LED controller RGBW 4 in 1 SR-ZG1029-5C

SR-ZG1029-5C Zigbee 3.0 4-in-1 Constant Voltage LED Controller

The SR-ZG1029-5C is a versatile and powerful constant voltage LED controller compatible with Zigbee 3.0. It combines 4 control modes (DIM, CCT, RGBW, and RGB + CCT) into a single 5-channel device, making it an ideal solution for controlling a wide range of LED lighting setups in smart home environments.

4-in-1 LED Control

This all-in-one controller supports multiple lighting types: single color (DIM), dual white (CCT), RGBW, and RGB + CCT, all through one device. It enables on/off control, dimming, color temperature adjustment, and full color control for connected LED strips or fixtures.

Fully Zigbee 3.0 Compatible

Built on the latest Zigbee 3.0 protocol, the SR-ZG1029-5C ensures wide compatibility with Zigbee hubs and gateways, such as Amazon Echo, Philips Hue Bridge, SmartThings, and more. It also supports Touchlink pairing with up to 30 Zigbee remote controls and Zigbee Green Power, allowing direct pairing with up to 20 battery-free Zigbee Green Power remotes without requiring a hub.

Flexible Setup and Remote Control

• Supports search and link pairing with Zigbee remotes
• Touchlink pairing without coordinator required
• Compatible with most Zigbee 3.0 gateways and remotes
• Ideal for smart lighting scenes, automations, and remote operation

High Power Output and Performance

• Constant voltage input: 12–24 VDC
• Output current: 4A per channel
• Total output power: up to 480 W (96 W × 5 channels)

Technical Specifications

• Model: SR-ZG1029-5C
• Power Input: 12–24 V DC
• Output Channels: 5 (DIM, CCT, RGBW, RGB + CCT)
• Output Current: 4A max per channel
• Output Power: 48–96 W per channel (up to 480 W total)
• Wireless Protocol: Zigbee 3.0, Zigbee Green Power
• Radio Frequency: 2.4 GHz
• Control Range: Up to 30 meters (open area)
• Dimensions: 145 × 46.5 × 16 mm
• Protection Rating: IP20 (indoor use only)

Key Features

• 4-in-1 universal LED control (DIM, CCT, RGBW, RGB + CCT)
• Fully compatible with Zigbee 3.0 hubs and platforms
• Touchlink and Zigbee Green Power support for hub-free control
• High output: up to 4A per channel, 480W max total
• Compact design for easy installation
