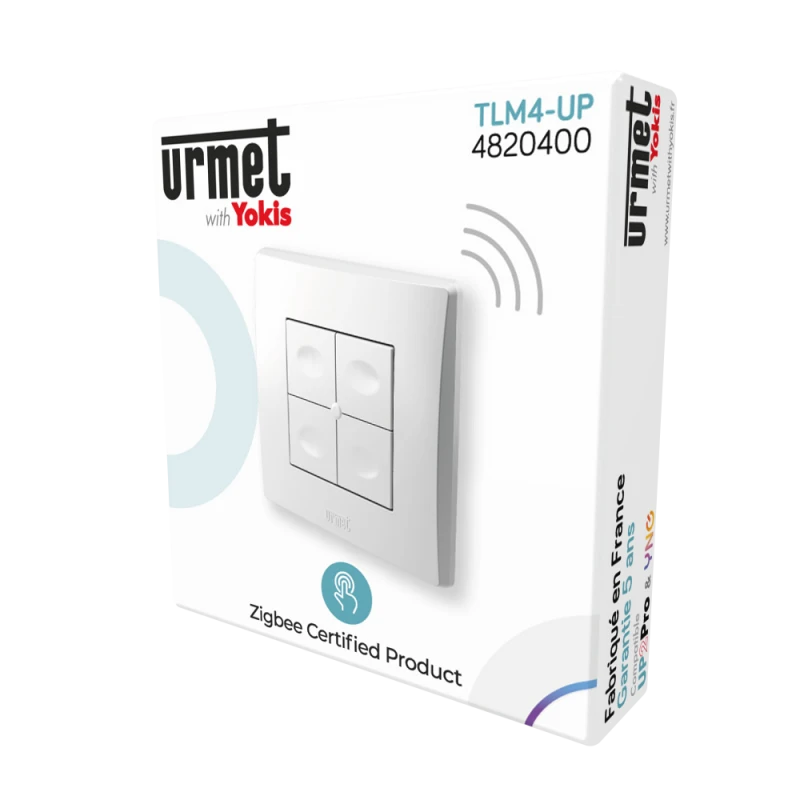

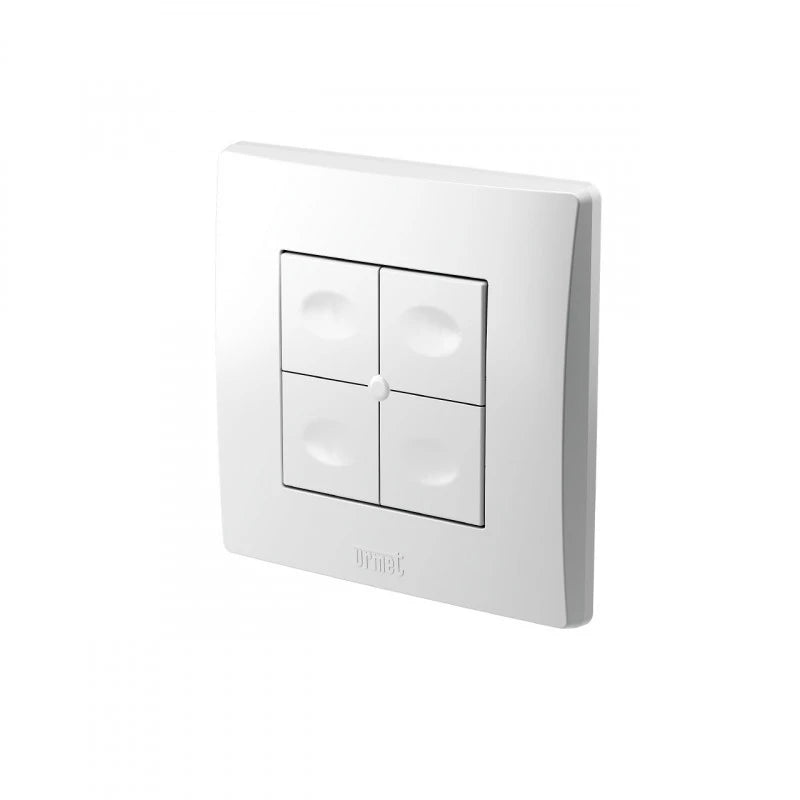

TLM4-UP – 4-Button Zigbee 3.0 Wall Switch

The TLM4-UP is a sleek and compact Zigbee 3.0 wall-mounted remote control featuring 4 programmable buttons, ideal for controlling multiple smart devices or triggering home automation scenes. Whether used directly or via a Zigbee-compatible hub like Jeedom, Home Assistant, or Zigbee2MQTT, it provides a powerful and flexible interface for smart home control.

Main Features

• 4-channel Zigbee control: operate lights, shutters, heating, or scenes
• Wide compatibility: works with UP receivers, Zigbee hubs, and the YnO mobile app
• Long-range: up to 250 m in open field thanks to Zigbee 3.0 Mesh
• Easy installation: adhesive or screw-mounting on a 60 mm flush-mounted box
• Battery-powered: CR2032 coin cell for 5+ years of autonomy

Technical Specifications

• Model: TLM4-UP
• Channels: 4
• Mounting: adhesive or screws (standard flush box 60 mm)
• Power supply: 1 × CR2032 battery (autonomy > 5 years)
• Wireless protocol: Zigbee 3.0 (Mesh network)
• Range: up to 250 m (open field)
• Dimensions: 80 × 80 × 11.6 mm
• Protection rating: IP20
• Certifications: CE
• Origin: Made in France
• Warranty: 5 years

Compatibility

• UP receivers
• YnO (Yokis app)
• Jeedom
• Home Assistant
• Zigbee2MQTT
