Woow - Zigbee 3.0 Water Sprinkler R7060

Woox R7060 Zigbee Smart Irrigation Controller

The Woox R7060 is a Zigbee-enabled smart watering controller that lets you manage your garden irrigation with precision and ease. Whether you're at home or away, you can control the water flow remotely through a Zigbee-compatible smart home gateway or directly using the onboard control buttons. It's the ideal solution for worry-free garden maintenance.

Key Features

• Remote Control: Start or stop watering anytime via your smartphone or tablet.
• Zigbee 3.0 compatible: Works with most Zigbee home automation hubs.

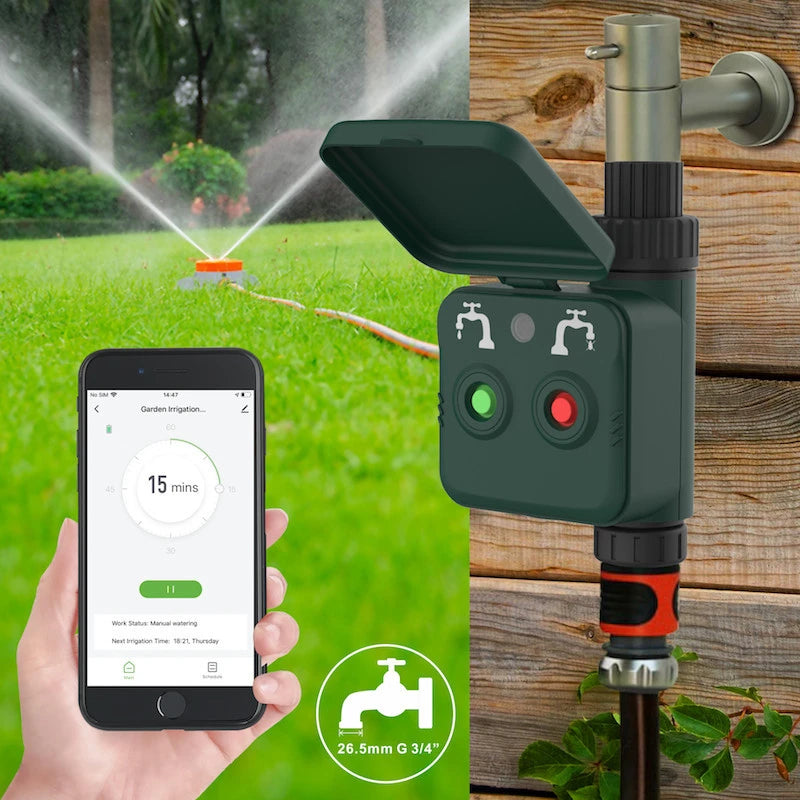

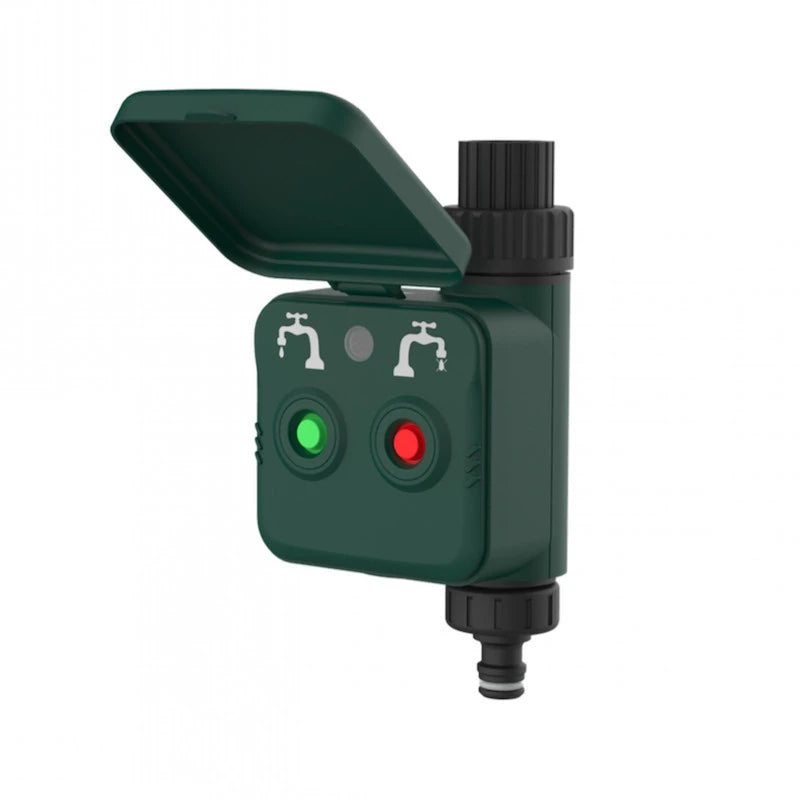

• Manual operation: Control directly using the built-in green (start) and red (stop) buttons.
• Battery-powered: Runs on 4x AA batteries (included) with 6 months of battery life.
• Waterproof design: IP44-rated, suitable for outdoor use.
• Flexible installation: Includes 26.5 mm (G 3/4") connection and quick-release adapter for 1/2" connectors.
• Low battery alert: Get notified via app when battery level is low.

Technical Specifications

• Wireless Protocol: ZigBee 3.0 (IEEE 802.15.4)
• Zigbee Module: TYZS3
• Frequency: 2.400 – 2.483 GHz
• Transmission Power: 250 kbps / 16 channels
• Transmission Range: 10–30 m indoors, 30–50 m outdoors
• Operating Voltage: DC 6V (4x AA 1.5V batteries – included)
• Water Pressure Range: 0.2 ~ 0.7 MPa
• Operating Temperature: 0°C to +45°C
• Operating Humidity: 0% – 95% RH
• Waterproof Rating: IP44
• Dimensions: 190.5 × 99.6 × 77 mm (with connector)
• Weight: 355 g
• Standby Current: 20 μA
• Working Current: 270 mA (30 ms)

Package Contents

• Woox R7060 Zigbee Irrigation Controller
• 4x AA batteries (pre-installed)
• Quick-release hose connector
• User manual
