Zooz ZEN54 - 0-10V Z-Wave+ 700 Micromodule Dimmer

Zooz ZEN54 Z-Wave 0-10V Dimmer Module

The Zooz ZEN54 is a compact Z-Wave dimmer designed to provide precise control of 0-10V LED lighting systems. Ideal for commercial and residential applications, it enables intelligent lighting automation with smooth dimming and flexible configuration.

Precise 0-10V Lighting Control

This module allows you to adjust the brightness of compatible LED drivers with accuracy, ensuring optimal lighting levels in spaces such as offices, restaurants, or warehouses. It supports smooth dimming with instant status feedback.

Smart Automation and Scheduling

Create schedules and automation rules based on time, occupancy, or ambient light. Lights can dim automatically in the evening or switch off when not needed, improving comfort and energy efficiency.

Flexible Installation

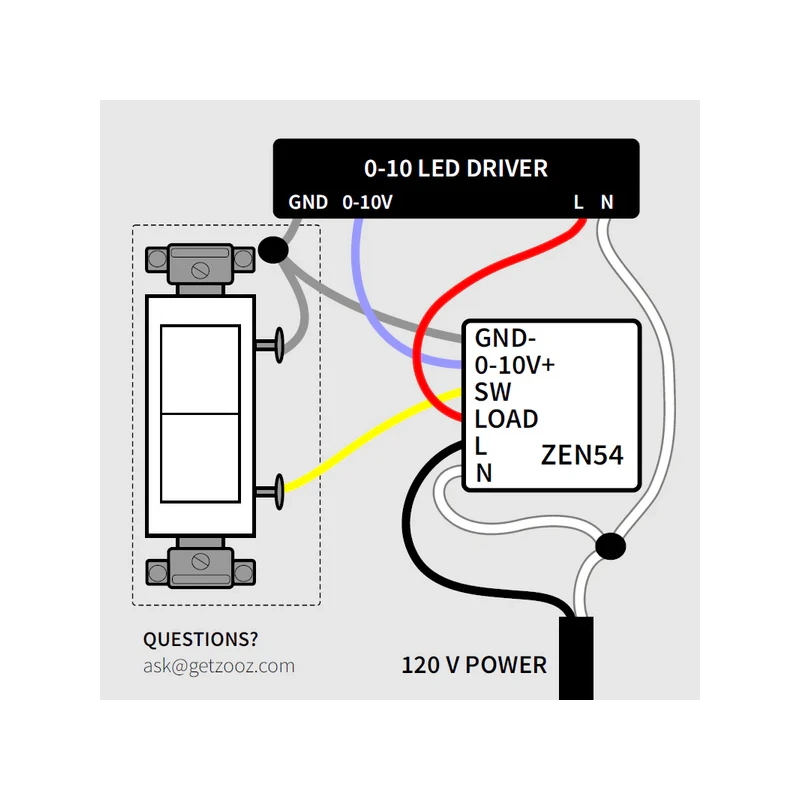

The ZEN54 installs between your 0-10V LED driver and a wall switch. It requires a power line and neutral connection and can be used with a momentary push-button switch for manual control.

Integrated Relay for Full Control

The built-in relay allows complete power cut-off to the LED driver, which is particularly useful for systems that do not fully switch off at minimum dim levels.

Advanced Configuration Options

Customise minimum and maximum brightness levels, as well as dimming speed, to suit your environment and preferences.

Z-Wave Performance and Integration

Equipped with a Z-Wave 700 series chip, the module ensures reliable communication and extended range. It also acts as a repeater to strengthen your Z-Wave network.

Key Features

• 0-10V dimming control for LED lighting systems
• Smooth brightness adjustment with instant feedback
• Compatible with momentary wall switches
• Integrated relay for full ON/OFF control
• Advanced configuration of brightness and dimming speed
• Z-Wave 700 series for improved range and performance
• Acts as a Z-Wave repeater
• Ideal for commercial and professional lighting setups

Technical Specifications

• Power supply: 120–240 V AC, 50/60 Hz
• Maximum load: 4 A (960 W at 240 V)
• Frequency: 868 MHz (EU)
• Range: up to 90 m (line of sight)
• Dimensions: 3.81 × 3.55 × 1.77 cm
• Operating temperature: 0°C to 40°C
• Installation: indoor use only
