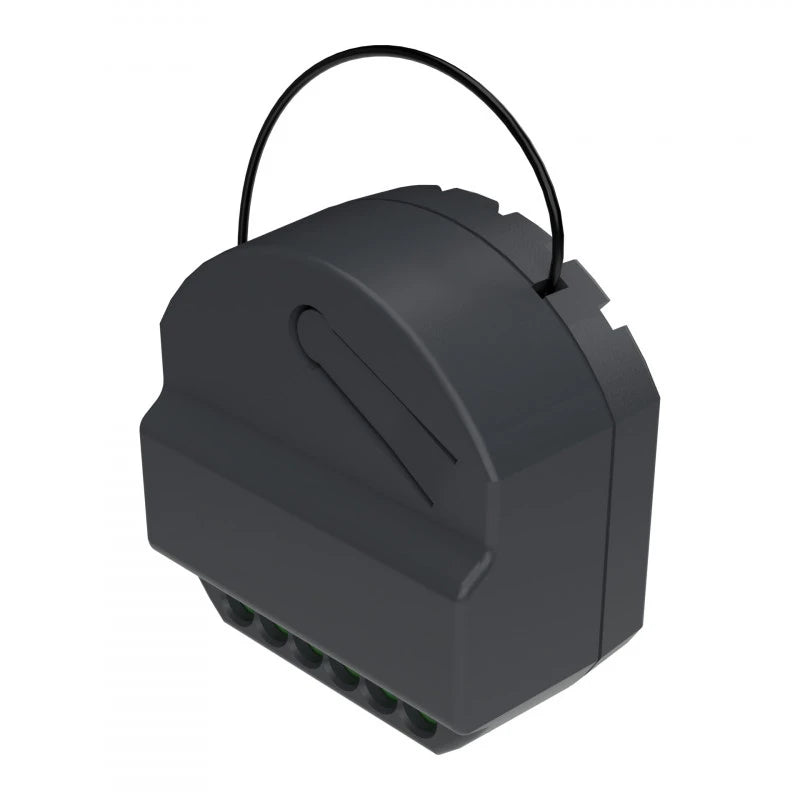

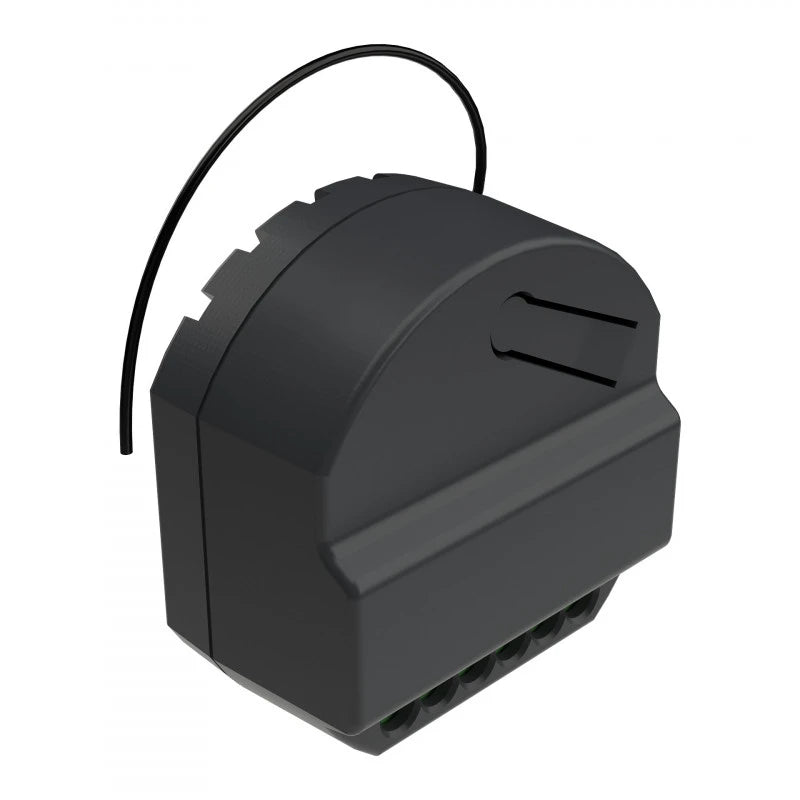

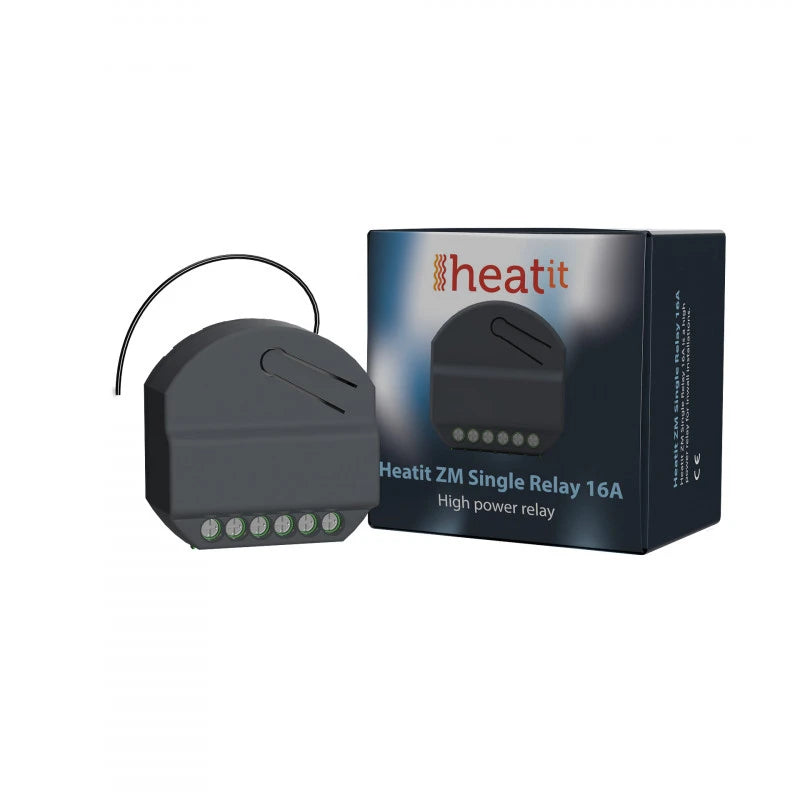

The Heatit ZM Single Relay is a high-power Z-Wave module designed for flush-mounted installations. It enables control of connected electrical devices either through a Z-Wave network or via a wired wall switch, offering flexibility for both smart and traditional setups.
Equipped with a 16A relay, the module supports loads up to 3600W, making it suitable for a wide range of applications such as lighting, heating, or appliance control. Its compact design allows easy installation behind switches or within wall boxes.
The device includes built-in power metering, providing real-time monitoring of energy consumption. This allows users to track usage and optimize energy efficiency across their home.

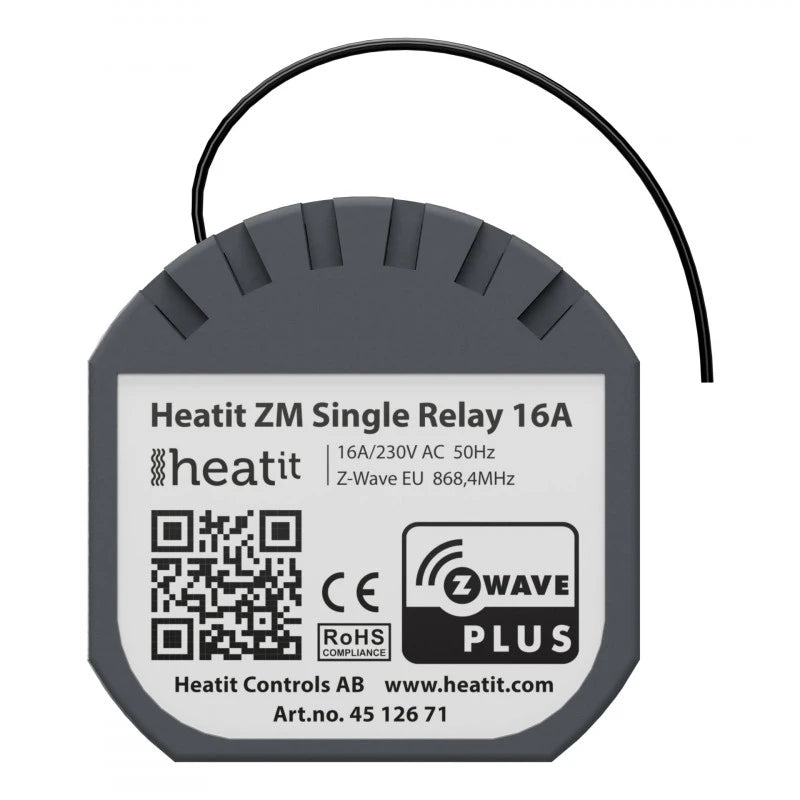

With SmartStart technology, the module can be quickly added to a compatible Z-Wave gateway by simply scanning its QR code. Once powered, it is automatically included in the network, simplifying installation.
The Heatit ZM Single Relay also supports scene controller functionality, enabling advanced automation scenarios. OTA firmware updates ensure long-term compatibility, while multiple encryption modes provide secure communication within the network.
Functions
High-power relay for flush-mounted installation
Remote and manual control via Z-Wave or wired switch
Maximum load: 16A / 3600W
Power consumption monitoring
SmartStart for quick inclusion
Scene controller functionality
OTA firmware updates
Supports S0 and S2 security encryption modes
Technical Specifications
Protocol: Z-Wave Plus (868.4 MHz)
Chip: Z-Wave 700 Series
Rated voltage: 230 V, 50/60 Hz
Maximum load: 16 A / 3600 W
Power consumption: < 1 W
Operating temperature: 5°C to 40°C
Range: up to 50 m (depending on environment)
IP rating: IP20

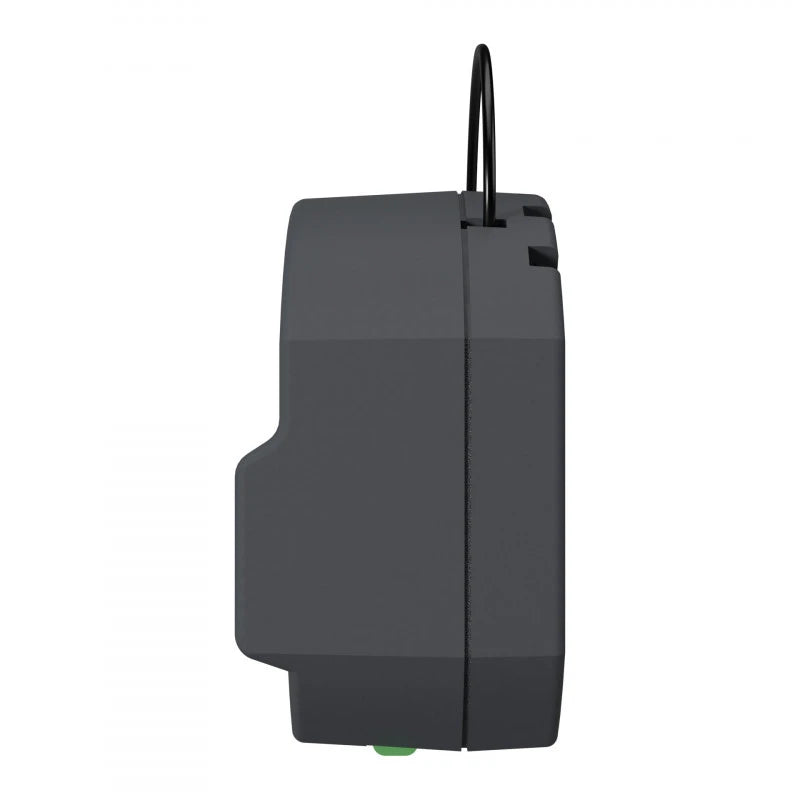

Dimensions: 46 x 45 x 25 mm
Certifications: Z-Wave Plus V2, CE, EN standards, RoHS, WEEE
