Shelly - Z-Wave Long Range 3-Channel DIN Rail Module

SHELLY Wave Pro 3 LR Z-Wave 800 DIN Rail Module

The Shelly Wave Pro 3 LR is a professional-grade 3-channel Z-Wave relay designed for advanced automation of lighting and electrical systems. With dry contacts, DIN rail mounting, and Z-Wave Long Range support, it delivers reliable, secure, and scalable control for demanding installations.

3-Channel Control for Maximum Flexibility

This module features three independent channels, each supporting up to 16 A, with a total capacity of 48 A. It allows you to control multiple circuits simultaneously, making it ideal for complex automation setups.

Dry Contact for Universal Applications

Thanks to dry contact outputs, the device can safely control a wide range of electrical equipment regardless of voltage, ensuring compatibility with various systems and installations.

Z-Wave 800 and Long Range Connectivity

Powered by the Z-Wave 800 Series chip, the module supports both mesh networking and Z-Wave Long Range. It offers extended communication up to 1 km in open field, ensuring stable performance even in large buildings or industrial environments.

Professional DIN Rail Installation

Designed for installation on a standard DIN rail, the module is perfect for electrical panels and professional setups. Its robust design ensures easy integration and long-term reliability.

Advanced Automation and Control Options

Each channel can be controlled via switches or push buttons with multiple interaction modes (single press, double press, hold). It also supports direct Z-Wave associations for fast communication with other devices.

Energy Efficient and Secure

With low power consumption (< 0.3 W), the module is energy-efficient. It features S2 security with two-factor authentication and supports OTA updates for continuous improvements.

Enhanced Safety Features

The device includes overheating protection to ensure safe operation even under heavy loads, making it suitable for professional environments.

Key Features

• 3 independent channels (16 A each, 48 A total)
• Dry contact outputs for universal control
• Z-Wave 800 series with Long Range support
• Range up to 1 km (open field)
• DIN rail mounting for professional installation
• SmartStart pairing and OTA updates
• S2 security with 2FA authentication
• Low power consumption (< 0.3 W)
• Supports switches and push buttons
• Direct Z-Wave association support

Technical Specifications

• Power supply: 110–240 V AC, 50/60 Hz
• Maximum AC load: 16 A per channel (48 A total)
• Maximum DC load: 16 A per channel (30 V DC, 48 A total)
• Power consumption: < 0.3 W
• Frequencies: 864 MHz (ZWLR), 868.4 MHz (Z-Wave Plus)
• Range: up to 40 m indoors (mesh), up to 1000 m outdoors (ZWLR)
• CPU: Z-Wave S800
• Dimensions: 96 × 53 × 59 mm
• Weight: 150 g
• Operating temperature: -20°C to 40°C

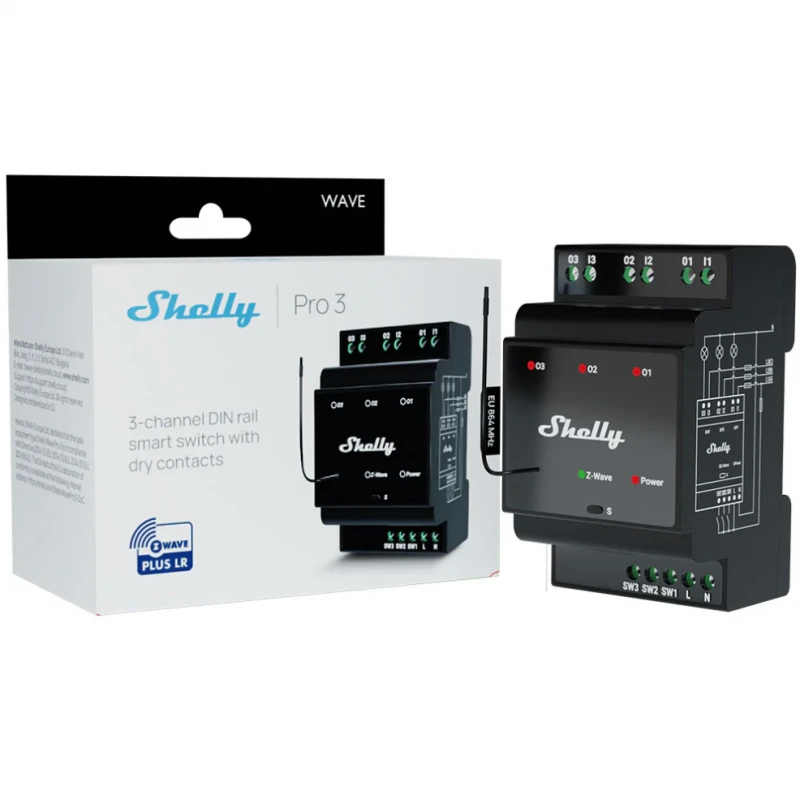

Package Contents

• 1 × Shelly Wave Pro 3 LR module
• 1 × Installation guide
• 1 × Warranty card
