Zooz ZEN17 - Z-Wave+ 800 module with 2 dry contact outputs + 2 inputs for sensors or switches

Zooz ZEN17 Universal Relay Z-Wave 800

The Zooz ZEN17 is a versatile universal relay featuring two inputs and two outputs, designed to control and monitor a wide range of electrical devices. With dry-contact technology and Z-Wave 800 integration, it offers flexible automation for advanced smart home setups.

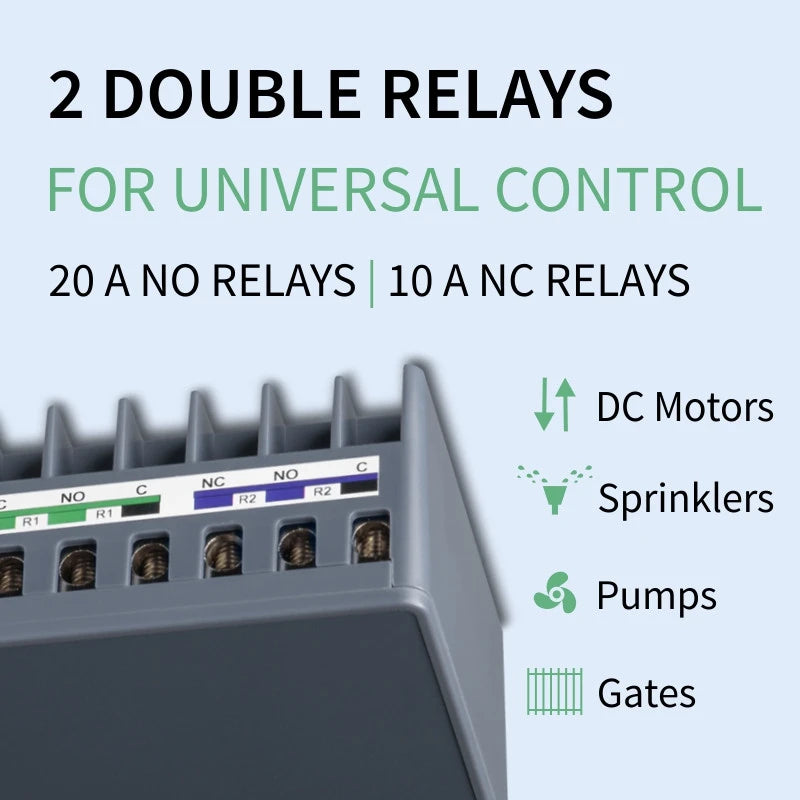

Dual Outputs for Advanced Control

The module includes two independent dry-contact relays, allowing control of loads between 0 and 240 V. Each output can be configured as normally open (NO) or normally closed (NC), making it suitable for motors, pumps, garage doors, gates, and HVAC systems.

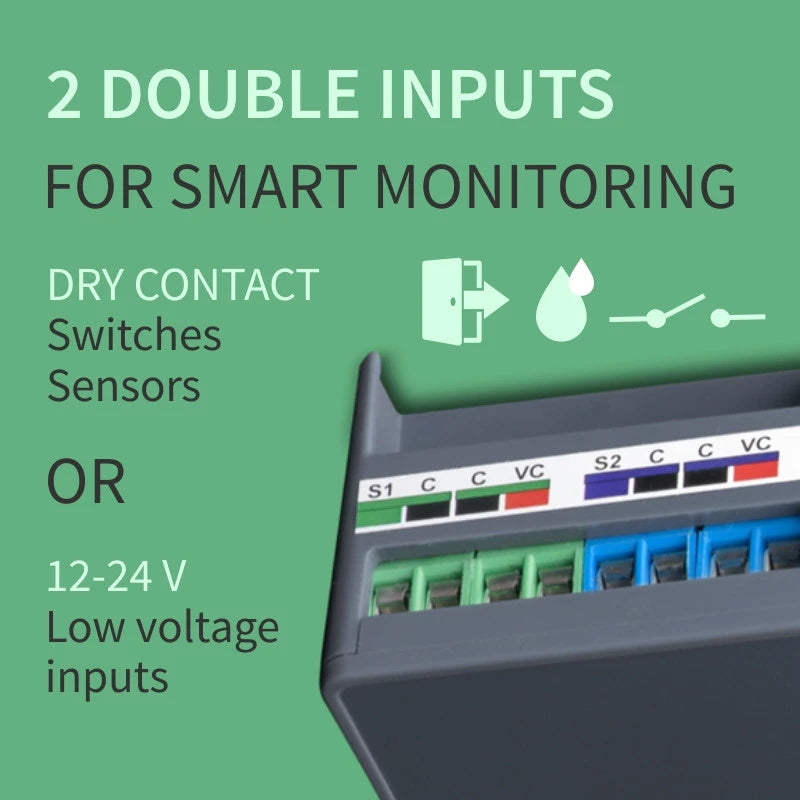

Dual Inputs for Monitoring and Automation

Equipped with two intelligent inputs, the ZEN17 can monitor dry-contact sensors, low-voltage signals, or analog devices. These inputs can be used to trigger actions or function independently for monitoring purposes within your Z-Wave system.

Flexible Power Options

The relay can be powered using 12–24 V AC/DC or via a USB-C connection, offering installation flexibility across different environments and use cases.

Wide Range of Applications

Ideal for automating garage doors, motorized blinds, pumps, or irrigation systems, the ZEN17 adapts to various scenarios. It can also manage reverse-polarity motors or be used for HVAC automation and energy optimisation.

Smart Automation and Control

Control connected devices via your Z-Wave hub or optional wall switches. Integrated timers simplify automation, while the ability to separate inputs from outputs allows advanced custom configurations.

Z-Wave 800 Performance and Security

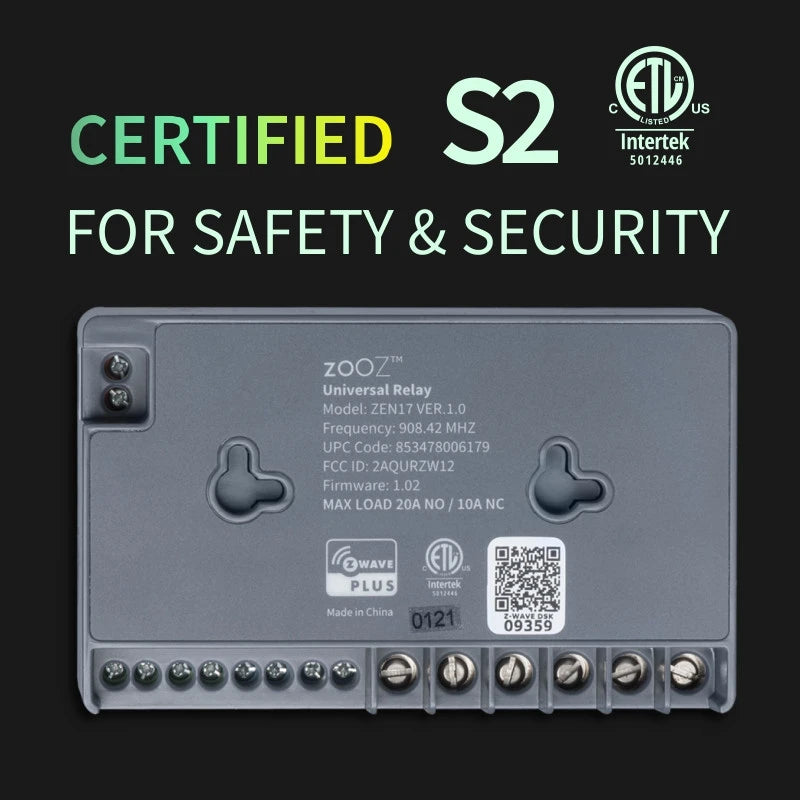

Featuring the latest Z-Wave 800 chip, the module ensures faster communication, improved range, and reliable operation. It supports S2 security and SmartStart for secure and easy integration.

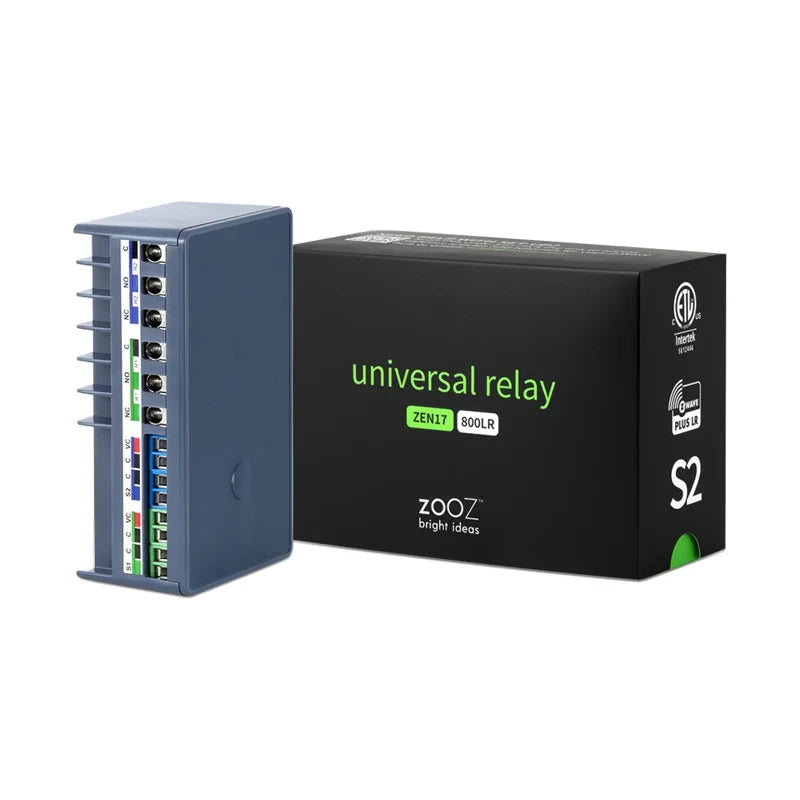

Compact and Practical Design

The device is designed for wall mounting with a clean and minimal form factor, making it suitable for discreet installation in various setups.

Key Features

• 2 dry-contact outputs (NO/NC configurable)
• Controls loads up to 20 A (NO) or 10 A (NC)
• 2 inputs for sensors or switches
• Z-Wave 800 series with improved range
• SmartStart pairing and S2 security
• Integrated timers for automation
• Works with DC motors, pumps, gates, HVAC systems
• Powered by 12–24 V or USB-C
• Acts as a Z-Wave repeater

Technical Specifications

• Power supply: 12–24 V AC/DC or USB-C
• Maximum load: 20 A (NO), 10 A (NC)
• Frequency: 868.42 MHz
• Range: up to 100 m (open field)
• Operating temperature: 0°C to 40°C
• Dimensions: 10.2 × 6.35 × 3.8 cm
• Installation: indoor use
